Introduction

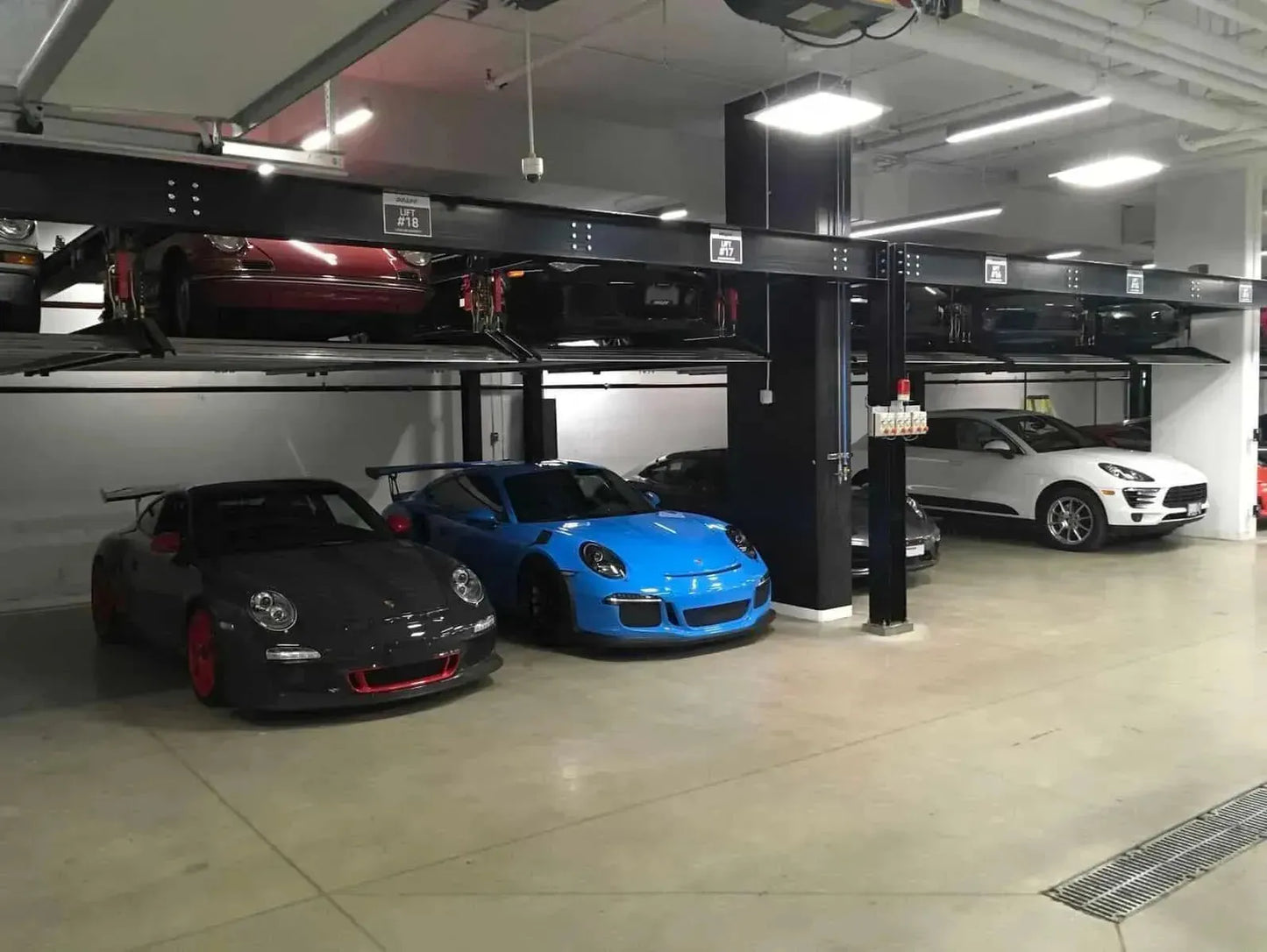

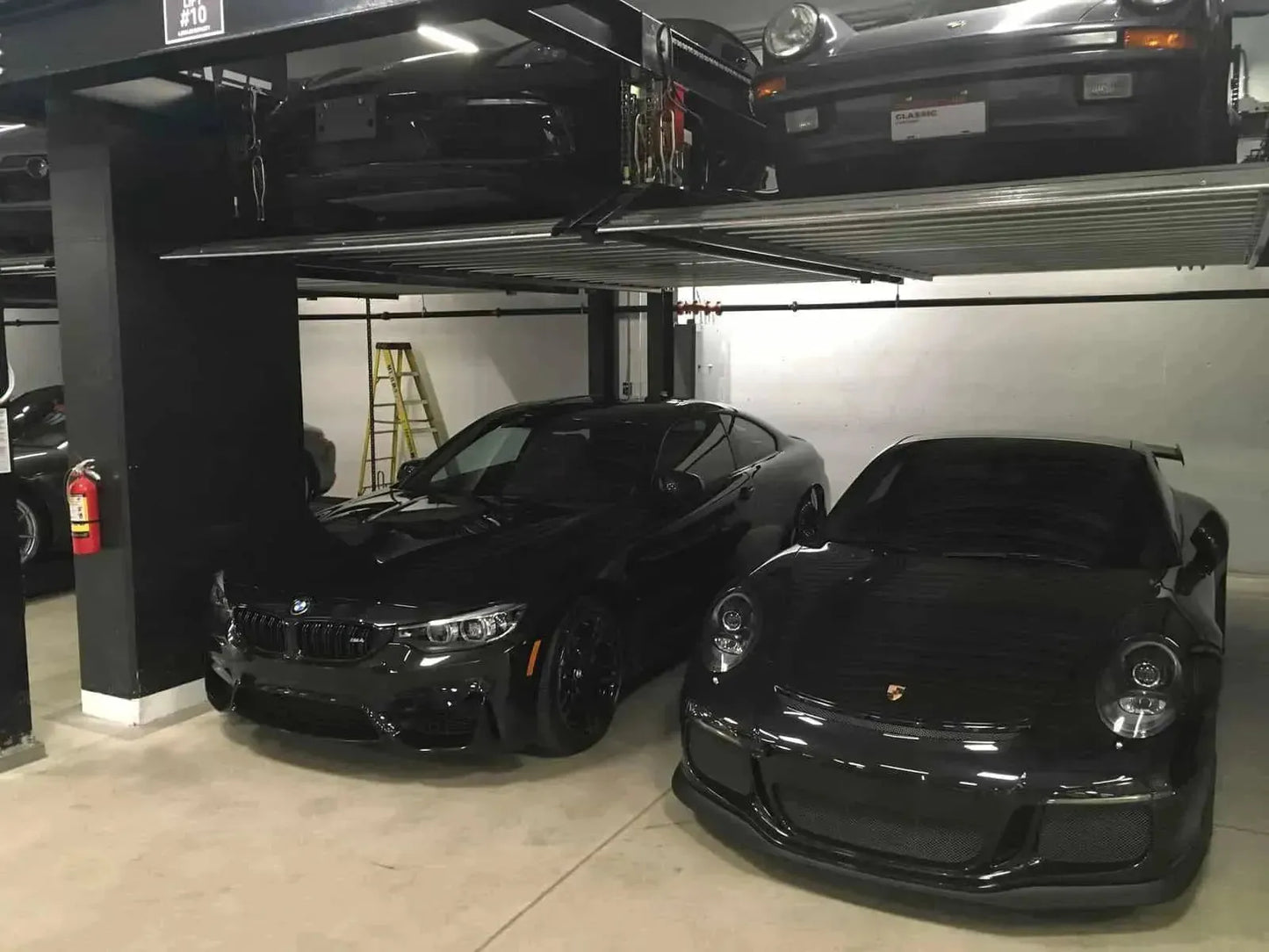

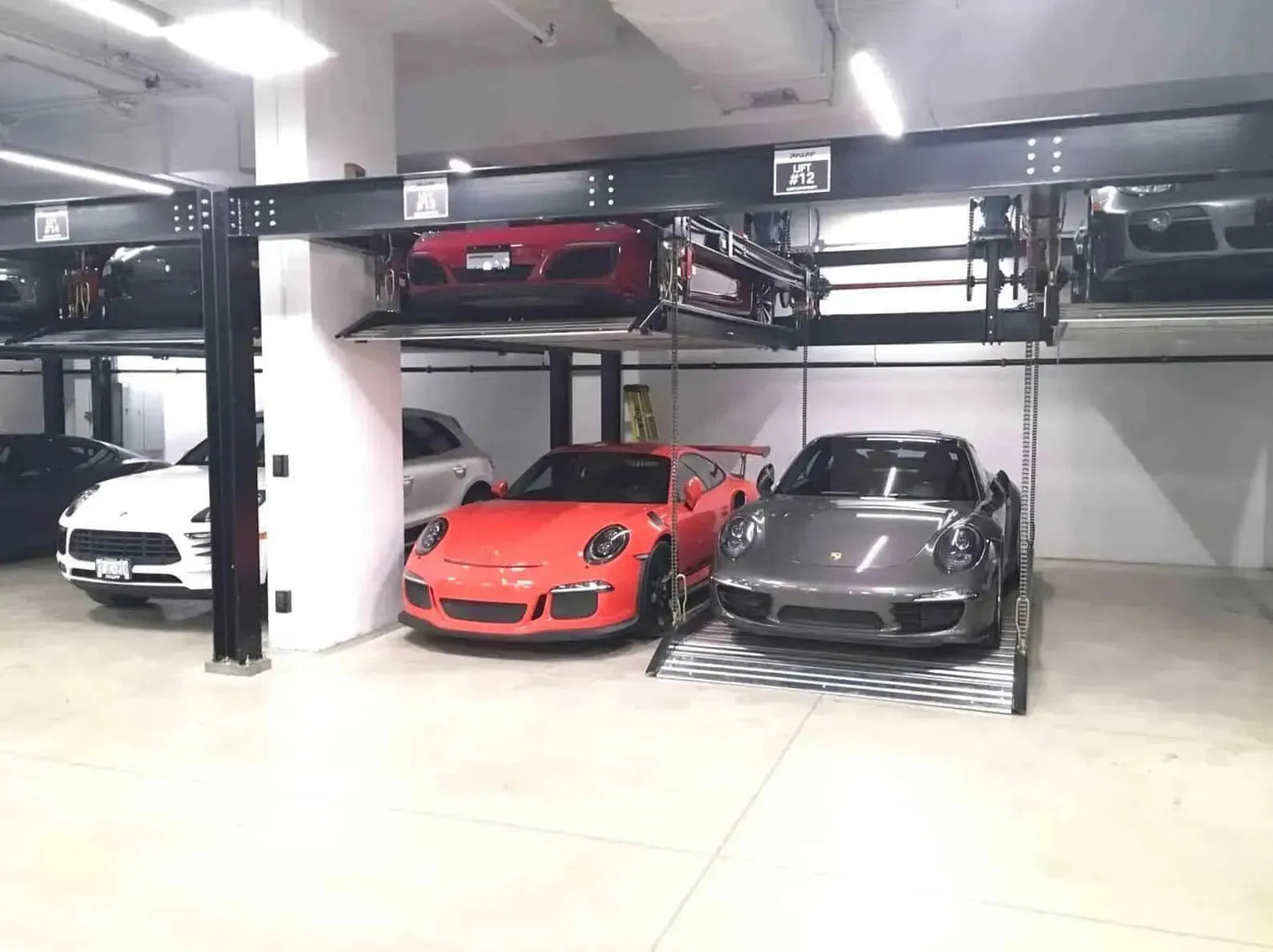

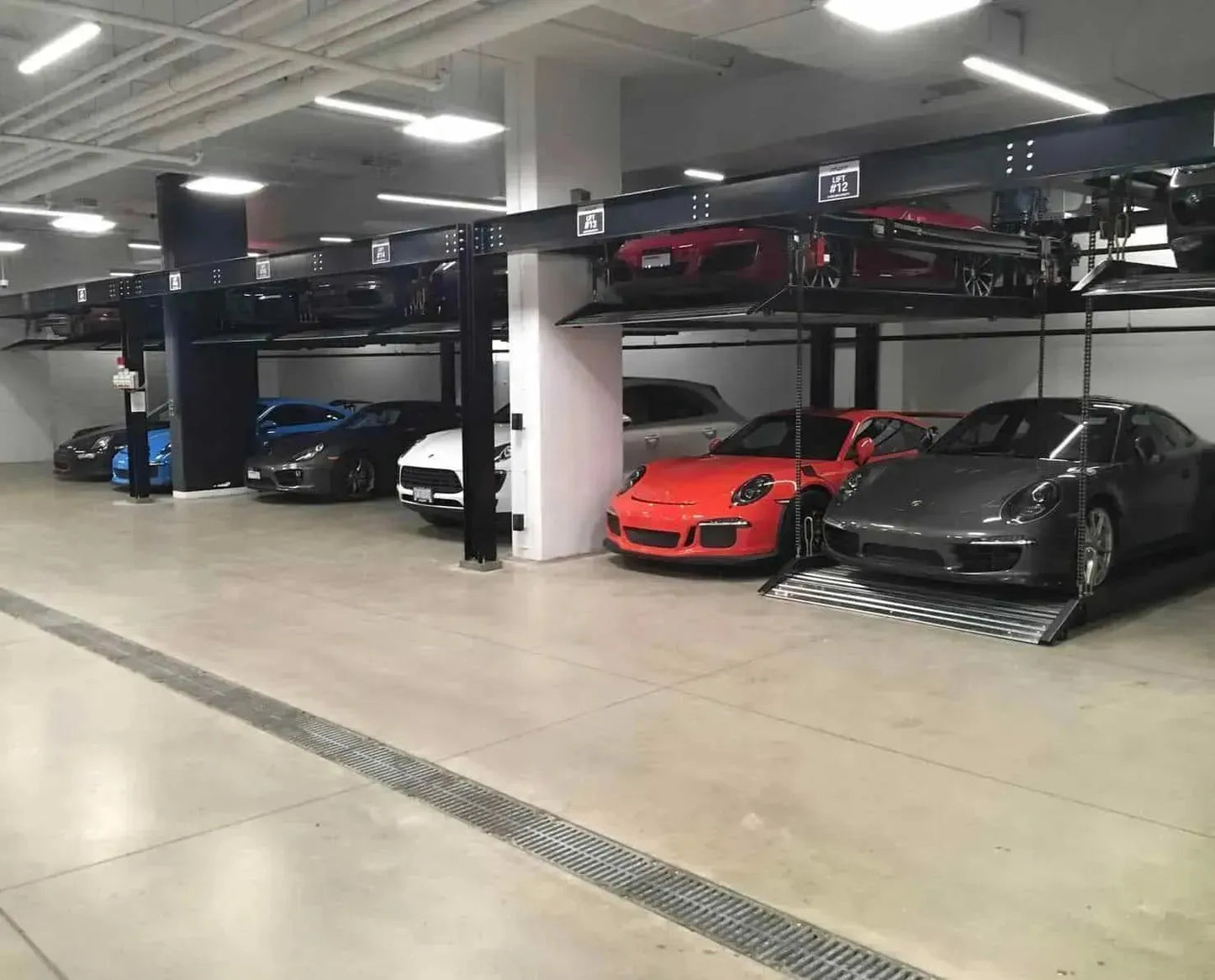

The 2S model represents a cutting-edge solution in vertical parking, offering independent platforms for efficient vehicle storage and retrieval. With a basic module accommodating three cars wide for a total of six vehicles, this system can be seamlessly extended to accommodate additional cars in the same row. Its unique feature of no columns between platforms enhances user convenience, making it an ideal choice for public parking lots, car storage facilities, and car dealerships.
Features

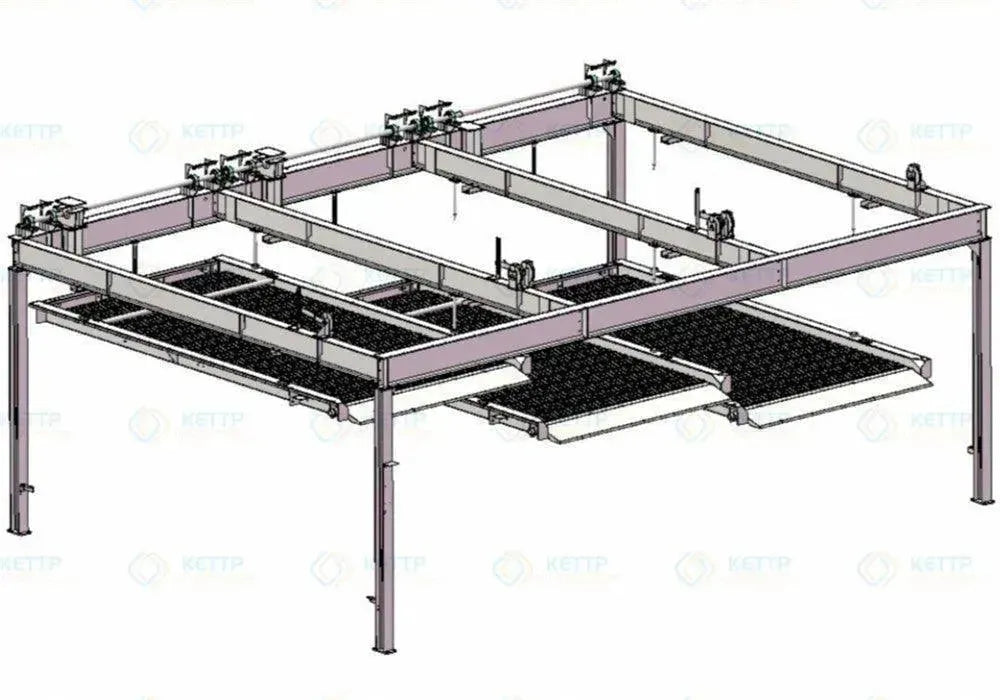

1. Sturdy Steel Structure: The entire structure is built using H steel design, ensuring easy installation and robust stability.
2. Reliable Motor Lifting System: The motorized lifting system ensures standardized operation, high safety standards, and a lower failure rate, providing peace of mind to users.
3. User-Friendly Operation Panel: An easy-to-use operation panel facilitates smooth and efficient operation.
4. Compact Design: The compact structure of the 2S model occupies minimal floor space, making it suitable for areas with limited space availability.
5. Flexible Installation: Beams can be securely fixed on construction walls, allowing for efficient land space utilization and further optimizing space.
6. Integration into Structure: This model can be fully integrated into existing structures, seamlessly blending with the surrounding environment.
7. Highly Customizable: The system is highly customizable in terms of length, width, height, and capacity, catering to diverse parking needs.
8. Versatile Application: Ideal for both residential and commercial settings, the 2S model offers versatile parking solutions tailored to various requirements.
Parameters:
|
No.
|
Items
|
Name
|
Unit
|
Number
|
Remark
|
|
1
|
Allowed car Parameter
|
Length
|
mm
|
≤5000
|
Large car
|
|
Width
|
mm
|
≤1850
|
|
Height
|
mm
|
≤2050
|
|
Weight
|
Kg
|
≤2500
|
|
2
|
Driving power
|
Lifting
|
KW
|
3.7
|
|
|
3
|
Working Speed
|
Lifting
|
m/min
|
4～6
|
|
|
4
|
Parking way
|
Press button OR Key switch
|
|
|
5
|
Nose
|
≤70dB
|
|
|
6
|
Parking time
|
≤60S
|
|
|
7
|
Life of whole Unit
|
≥30 years
|
|
|
8
|
Power supply
|
110-450V, 50 OR 60HZ, 3 PHASES
|
|
|
9
|
Maximum electrical loading
|
4KVA
|
|
|
10
|
Structure model
|
One motor one platform
|
|
|
11
|
Height above sea level
|
≤1500m
|
|
|
12
|
Earthquake resistant level
|
7grade
|
|
|
14
|
Finishing
|
Powder coating or Hot dip galvanized
|
|
|
15
|
Drive Mode
|
Motor + Chain
|
|
DIY your own lift to make your product different in the market.
Mechanical Structure:
1. Customizable Color: Choose from a wide range of colors according to RAL color numbers, free of charge, to match your lift to your branding or personal preference.
2. Adjustable Platform Width: Tailor the platform width to suit your parking needs, whether you require more spacious parking or have limited land space available.
3. Flexible Control Box Location: Customize the location of the control box based on user convenience, free of charge, for easy access and operation.
4. Customizable Lift Height: Adjust the lift height to accommodate different vehicle sizes or installation requirements, ensuring maximum versatility and functionality.
5. Outdoor Power Pack Cover: Ensure durability and protection with an optional power pack cover designed specifically for outdoor use, enhancing the longevity of your lift.
6. Rust Protection: All screw nuts are hot dip galvanized for rust protection outdoor, ensuring long-term durability and reliability.
Electric Control:
1. Customizable Power Supply: Tailor the power supply to meet local requirements, free of charge, providing compatibility and safety in any location.
2. Electric Upgrade Option: Choose an electric upgrade to Schneider Electric for enhanced performance and reliability, ensuring optimal operation of your lift.
Outdoor IP65 Electric Control: Opt for IP65-rated electric control for outdoor installations, ensuring durability and reliability even in harsh weather conditions.
