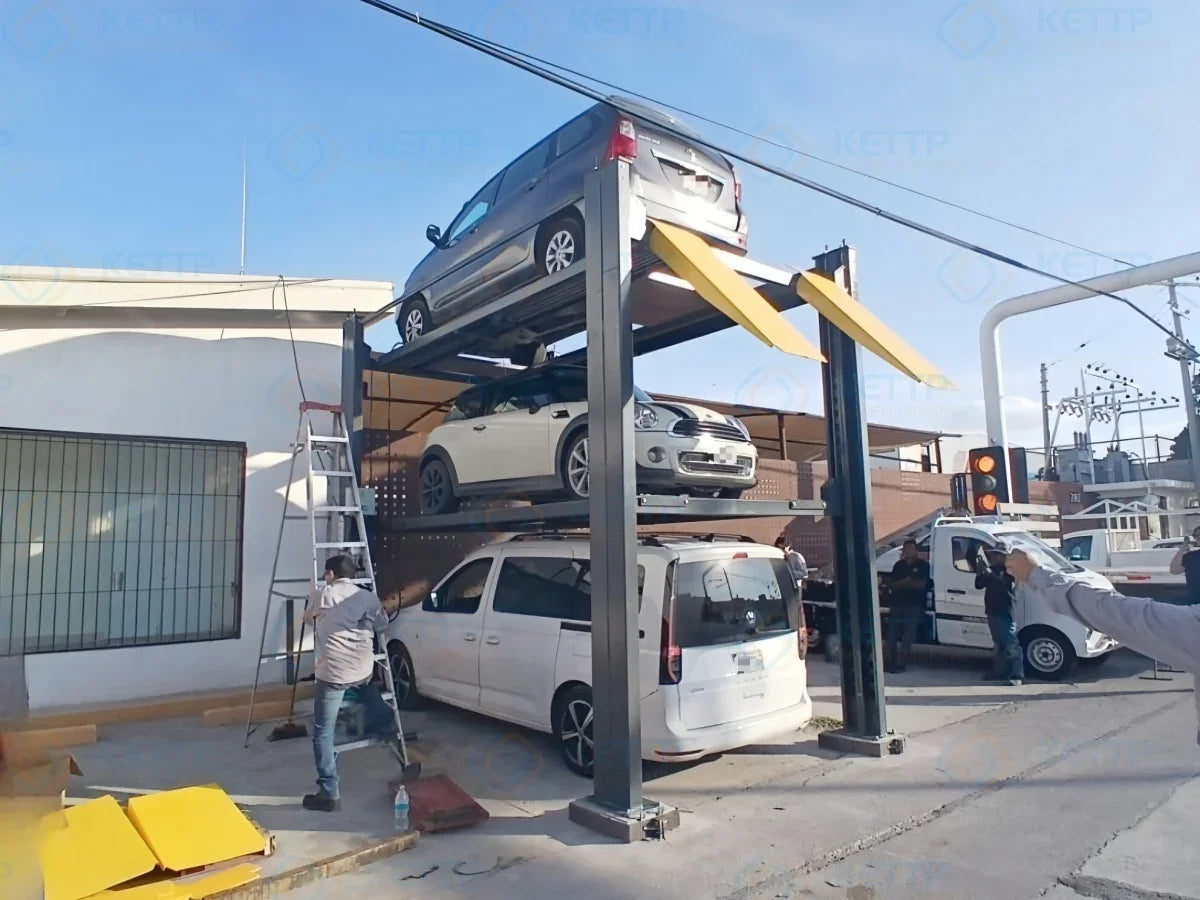

3FS Heavy-Duty Tri-Level Car Storage Lift

Key Features of the 3FS Auto Storage Lift

1. Full Range Mechanical Locks for Enhanced Safety

The 3FS Model features full-range mechanical locks integrated into all four posts of the lift. These locks ensure that vehicles are securely positioned at various heights, enhancing safety for both parking and maintenance. This robust locking system guarantees that vehicles remain stable, even in high-traffic environments, reducing the risk of accidents and offering peace of mind for users and operators alike.

2. Double Lock Safety Mechanism

In the unlikely event of a steel rope failure, the double lock safety mechanism ensures that the system remains safe and stable. This redundant system provides an added layer of protection against potential malfunctions, ensuring that the lift continues to function smoothly and securely, even under heavy use.

3. Double Cylinder & Steel Rope System for Efficient Operation

The double cylinder and steel rope mechanism at the heart of the 3FS Model enables faster lifting speeds and smoother operation. This innovative system optimizes the triple-stacker parking lift for improved user experience and enhanced efficiency. The double-cylinder design enhances the stability of the lift while ensuring that vehicles are safely raised and lowered. The steel ropes are durable and resistant to wear and tear, guaranteeing long-term reliable performance.

4. Automatic Shut-off Button Switch for Safety

For added convenience and safety, the automatic shut-off button switch is an integral feature of the 3FS Model. When the button is released, the system immediately halts operation, preventing accidental activation or further movement. This function adds an extra level of control and safety during operation, ensuring that the lift functions only when the operator intends.

5. Electromagnetic Lock Release for Easy Operation

The 3FS Model Tri-Level Parking Lift incorporates an electromagnetic lock release system for seamless operation. The locks, housed within the ladders of the lift, are released electromagnetically via a push button on the operation box. This system ensures that the lift’s operation is smooth and effortless, allowing for quick and secure parking and retrieval of vehicles.

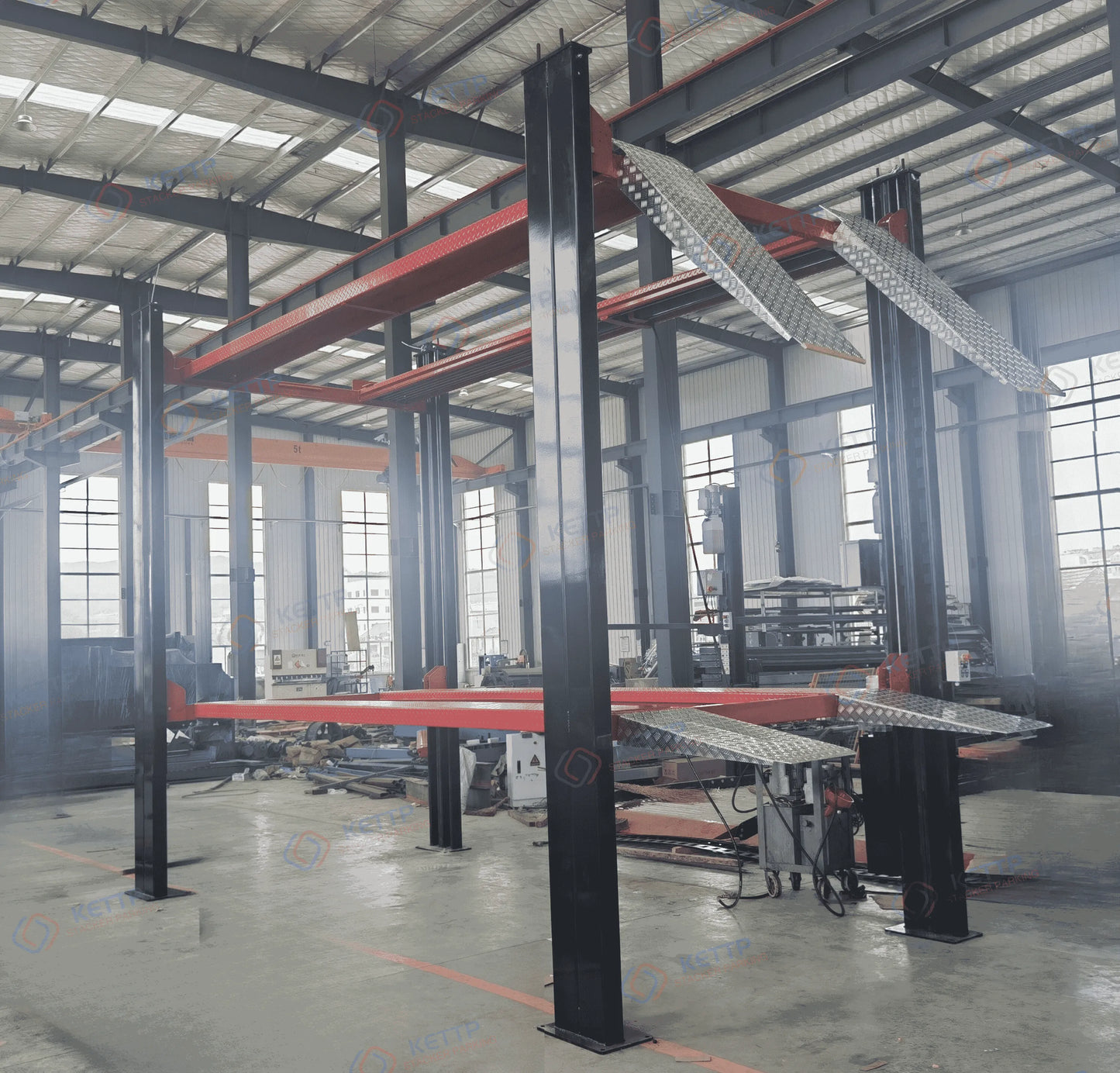

6. Durable Diamond Plate Runways and Ramps

Constructed from high-quality diamond plate material, the runways and ramps of the 3FS Model offer exceptional durability and slip resistance. This construction ensures that vehicles can safely drive in and out of the stacker system without risk of slipping or damage. The durable nature of the ramps and runways also ensures a long lifespan, even in high-traffic parking environments.

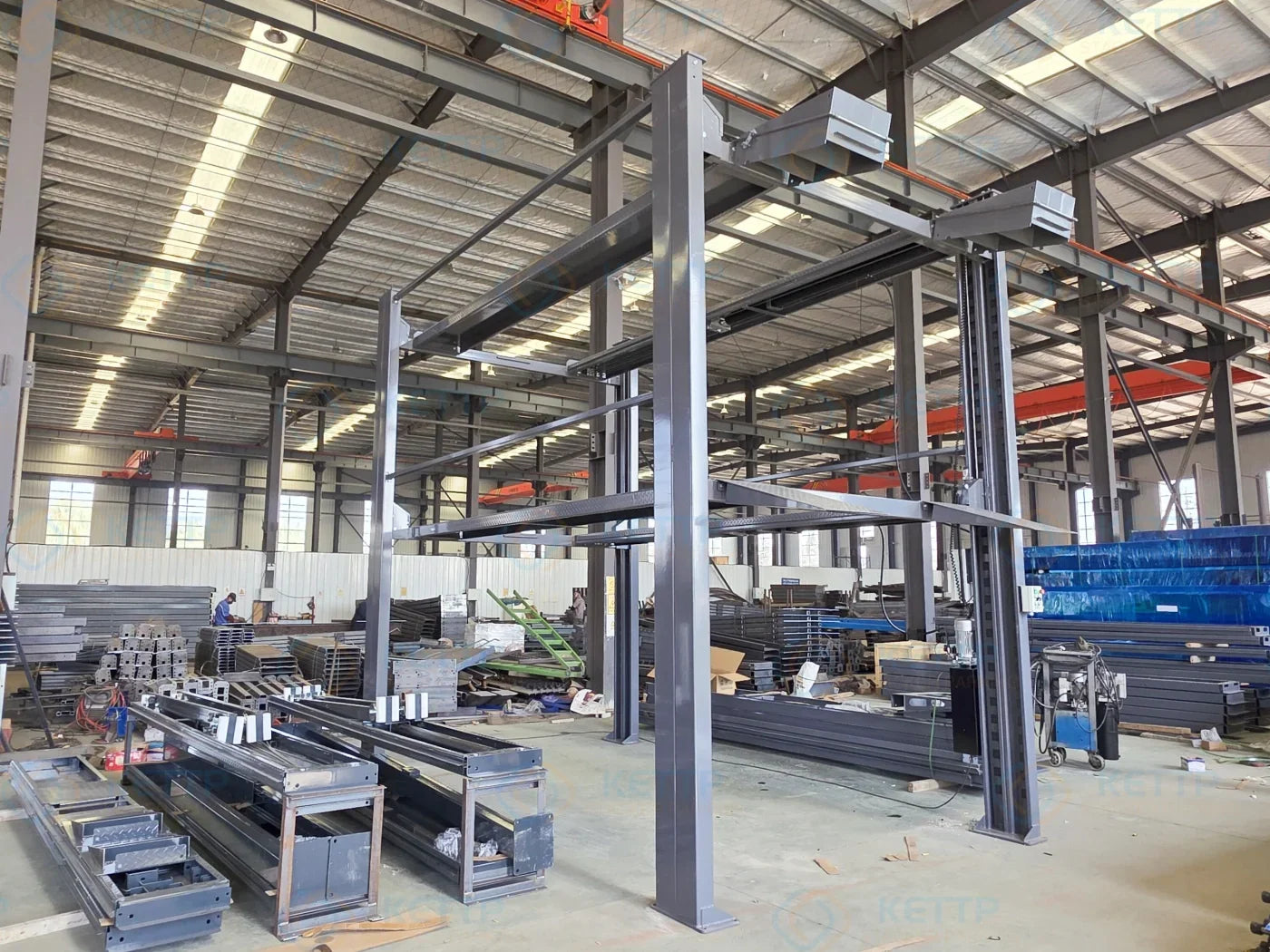

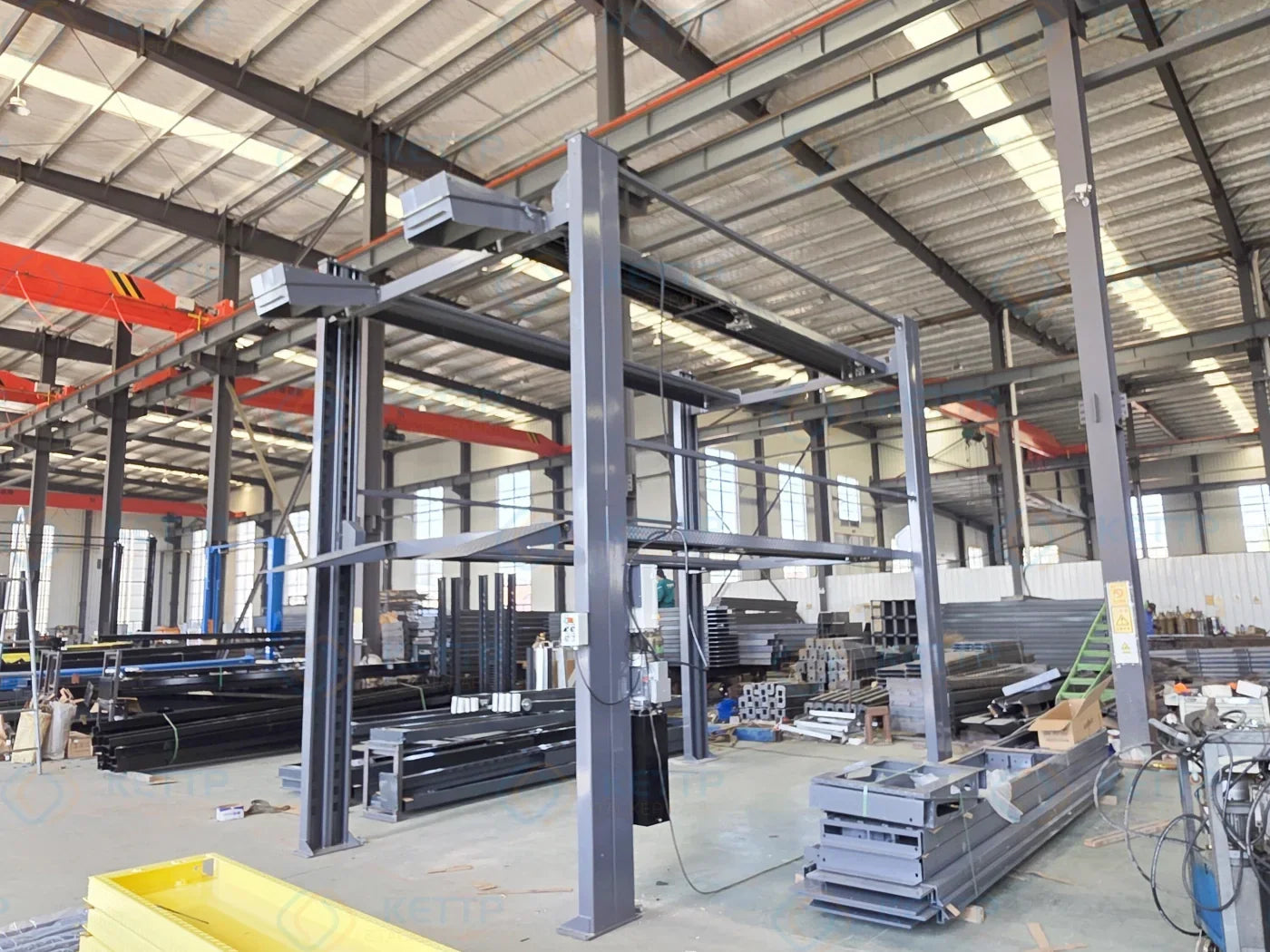

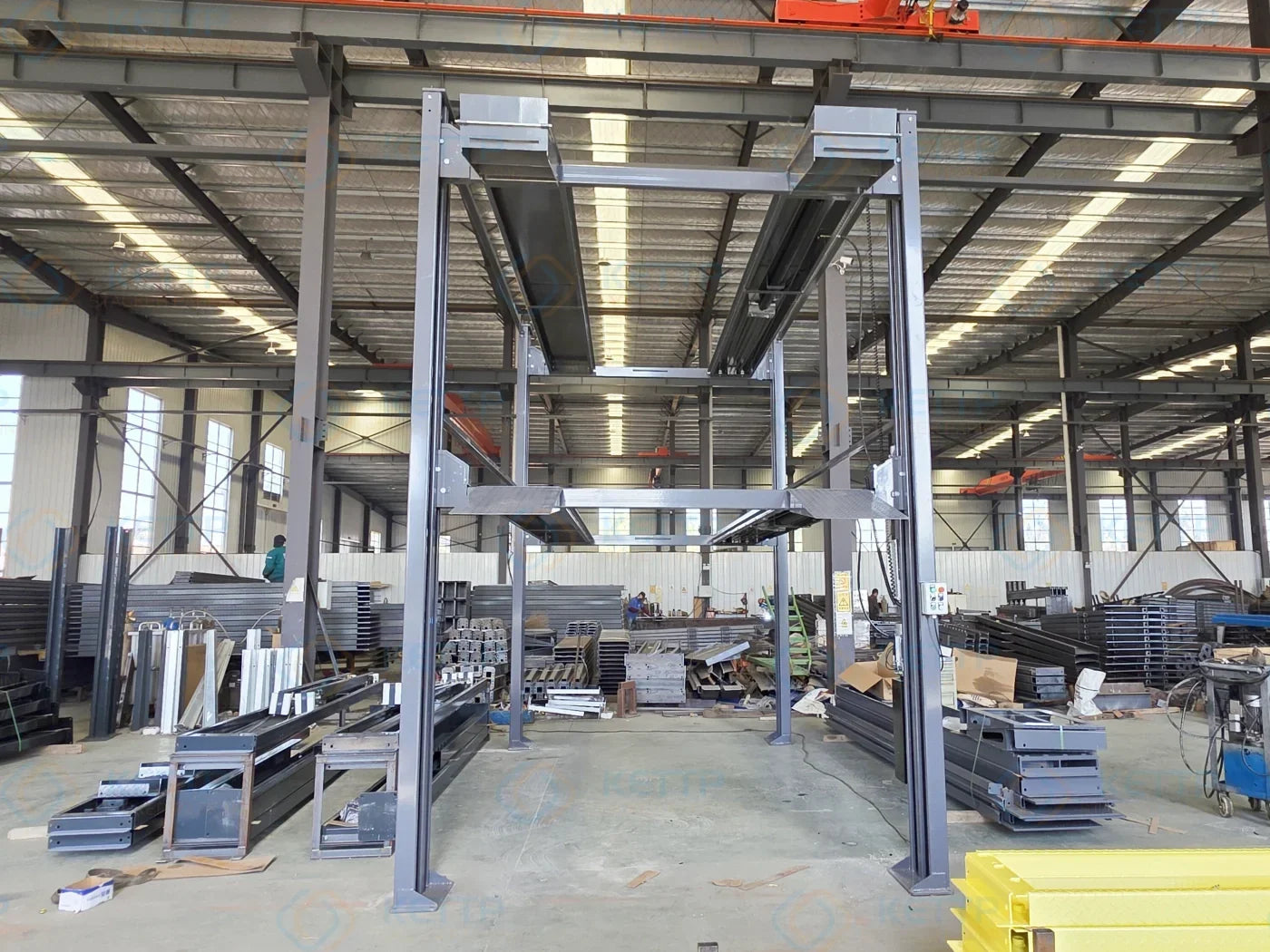

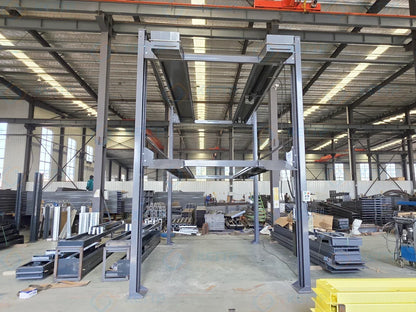

7. Reinforced Structure for Long-lasting Durability

Kettp’s 3FS Model auto storage lift is engineered with a reinforced structure to provide exceptional stability and durability. Capable of withstanding rigorous use in commercial, residential, and public parking facilities, this system is built to perform reliably over time. The reinforced structure ensures that the lift can handle heavy vehicles and continuous operation without compromising performance or safety.

8. Hydraulic Overloading Protection for Extended Lifespan

The hydraulic overloading protection built into the 3FS Model prevents damage from excessive weight, ensuring the longevity of the lift and reducing the risk of mechanical failure. This feature provides peace of mind to operators, knowing that the system is protected against overload conditions, thus extending the life of the equipment and minimizing maintenance costs.

9. Outdoor Installation Option

The 3FS Model is designed to be flexible and adaptable to various installation environments, including outdoor locations. With additional configurations available, this multi-level car stacker can be customized for use in challenging outdoor environments, ensuring reliable operation even in less-than-ideal weather conditions. For detailed customization options, Kettp’s sales team is available to provide support and guidance to ensure that the lift meets your specific needs.

Specification

1. Model: 3FS
2. Structure: 4-post, combined (double-wall) heavy-capacity columns
3. Total Vehicle Capacity: 3 vehicles
4. Rated Capacity, Middle Platform: 4,000KG
5. Rated Capacity, Top Platform: 3,000KG
6. Lifting Height (per level): Approx. 2,100mm
7. Drive System: Double cylinder + steel wire rope, individual circuit per platform
8. Motor Power: 3.0KW
9. Lock Release: Electromagnetic or Pneumatic (selectable at order)
10. Safety Locks: Double mechanical anti-falling lock on all posts
11. Control Voltage: 24V DC
12. Certification: CE
13. Warranty: 5-year structural / 1.5-year electrical / 1-year hydraulic

Mechanical Structure Options:
Customizable Color Options

Choose from a wide variety of RAL color codes to match your branding or aesthetic preferences. This customization is available at no extra cost.
Thickened Galvanized Platform Sheet

Upgrade to a thicker galvanized platform sheet for enhanced durability and corrosion resistance, especially for outdoor installations or harsher environments.
Adjustable Platform Width

Tailor the platform width to your parking requirements, allowing for more spacious parking or better use of limited land space.
Motor Pack Cover for Outdoor Use

Protect the motor pack with an optional cover designed specifically for outdoor installations, ensuring longevity and shielding from environmental elements.
Rust Protection for Components

All screw nuts and key components are hot-dip galvanized for superior rust protection, enhancing the lift's durability in outdoor and high-moisture environments.
Electric Control Options:
Schneider Electric Control System

Opt for a Schneider Electric control system for higher reliability, performance, and longevity.
Customizable Power Supply

Adapt the power supply to meet local voltage and phase requirements (110V–450V, 50/60Hz, single or three-phase) at no additional cost.
Remote Control Operation

Remote control operation allows for easy and convenient management of the lift from a distance, improving user convenience and accessibility.
Outdoor-Ready IP65 Control Box

The IP65-rated electric control box ensures the system is weatherproof and capable of withstanding harsh environmental conditions in outdoor settings.
Automatic Locking System with Enhanced Security Features

Upgrade to automatic electromagnetic locking with advanced security features, ensuring secure and smooth operation for each vehicle.

These options ensure the 3FS Model Tri-Level Auto Storage Lift can be tailored to meet specific location, space, and usage needs, making it an adaptable and reliable parking solution for various commercial, residential, and industrial settings. Whether it’s for outdoor parking or the most demanding high-rise parking environments, these customizations provide a fully optimized and safe parking solution.
