2FC Four Post Car Lift - Hydraulic Vehicle Storage Lift for Garage and Commercial Parking

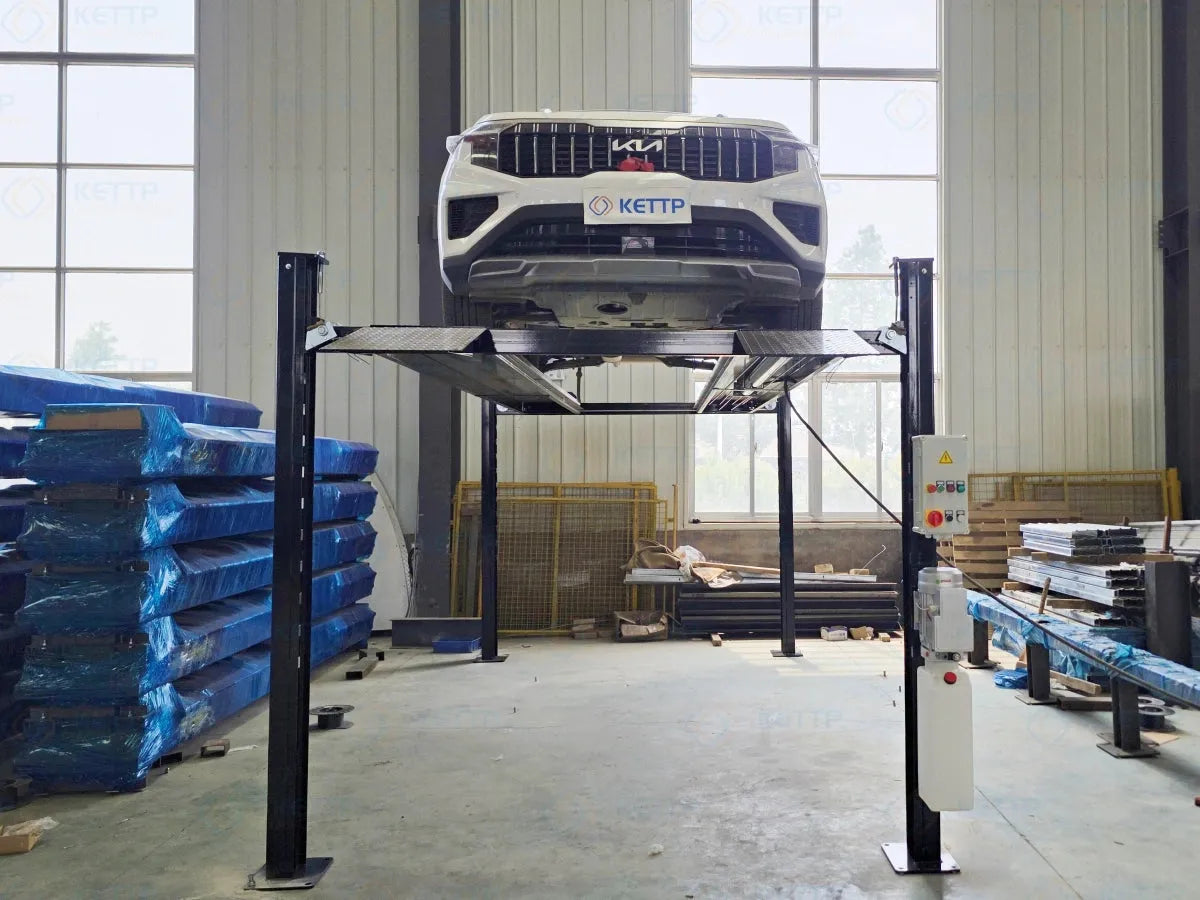

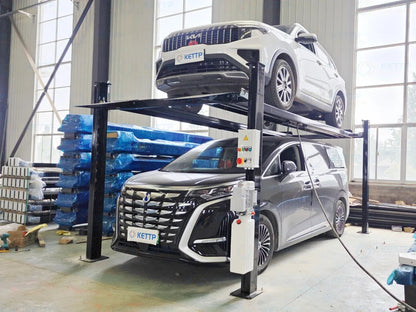

The KETTP 2FC four post car lift is a hydraulic vehicle storage lift for home garages, classic car collections, dealerships, workshops, and light commercial parking. Rated from 2700 kg to 4000 kg, the 2FC combines four-post stability, a full drive-on platform, hydraulic lifting, and synchronized steel wire ropes to let one vehicle park above another.

This product targets buyers searching for four post car lift, 4 post vehicle lift, garage storage lift, classic car storage lift, hydraulic car lift, vehicle storage lift, parking lift for home garage, and outdoor four-post parking lift. Browse KETTP two-level parking lifts.

Four-post stability for storage and display

Unlike a two-post parking lift, the 2FC supports the vehicle on a drive-on platform, making it a stable choice for long-term car storage, showroom display, and garage parking. It is especially useful for classic cars, SUVs, collector vehicles, and spaces where easy drive-on access matters more than under-wheel service access.

Specifications

Rated capacity: 2700-4000 kg
Lifting height: 1800-2100 mm
Minimum ceiling height: about 2800 mm for the 1800 mm lift version, or 3200 mm for the 2100 mm version
Platform size: 5000 x 2000 mm
Motor power: 2.2 kW
Power supply: 3-phase 380 V / 50 Hz or 1-phase 220 V / 60 Hz
Control enclosure: IP54 standard, IP65 optional

Safety and outdoor options

The 2FC uses mechanical anti-falling ratchet locks on all four posts, manual lock release, steel rope anti-slack detection, hydraulic overload protection, diamond plate runways, and optional caster kit. For outdoor car storage, KETTP can configure IP65 electrical control, power pack cover, hot-dip galvanized hardware, and custom RAL color finish.

Best applications

Use the 2FC when you need a four-post vehicle storage lift for a home garage, dealership, auto club, collector garage, or light commercial parking lot. KETTP provides CAD layout support, factory customization, and installation guidance for garage and parking projects. Request a 2FC quote.

KEY FEATURES

Key Features of the KETTP 2FC Four-Post Car Lift

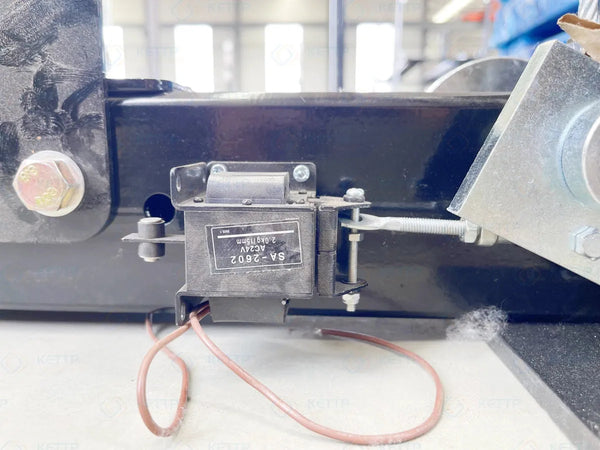

Mechanical anti-falling ratchet locks engage on all four posts at raised positions.
Manual lock release supports controlled lowering during maintenance or emergencies.
Steel rope anti-slack detection stops lift motion if a rope loses tension.
Optional caster kit allows the lift to be moved across a level shop floor without disassembly.
Diamond plate runways and ramps provide durable vehicle traction.
Hydraulic overload protection helps prevent lifting beyond rated capacity.
Plastic oil trays help contain drips and keep the work area cleaner.
Suitable for home garages, classic car collections, dealership showrooms, and light commercial parking.
Warranty: 5 years on steel structure, 18 months on operational and electrical components, and 12 months on hydraulic and transmission parts from shipment date.

The 2FC provides the lateral stability and drive-on convenience of a four-post lift, making it a practical choice for long-term vehicle storage and display.

SPECIFICATIONS

Technical Specifications for the KETTP 2FC Four-Post Car Lift

Model: KETTP-2FC Standard
Rated capacity: 2700-4000 kg
Lifting height: 1800-2100 mm
Minimum ceiling height: 2800 mm for 1800 mm lift height, or 3200 mm for 2100 mm lift height
Platform size: 5000 x 2000 mm
Lower vehicle ground clearance: minimum 100 mm

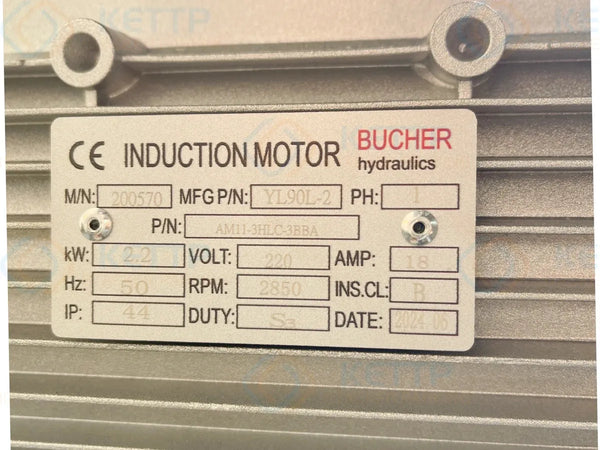

Motor power: 2.2 kW
Power supply: 3-phase 380 V / 50 Hz or 1-phase 220 V / 60 Hz
Lock system: mechanical ratchet lock, with electric or remote option available
Control enclosure: IP54 standard, IP65 optional
Surface finish: electrostatic powder coating with custom RAL color
Unit weight: approximately 900-1100 kg
Certification: CE marked, ETL power unit available

OPTIONS

Customization Options for the KETTP 2FC Four-Post Car Lift

The 2FC four-post car lift can be configured for residential garages, classic car storage, dealership display, light commercial parking, and outdoor installations.

Mechanical structure options

Custom RAL color selection to match branding or site surroundings
Adjustable platform width for different parking and storage requirements
Left- or right-side control box placement
Adjustable lift height from 1800 mm to 2100 mm for different vehicles and ceiling clearances
Outdoor power pack cover for exposed environments
Hot-dip galvanized screws and nuts for improved outdoor durability
Optional caster kit and jack tray for increased portability
Optional middle steel plate cover, lateral protection plate, or aluminum ramp

Electrical and hydraulic options
