2FD Double-Wide Four-Post Parking Lift

2FD Double-Wide Four-Post Parking Lift

Oferta Agotado

CECERTIFICATE
APPROVED

SECUREDSHIPPING WORLDWIDE

GUESTSATISFACTION
GUARANTEE

FASTDELIVERY
TIME

FREESPARE
PARTS

CHINAQUALITY MANUFACTURER

2FD Double Wide Car Lift – 4-Post Dual Platform for 4 Cars

Store 4 vehicles in the footprint of 2 with the Kettp 2FD double wide car lift. Its dual-platform design elevates two vehicles side-by-side on the upper level while two more park freely below — all supported by just 4 structural posts, eliminating the extra center columns two separate four post car lifts would require. Powered by a synchronized hydraulic and steel wire rope drive with full-range mechanical anti-falling locks on every post, this 4 post vehicle lift has been manufactured by KETTP since 2008 and shipped to 60+ countries.

Browse all KETTP two-level parking lifts

Specifications

  • Rated capacity: 4,000 kg (8,820 lbs) or 6,000 kg (13,230 lbs) on the upper platform, selectable at order.
  • Lifting height: 1,800mm or 2,000mm standard, 2,100mm also available.
  • Vehicle capacity: 4 vehicles per unit — 2 elevated on the upper dual platform, 2 parked freely at ground level.

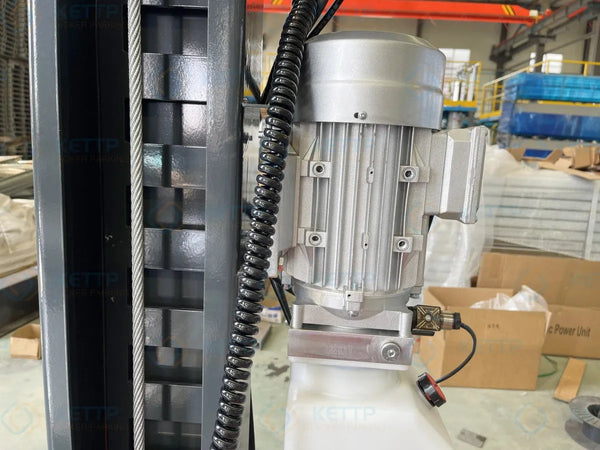

  • Drive system: single hydraulic cylinder plus synchronized dual steel wire rope, 3kW motor.
  • Control voltage: 24V DC low-voltage control circuit, IP65-rated weatherproof enclosure.

Safety Features

The 2FD double wide car lift uses full-range mechanical anti-falling locks that engage at every height increment on all four posts, remaining active even during power failure. Dual independent steel wire ropes provide a secondary load path — if one rope is ever compromised, the second maintains full structural integrity. An electric automatic lock with manual override gives dual confirmation that the upper platform is secured before ground-level access. Every unit is built on the same precision CNC laser-cut manufacturing process used across KETTP's parking lift and car stacker range.

Indoor & Outdoor Installation

Minimum ceiling clearance is calculated as lifting height plus the tallest upper-level vehicle height plus a safety margin — contact KETTP with your site dimensions for a free layout check. For outdoor installations, KETTP offers a power pack cover, hot-dip galvanized hardware, and the standard IP65 control enclosure.

Warranty

KETTP backs the 2FD double wide car lift with a 5-year warranty on the steel structure, 18 months on operational and electrical components, and 12 months on hydraulic and transmission parts, from the shipment date.

Applications

Also known as a Super Wide Four Post Lift, Double Vehicle 4-Post Lift, or Dual Platform Four-Post Lift, the 2FD is a popular choice for classic car collectors, auto dealerships, commercial parking garages, and multi-car households. Compared with installing two separate four post car lifts side by side, the 2FD achieves the same 4-car capacity with half the structural posts. As a four post vehicle lift manufacturer shipping worldwide, KETTP offers custom quotes and CAD layouts for every project.

KEY FEATURES

4 Post Double Wide Car Lift Key Features:

1. Full-Range Mechanical Locks: Comprehensive safety with secure locking at every height increment on all four posts, active even during power failure.

2. Dual Steel Wire Rope Failsafe: Two independent steel wire ropes provide a secondary load path if one rope is ever compromised.

3. Manual Lock Release: Offers ladder lock or tube design options for flexibility and easy maintenance.

4. Mobility with Caster Kits: Allows the lift to be easily repositioned for flexible parking configurations.

5. Diamond Plate Runways and Ramps: Ensures reliable traction and durability for vehicles.

6. Hydraulic Overload Protection: Safeguards against overload situations, ensuring safe operation.

7. Complimentary Oil Trays: Includes six free plastic trays to maintain a clean parking area.

8. Space Optimization: Parks four vehicles in one unit using just 4 posts, outperforming two separate four-post lifts that would need 8 posts.

9. Warranty: 5 years on the steel structure, 18 months on operational and electrical components, and 12 months on hydraulic and transmission parts, from the shipment date.

The 2FD is also known as a Super Wide Four Post Lift, Double Vehicle 4-Post Lift, and Dual Platform Four-Post Lift — a versatile 4 post vehicle lift suited to warehouses, car dealerships, and residential and commercial parking alike.

SPECIFICATIONS

Technical Specifications for the 2FD double wide car lift

  1. MODEL KETTP-2FD CE CERTIFIED
  2. RATED CAPACITY (UPPER PLATFORM) 4000KG / 6000KG
  3. LIFTING HEIGHT 1800MM / 2000MM (2100MM AVAILABLE)
  4. STRUCTURAL POSTS 4
  5. TOTAL VEHICLE CAPACITY 4 (2 UPPER + 2 LOWER)
  6. DRIVE SYSTEM HYDRAULIC CYLINDER + SYNCHRONIZED DUAL STEEL WIRE ROPE
  7. MOTOR POWER 3KW
  8. CONTROL VOLTAGE 24V DC
  9. ELECTRICAL CONTROL ENCLOSURE IP65 RATED
  10. POWER SUPPLY 3-PHASE 380V/50HZ STANDARD, 110V/220V 60HZ CONFIGURABLE
  11. LOCK SYSTEM MECHANICAL LOCKS ALL 4 POSTS, ELECTRIC AUTO-LOCK OPTIONAL
  12. SURFACE FINISH ELECTROSTATIC POWDER COATING, CUSTOM RAL COLOR
  13. CERTIFICATION CE MARKED

OPTIONS

Double Wide Car Lift Customization Options

Mechanical Structure:

1. Customizable Color: Choose from a wide range of RAL colors at no extra cost.

2. Adjustable Platform Width: Tailor the platform width to fit specific parking needs.

3. Flexible Control Box Placement: Position the control box on the left or right post at no additional cost.

4. Customizable Lift Height: 1800mm, 2000mm, or 2100mm to accommodate various vehicle sizes and installation requirements.

5. Outdoor Protection: Includes a power pack cover for weather protection.

6. Rust-Resistant Hardware: Hot-dip galvanized screw nuts ensure durability in outdoor settings.

7. Optional Mobility Features: Add casters for lift movement and a jack tray for convenient maintenance.

8. Additional Accessories: Middle steel plate covers, lateral protection plates, or aluminum ramps.

Electric Control:

1. Customizable Power Supply: 3-phase 380V/50Hz standard, or 110V/220V 60Hz on request, at no extra cost.

2. Enhanced Control Features: Electric automatic locks, wireless remote control, and lock button customization.

3. Weatherproof Design: IP65-rated electric controls ensure reliability in harsh weather.

Hydraulic System:

1. Durable Components: Steel oil tank included for reliable hydraulic operation.

2. Safety Features: Optional anti-explosion valve for enhanced operational safety.

DOWNLOAD

1.2FD 2 levels 4 post double wide car lift 1800mm 4000KG standard drawing

2. 2FD 2 levels 4 post double wide car lift 2000mm 4000KG standard drawing

3. 2FD 2 levels 4 post double wide car lift 2100mm 4000KG standard drawing
