3F Triple Car Stacker - Four-Post Vehicle Storage Lift for Three Cars

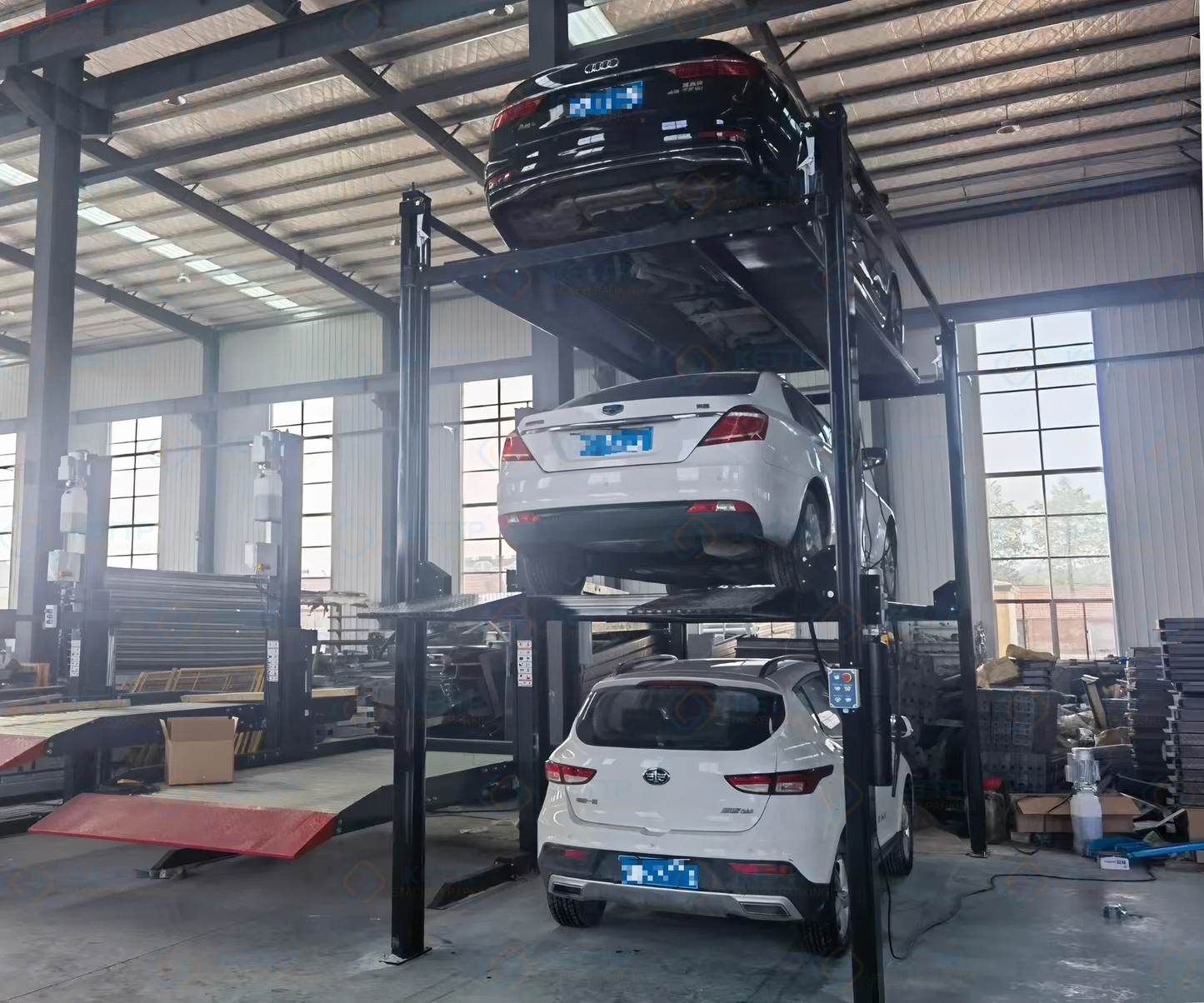

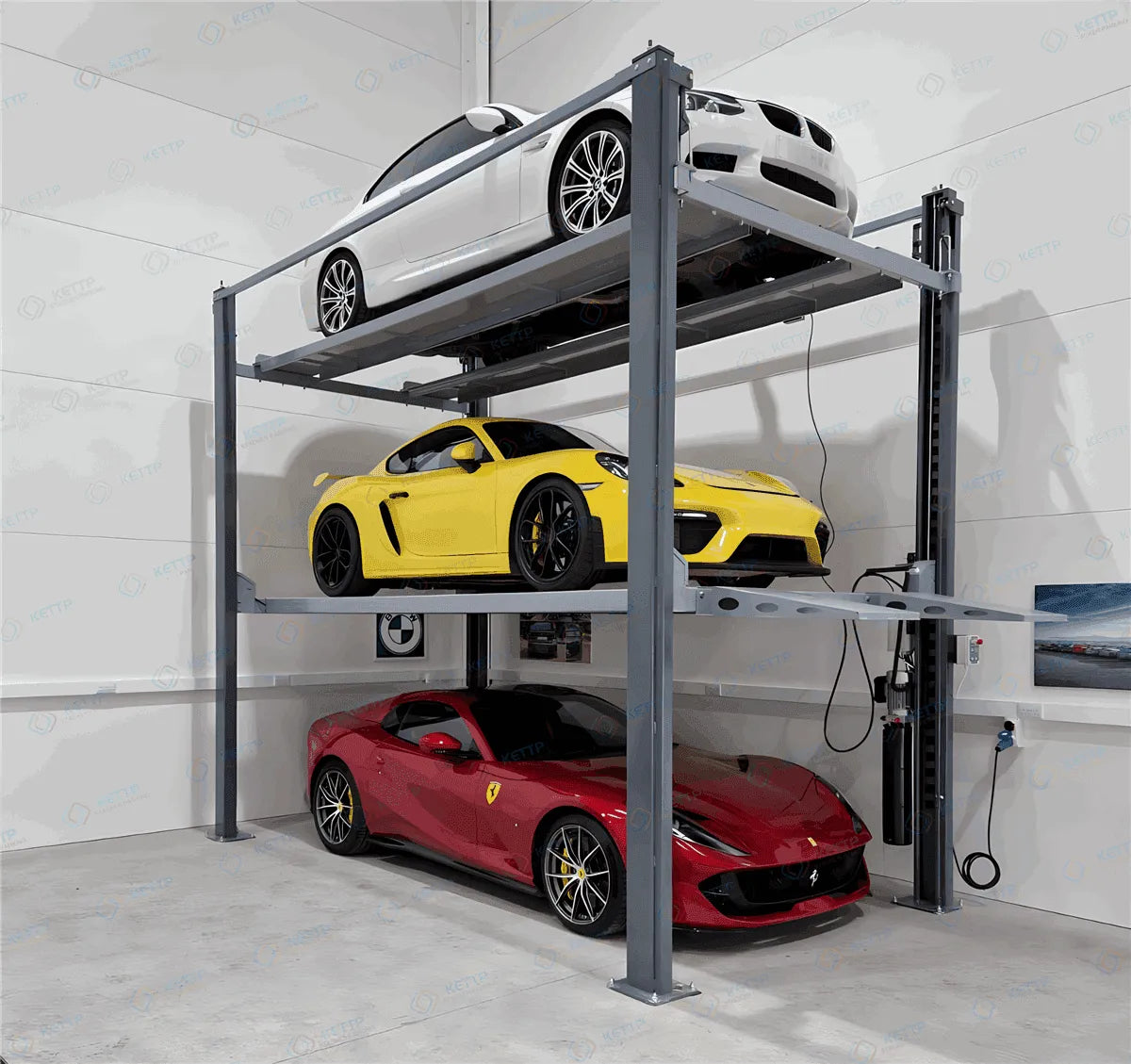

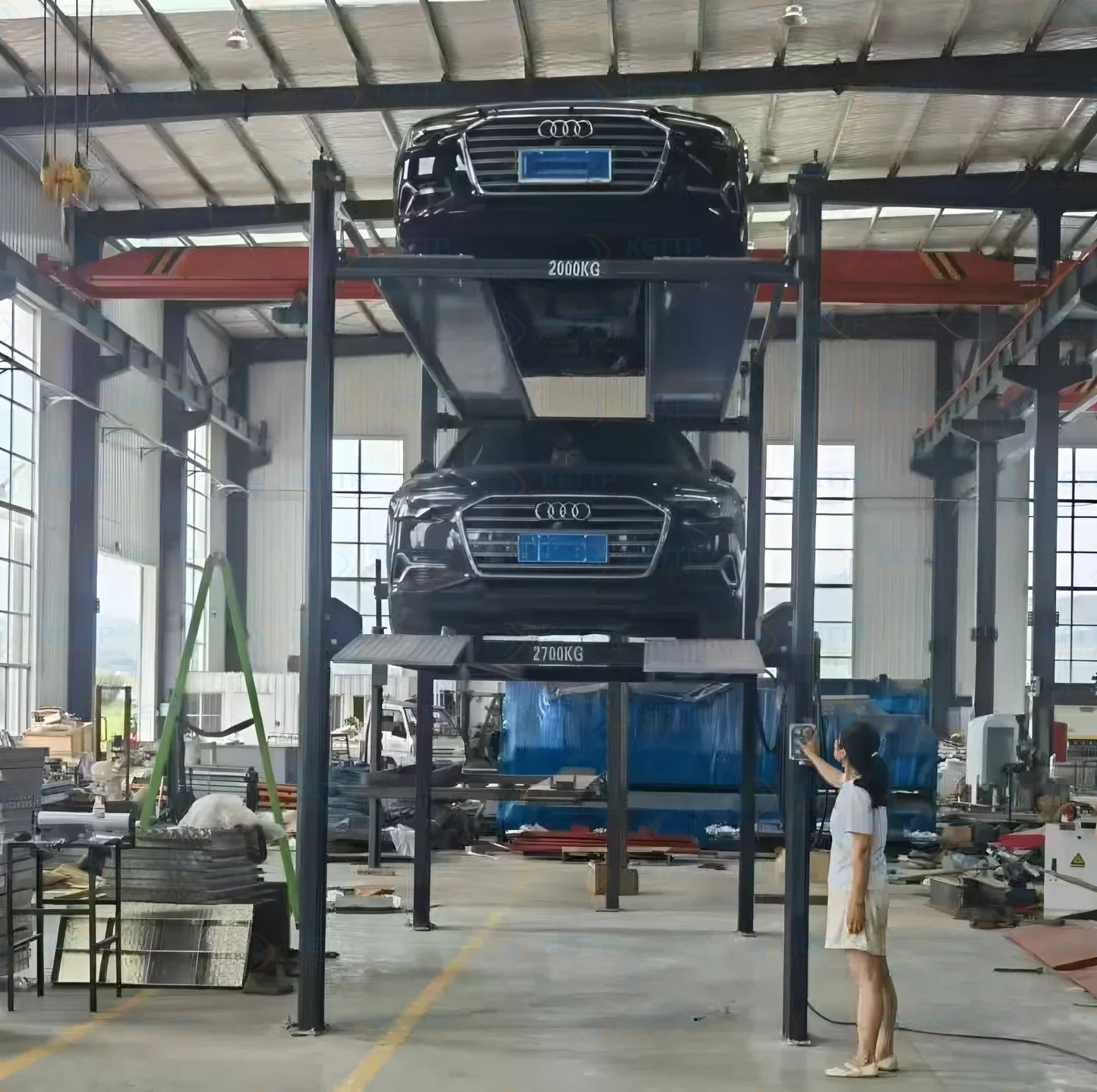

The KETTP 3F triple car stacker is a three-level four-post car storage lift that stacks three vehicles vertically on a compact single-bay footprint. Its overlapping platform design lets the upper and middle platforms nest when lowered, creating an ultra-low 150 mm drive-on ramp and making the 3F practical for sports cars, sedans, SUVs, classic car collections, dealerships, and long-term vehicle storage.

This page targets keywords such as triple car stacker, 3 level parking lift, four post car storage lift, vehicle storage lift, car stacker for garage, dealership car storage, and three car parking lift. Browse KETTP triple-level car storage lifts.

Three-car storage in one bay

The 3F uses a four-post structure with overlapping platforms. The middle platform works as the master platform, raising the top platform into position before returning to collect a second vehicle. This design improves floor-space efficiency for garages and storage facilities where a conventional two-level parking lift is not enough.

Capacity and drive system

Total vehicle capacity: 3 vehicles
Middle platform capacity: 2500 kg
Top platform capacity: 2000 kg
Lifting height: approximately 2100 mm per level
Ramp height: approximately 150 mm

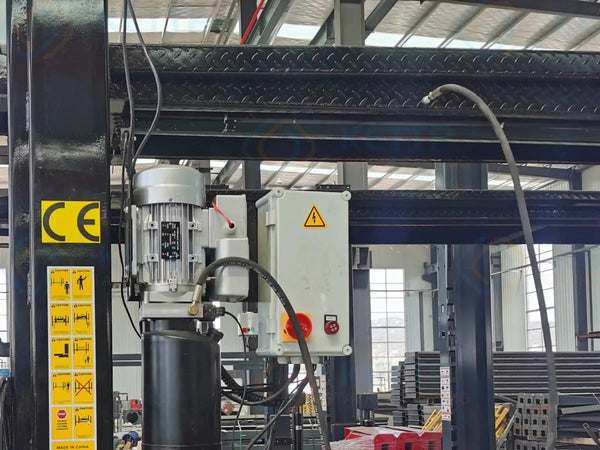

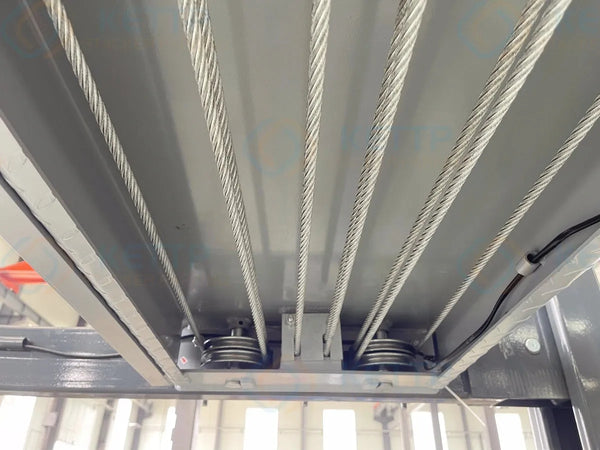

Drive system: hydraulic cylinder and steel wire rope with 2:1 pulley ratio
Motor power: 3.0 kW

Safety and installation

Automatic mechanical anti-falling locks, upper platform double safety lock, lower platform locking ladder, hydraulic overload relief, upper and lower limit switches, and 24 V DC control support safer operation. Outdoor installation options include hot-dip galvanized hardware, IP65-rated electrical control, and weather protection for exposed vehicle storage projects.

Best applications

The KETTP 3F is well suited for classic car storage, dealership inventory display, private collections, apartment garages, rental fleets, valet parking, and multi-family parking projects. For a two-level drive-on option, compare the KETTP 2FC four-post car lift.

KEY FEATURES

Key Features of the KETTP 3F Triple Car Stacker

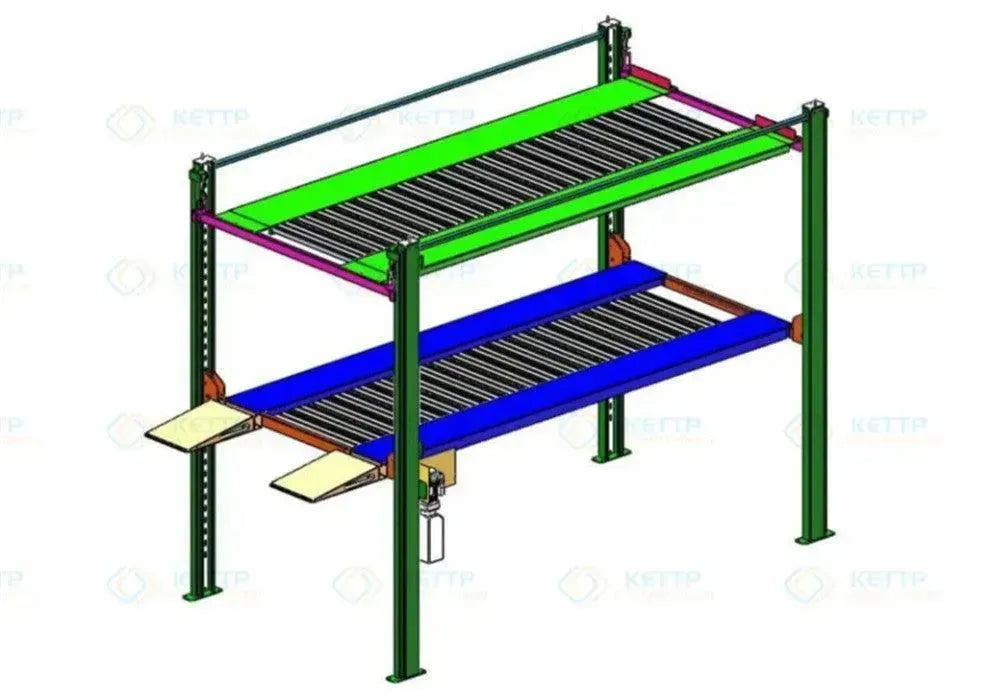

Four-post structure with overlapping platform design for three-vehicle storage on a compact footprint.

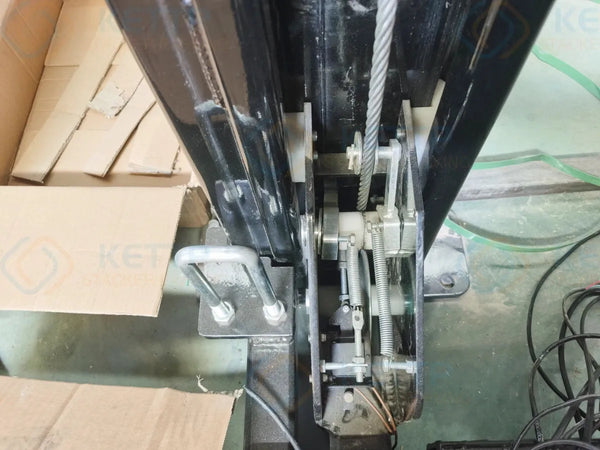

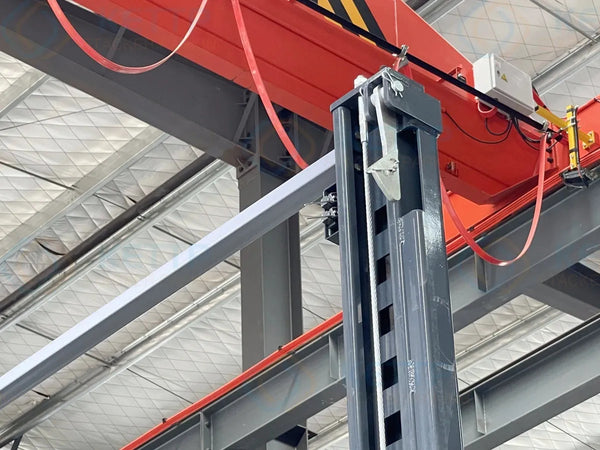

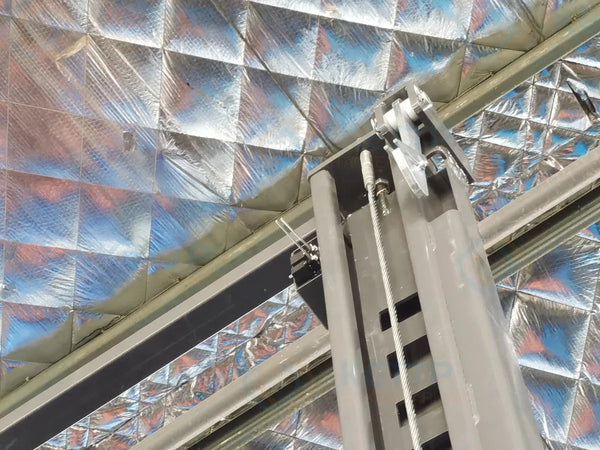

Full-range mechanical locks on four posts help secure the platforms at raised positions.
Single hydraulic cylinder and steel rope system provide smooth lifting operation.

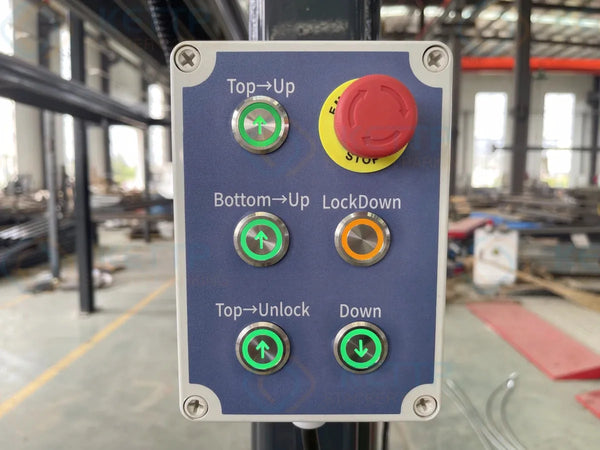

Automatic shut-off button switch stops lift movement when released.
Electromagnetic lock release supports convenient platform operation.

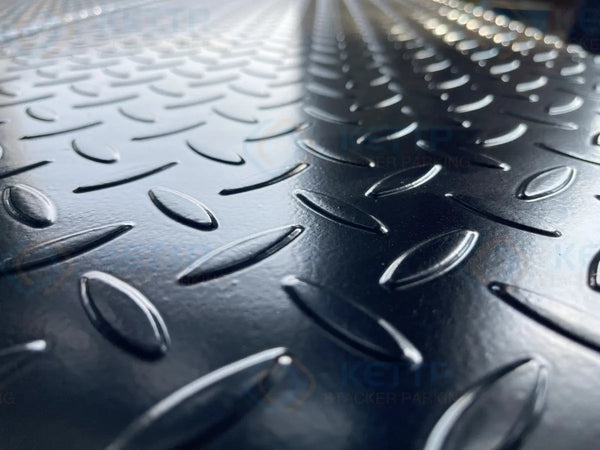

Diamond plate runways and ramps provide durable, slip-resistant vehicle access.
Reinforced structure is designed for demanding vehicle storage applications.
Hydraulic overload protection helps prevent lifting beyond the rated capacity.
Outdoor installation options are available for exposed environments.

SPECIFICATIONS

Technical Specifications for the KETTP 3F Triple Car Stacker

Model: 3F
Structure: four-post overlapping platform design
Total vehicle capacity: 3 vehicles
Rated capacity, middle platform: 2500 kg
Rated capacity, top platform: 2000 kg
Lifting height per level: approximately 2100 mm
Drive-on ramp height: approximately 150 mm

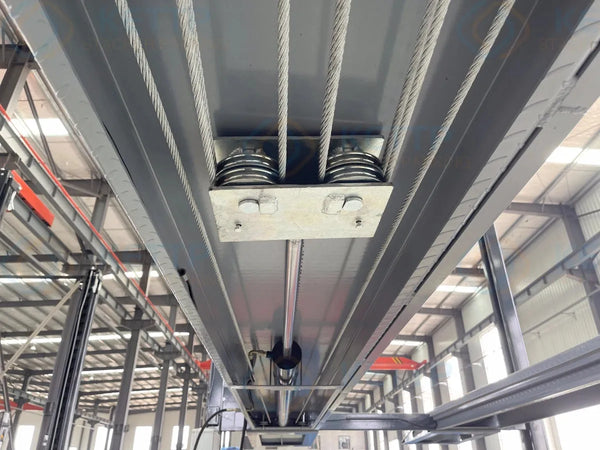

Drive system: hydraulic cylinder and steel wire rope, movable pulley 2:1 ratio
Motor power: 3.0 kW
Control voltage: 24 V DC
Safety locks: double safety lock on upper platform and locking ladder on lower platform
Certification: CE
Warranty: 5-year structural, 1.5-year electrical, and 1-year hydraulic warranty

OPTIONS

Customization Options for the KETTP 3F Triple Car Stacker

The 3F car storage lift can be configured for vehicle storage, dealership display, home garage storage, and outdoor projects.

Mechanical structure options

Custom RAL color selection for branding or site design
Adjustable platform width for different parking spaces
Left- or right-side control box placement
Adjustable lift height for vehicle and ceiling-clearance requirements

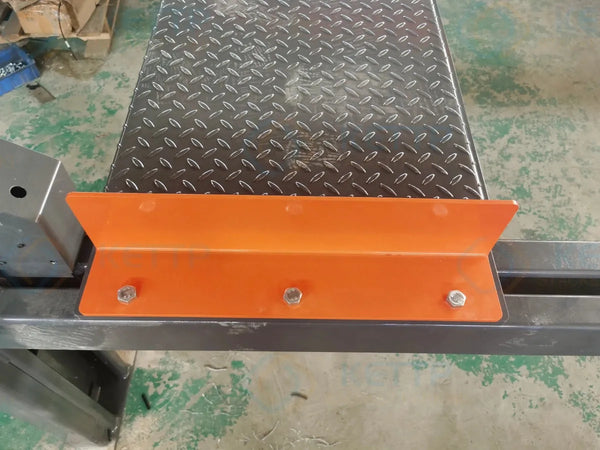

Optional middle steel plates, wave plate covers, lateral protection plates, and aluminum ramps

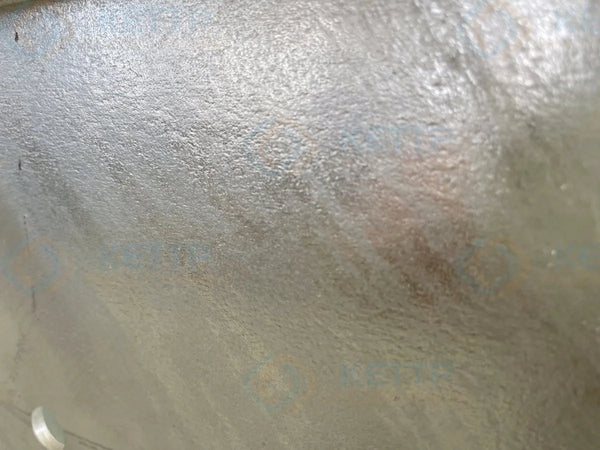

Hot-dip galvanized structure and thickened galvanized platform sheets for outdoor durability
Outdoor power pack cover for weather protection

Electrical and hydraulic options
