How much weight can the KETTP 2T two post parking lift hold?

The 2T two post parking lift is available in 2300KG and 2700KG capacities, suitable for most passenger cars and large SUVs.

Is the 2T hydraulic parking lift suitable for a home garage?

Yes. The 2T is one of KETTP's most popular residential garage car lift options, using a shared two-post design that enables double stack car parking inside a standard home garage.

What safety features does the 2T car stacker include?

Every unit includes multi-stage mechanical locks, automatic arm restraints, and hydraulic overload protection to keep the elevated vehicle securely in place.

Can the 2T two post parking lift be installed outdoors?

Yes. Optional hot-dip galvanized structures, IP65-rated electric control, and a weatherproof power pack cover are available for outdoor installation.

1 12

Elevador de estacionamiento de 2 niveles y 2 columnas monocilíndrico (2T)

Name: Elevador de estacionamiento de 2 niveles y 2 columnas monocilíndrico (2T)
Brand: QINGDAO KETTP CO., LTD.
Price: 1561.0 USD
Availability: InStock

~~$0.00 USD~~

Oferta Agotado

CECERTIFICATE
APPROVED

SECUREDSHIPPING WORLDWIDE

GUESTSATISFACTION
GUARANTEE

FASTDELIVERY
TIME

FREESPARE
PARTS

CHINAQUALITY MANUFACTURER

INTRODUCCIÓN

2T 2300 y 2T 2700 son elevadores de estacionamiento de dos postes, se utilizan para estacionar dos vehículos en cada unidad, uno en el suelo y otro en la parte superior, la capacidad es de 2300 KG y 2700 KG, ambos con una altura de elevación de 2100 mm para que se puedan estacionar SUV grandes en el suelo. Su fácil instalación, diseño de poste compartido y múltiples características de seguridad lo convierten en el elevador de estacionamiento de 2 niveles más popular.

CARACTERÍSTICAS:

1. Cerraduras mecánicas de gama completa en ambos postes para mayor seguridad, disponibles para cerrar en diferentes alturas.

2. Compartir publicaciones, ahorrar costos, ancho de instalación, tiempo de instalación, mano de obra, costos de transporte y toda la estructura completamente más fuerte.

3. Instalación en exteriores disponible con configuración adicional, comuníquese con nuestro departamento de ventas para obtener más información.

4. Cilindro único y cadena, velocidad de elevación más rápida y trabajo suave.

5. Disponible tanto para entrar como para atrás, más conveniente para abrir la puerta del vehículo.

6. Placa PCB adoptada para un cableado más conveniente.

7. Debajo de la plataforma se encuentran tres varillas de conexión para mejorar la resistencia general de la estructura.

8. Estructura reforzada para un trabajo más estable.

PARÁMETROS

MODELO	2T 2300	2T 2700
ALTURA DE ELEVACIÓN	2100MM	2100MM
CAPACIDAD NOMINAL	2300KG	2700 kg
LONGITUD DE LA PLATAFORMA
FUERZA DE MOTOR	2,2 KW	2,2 KW
TAMAÑO DEL EQUIPO (MM)	3914X2559X3235	4138X2559X3525
DIMENSIÓN DISPONIBLE DEL COCHE (MM)	5000 X 1900 X 2050
FUENTE DE ALIMENTACIÓN	110-450V, 50 O 60HZ, 1 O 3 FASES
OPERACIÓN	INTERRUPTOR DE LLAVE/BOTÓN PULSADOR
POTENCIA DE OPERACIÓN	24V
CERRADURA MECÁNICA	Dinámico 17 ETAPAS DE BLOQUEO
ABREPUERTAS	ELÉCTRICO AUTOMÁTICO
TIEMPO DE VIDA	45 SEGUNDOS
TIEMPO BAJA	DEPENDE DEL PESO
ACABADO	RECUBRIMIENTO EN POLVO/PINTURA/GALVANIZADO EN CALIENTE.

KEY FEATURES

Key Features:

1. Safety First: Equipped with full-range mechanical locks in both posts, ensuring secure locking at different heights for peace of mind.

2. Cost-Effective Design: The shared post feature not only saves costs but also minimizes land space requirements and transportation expenses while bolstering structural integrity.

3. Efficiency in Motion: With a single cylinder and chain mechanism, these lifts offer faster lifting speeds and smoother operation, enhancing overall efficiency.

4. Versatile Parking: Designed for both head-in and back-in parking, providing greater convenience for vehicle door access.

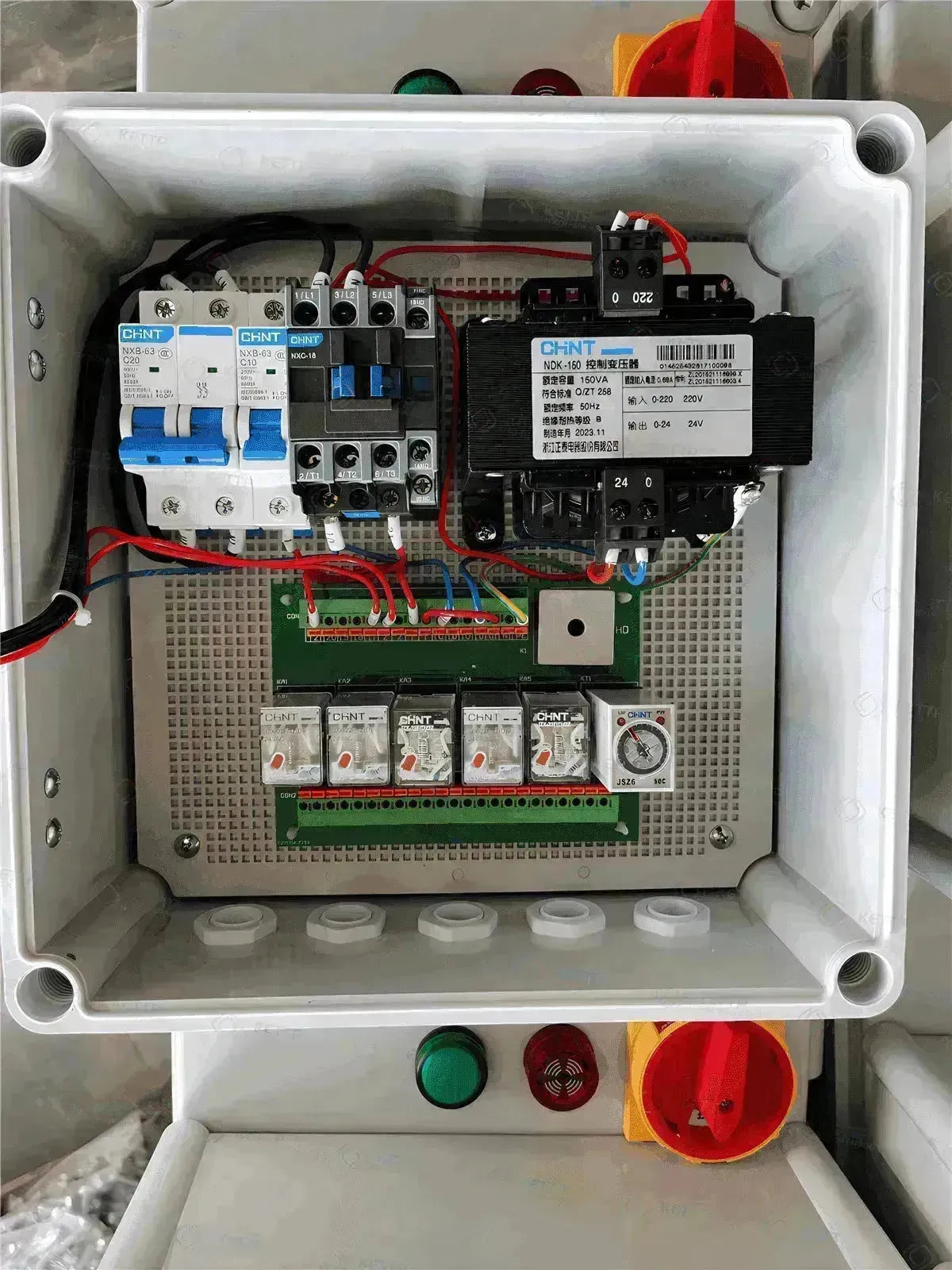

5. Convenient Wiring: PCB board adoption streamlines wiring processes, ensuring ease of installation and maintenance.

6. Enhanced Safety: Automatic shut-off key switch activates when the operator's hand releases, enhancing safety during operation.

7. Structural Strength: Three connection rods beneath the platform enhance the overall structure's strength, promoting durability and reliability.

8. Stability Reinforced: The reinforced structure ensures stable working conditions, even under heavy loads.

9. Overload Protection: Hydraulic overloading protection safeguards against potential overload situations, ensuring long-term reliability and safety.

10. Outdoor Installation: With additional configuration options, these lifts are suitable for outdoor installation. Contact our sales team for more information on outdoor setup requirements.

11. Warranty: 5 years on the steel structure, 18 months on operational and electrical components, and 12 months on hydraulic and transmission parts, from the shipment date.

Experience the convenience, efficiency, and safety of multi-level, double stack car parking with the 2T 2300 and 2T 2700 Two Post Parking Lifts. Requiring just 3m of minimum ceiling height, these hydraulic parking lifts offer unmatched performance and reliability as a trusted 2 post car lift and vehicle lift solution for residential garages and commercial operators alike.

SPECIFICATIONS

Technical Specifications for the KETTP 2T Two-Post Parking Lift

Models: 2T 2300 and 2T 2700
Lifting height: 2100 mm
Rated capacity: 2300 kg or 2700 kg
Platform length: 3914 mm or 4138 mm
Motor power: 2.2 kW
Equipment size: 3914 x 2559 x 3235 mm or 4138 x 2559 x 3525 mm
Available car dimension: 5000 x 1900 x 2050 mm
Power supply: 110-450 V, 50 or 60 Hz, 1 or 3 phases
Operation: key switch or push button
Operation power: 24 V
Mechanical lock: dynamic 17-stage locking system
Lock release: automatic electric release
Lifting time: 45 seconds
Lowering time: 40 seconds, depending on vehicle weight
Finishing options: powder coating, paint, or hot-dip galvanizing

OPTIONS

Customization Options for the KETTP 2T Two-Post Parking Lift

The 2T two-post parking lift can be configured for different garage, commercial, and outdoor parking projects. Available options help match the lift to site conditions, vehicle size, local power requirements, and brand preferences.

Mechanical structure options

Custom RAL color selection for branding or site design requirements
Adjustable platform width for different parking layouts
Left- or right-side control arm placement
Top-mounted control arm option for easier access in selected installations
Adjustable lifting height for different vehicle and ceiling-clearance needs
Hot-dip galvanized structure, galvanized screw nuts, and thickened galvanized platform sheets for enhanced outdoor corrosion protection
Outdoor power pack cover for weather protection

Electrical control options
