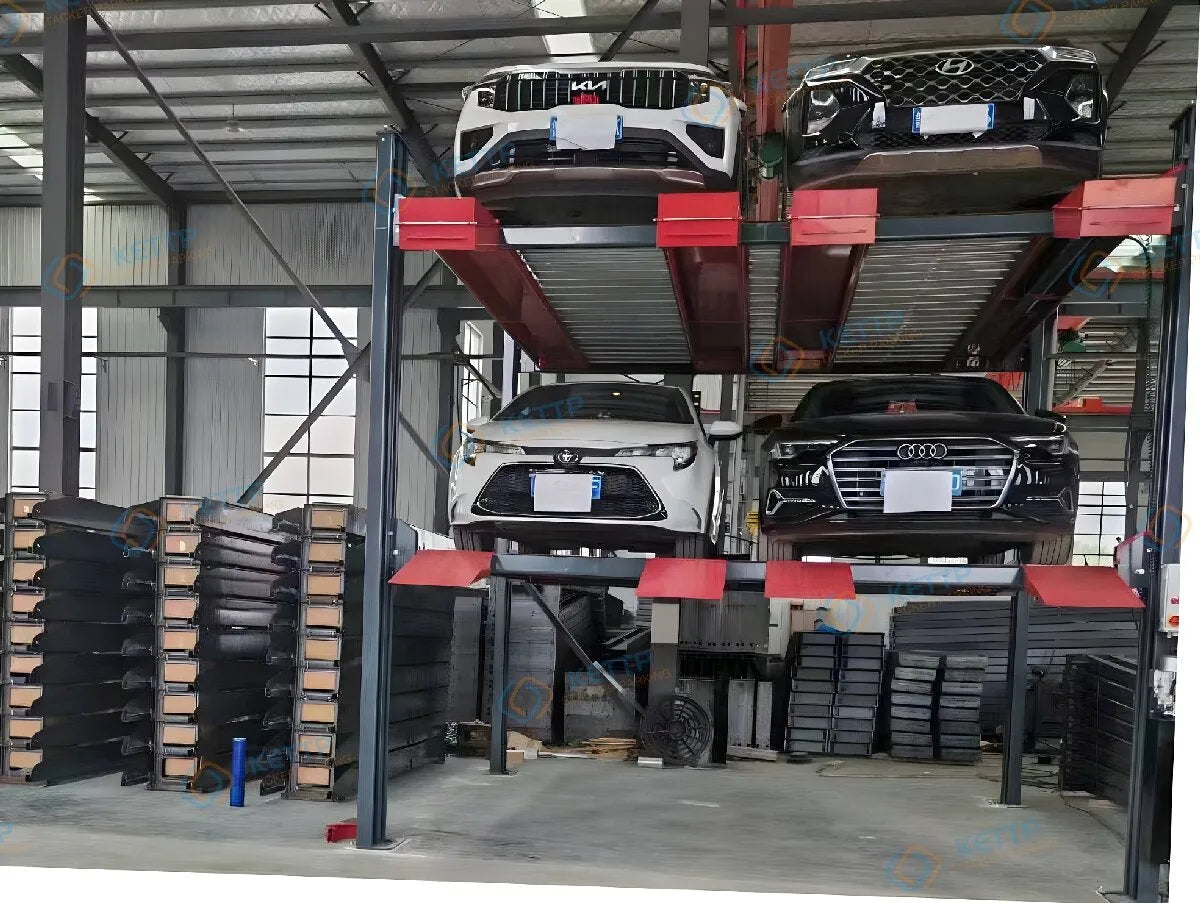

3ED Double-Wide Triple Car Stacker

Double Wide Triple Stacker Features:

1.   Full Range Mechanical Locks: Our lift is equipped with mechanical locks in all four posts, ensuring secure positioning at various heights for safe and reliable vehicle maintenance.

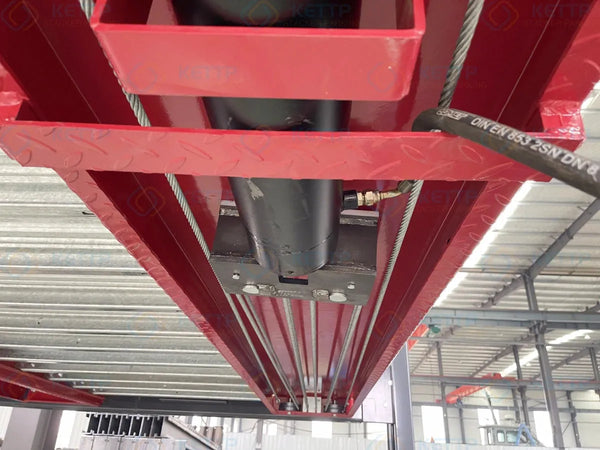

2.   Single Cylinder & Chain System: The 6 car triple stacker uses a single cylinder and chain mechanism, providing faster lifting speeds and smoother operation, enhancing efficiency and user experience.

3.   Automatic Shut-off Button Switch: For enhanced safety, the double wide triple stacker features an automatic shut-off button switch that halts operation immediately when the operator's hand releases the button, preventing accidental activation.

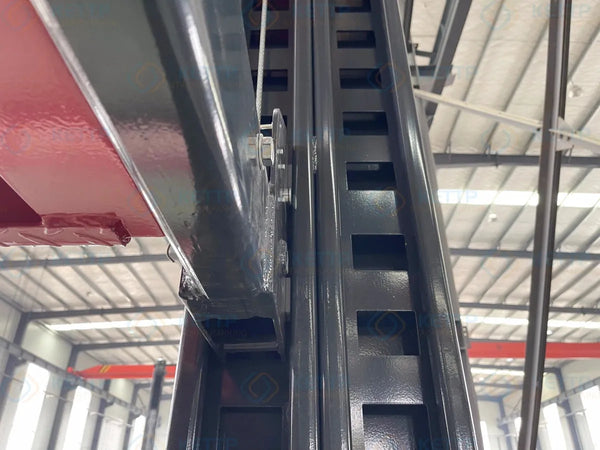

4.   Electromagnetic Lock Release: The double wide triple stacker incorporates an automatic locking system with latches inside the ladders. These locks are released electromagnetically through a push button on the operation box, ensuring secure and easy operation.

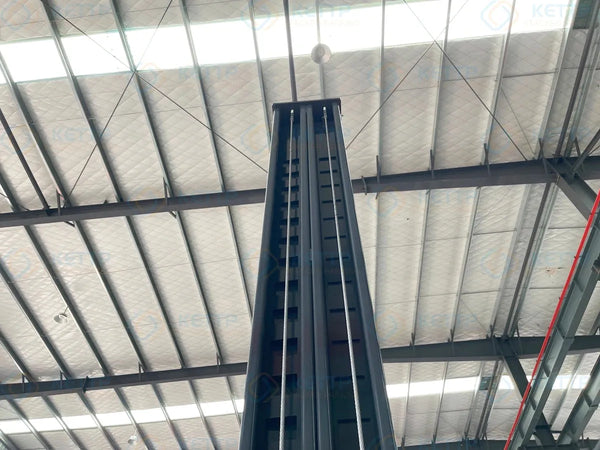

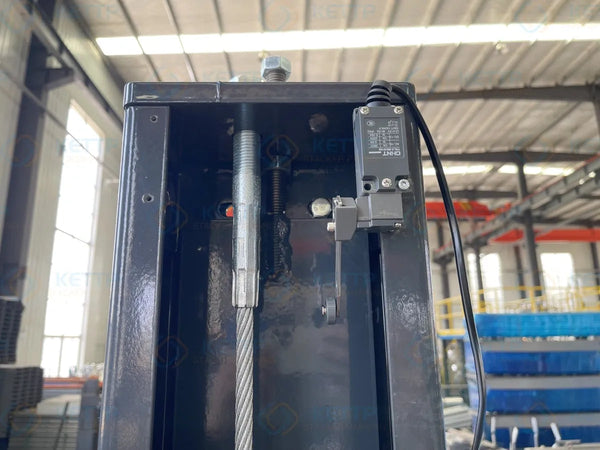

5.   Double Safety Locks: Each post includes double safety locks. The first is an adjustable safety lock ladder, and the second activates automatically in case of steel wire rupture, providing an additional layer of safety.

6.   Foldable Upper-Level Ramp: The ramp on the upper level can be folded, allowing for easier access and improved space management when not in use.

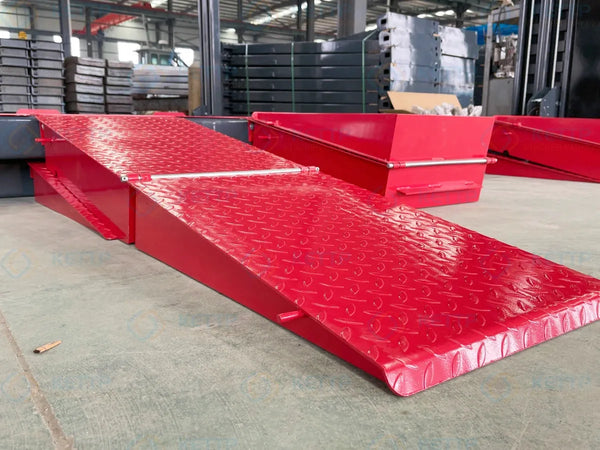

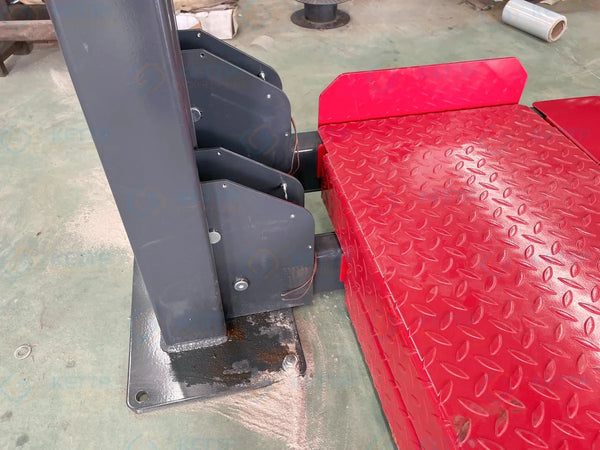

7.   Diamond Plate Runways and Ramps: The runways and ramps are constructed with diamond plate material, offering enhanced durability and slip-resistant surfaces for safer vehicle movement.

8.   Reinforced Structure: Engineered with reinforced components, our triple stacker lift boasts a sturdy and stable structure, capable of withstanding rigorous use in various automotive settings for years to come.

9.   Hydraulic Overloading Protection: Built-in hydraulic overloading protection safeguards the lift from damage caused by excessive weight, providing peace of mind and prolonging the lift's lifespan.

Outdoor Installation Option: With additional configuration options, our lift can be installed outdoors, expanding its functionality and versatility to meet the diverse needs of our customers. Contact our sales team for more information on outdoor installation capabilities.

Specification

1. Model: 3ED 1800 / 3ED 2000

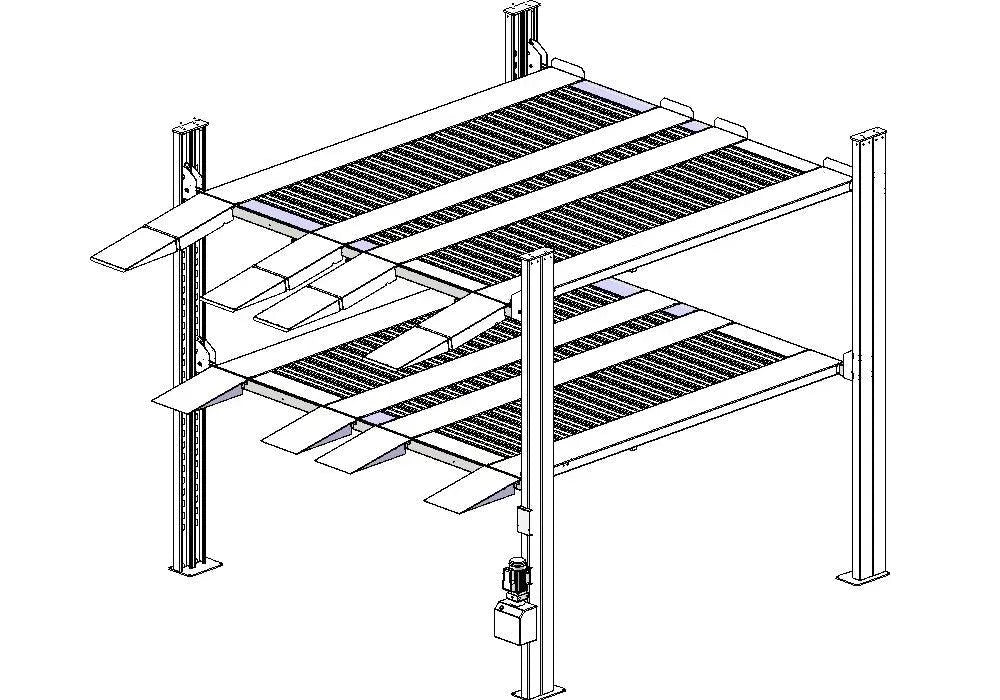

2. Structure: 4-post, double-wide dual platform (2 vehicles per level)
3. Total Vehicle Capacity: 6 vehicles (2 per level x 3 levels)
4. Rated Capacity: 2,000KG per vehicle (4,000KG per dual platform)
5. Level Height: 1,700mm (3ED 1800) or 2,000mm (3ED 2000)
6. Available Car Dimension: 5,000 x 1,900 x 1,650/1,950mm

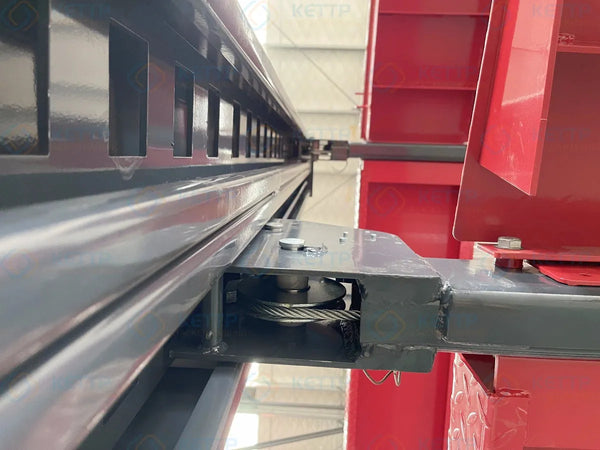

7. Drive System: Hydraulic cylinder + steel wire rope, independent per platform
8. Motor Power: 4KW
9. Power Supply: 110-450V, 50/60Hz, 3-phase
10. Control Voltage: 24V
11. Safety Lock: Dynamic double mechanical lock, automatic electric release
12. Lifting/Lowering Time: Approx. 90-100 seconds
13. Certification: CE
14. Warranty: 5-year structural / 1.5-year electrical / 1-year hydraulic

DIY Your Double Wide Triple Stacker – Customize to Stand Out:

Mechanical Structure:

1.   Customizable Color: Personalize your lift with any color from the RAL color number system at no additional cost. Make your lift match your brand or preferred aesthetic.

2.   Adjustable Platform Width: Choose a wider platform for more convenient parking or a narrower one to fit tight spaces. Adapt the lift to suit your specific spatial requirements.

3.   Flexible Control Box Placement: Place the control box on either the left or right post, depending on which side is more convenient for your setup, at no extra charge.

4.   Customizable Lift Height: Tailor the lift height to your needs, accommodating different vehicle sizes and service requirements for optimal flexibility.

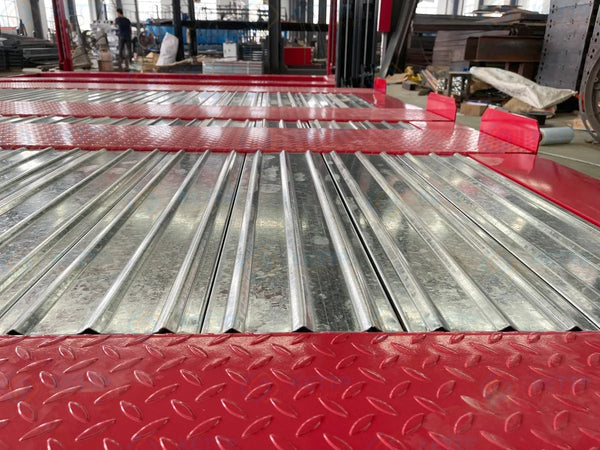

5.   Optional Middle Steel Plate or Wave Plate Cover: Select between a middle steel plate cover or a wave plate cover to suit your preference and enhance the lift’s functionality and aesthetics.

6.   Optional Lateral Protection Plate: Add lateral protection plates for added safety and durability, providing an extra layer of protection.

7.   Optional Aluminum Ramp: Opt for an aluminum ramp to reduce weight and improve ease of use, enhancing the lift’s overall performance.

8.   Outdoor Power Pack Cover: Ensure the longevity of your lift’s power pack with a protective cover designed for outdoor installations, shielding it from the elements.

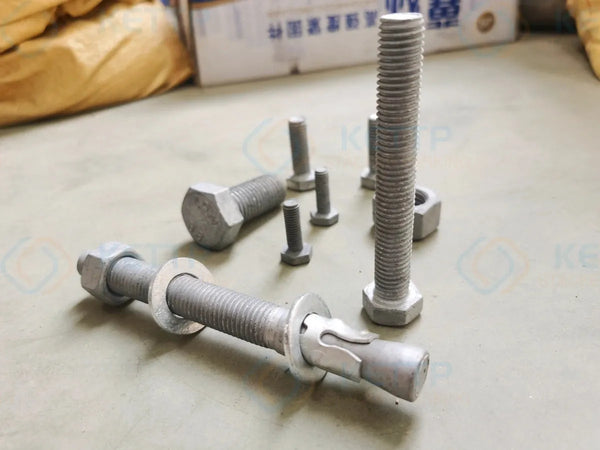

9.   Hot-Dip Galvanized Screw Nuts: All screw nuts are hot-dip galvanized for superior rust protection, ensuring durability and reliability in outdoor environments.

10.  Thickened Galvanized Platform Sheet: Enhance the durability and load-bearing capacity of the platform with a thickened galvanized sheet, ensuring long-term stability and performance.

Electric Control:

1.   Schneider Electric Components: Utilize Schneider Electric components for the electric control system, ensuring top-notch quality and reliable performance.

2.   Customizable Power Supply: Adapt the power supply to meet local requirements at no additional cost, ensuring compatibility and compliance with regional standards.

3.   IP65 Electric Control for Outdoor Use: Opt for IP65-rated electric control components for outdoor installations, double wide triple stacker offering protection against dust and water ingress for reliable performance in challenging environments.

Hydraulic System:

1.   Steel Oil Tank: Choose a steel oil tank at no extra cost for enhanced durability and corrosion resistance, ensuring a long-lasting hydraulic system.

2.   Anti-Explosion Valve: Include an anti-explosion valve for added safety, minimizing the risk of hydraulic system failure due to pressure buildup and ensuring safe operation in all conditions.

By offering these customization options, you provide customers with the flexibility to tailor their double wide triple stacker to their specific needs and preferences, making your product unique and highly adaptable to various requirements.
