3E Heavy-Duty Triple-Level Automotive Storage Lift (8-Post Design)

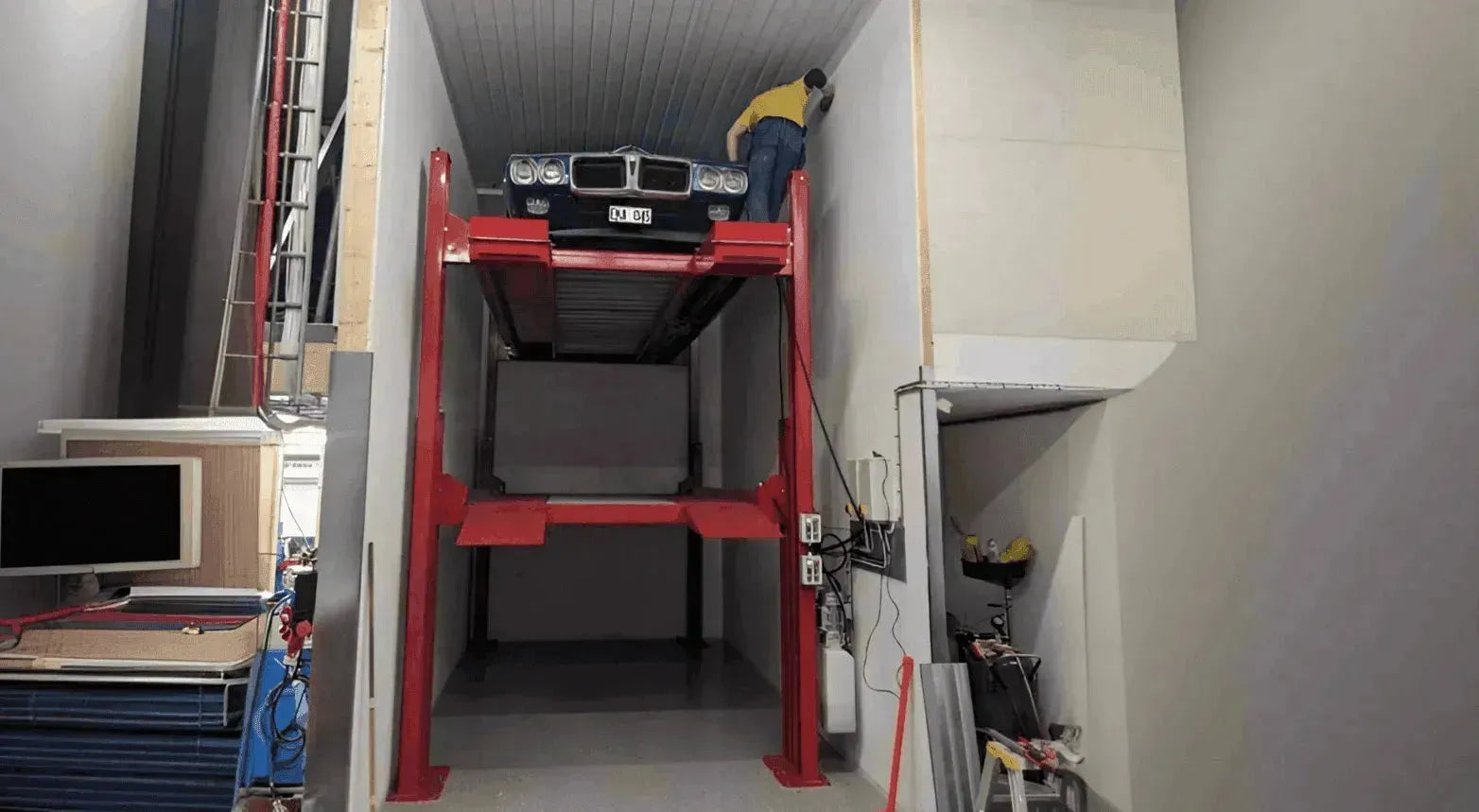

The KETTP 3E is an eight-post automotive storage lift built from two independently operating four-post frames stacked into a single footprint, creating three parking levels — ground, middle, and top — from one installation area. It is engineered for auto dealerships, classic car collections, and high-density vehicle storage where floor space is limited but capacity requirements stay high.

Structure & Drive System

Each of the two lift frames uses an independent hydraulic cylinder and steel wire rope transmission, giving a lifting height of approximately 2,100mm per level. Rated capacity is 3,600KG on the middle platform and 3,000KG on the top platform.

Safety Features

Double mechanical lock protection on all eight posts
Automatic shut-off button that engages when the operator releases the control
Steel wire rope anti-slack (anti-falling) protection on every post
Hydraulic overload protection
Diamond plate runways and a foldable upper-level ramp for safer loading

Manufacturing & Warranty

Posts and platforms are laser-cut and precision-formed for tight tolerances, then finished with durable powder coating. Posts can be shared when units are installed in a single row, improving structural stability and saving floor space. KETTP backs the 3E with a 5-year structural warranty, 1.5-year electrical warranty, and 1-year hydraulic warranty, and the lift carries CE certification.

Applications

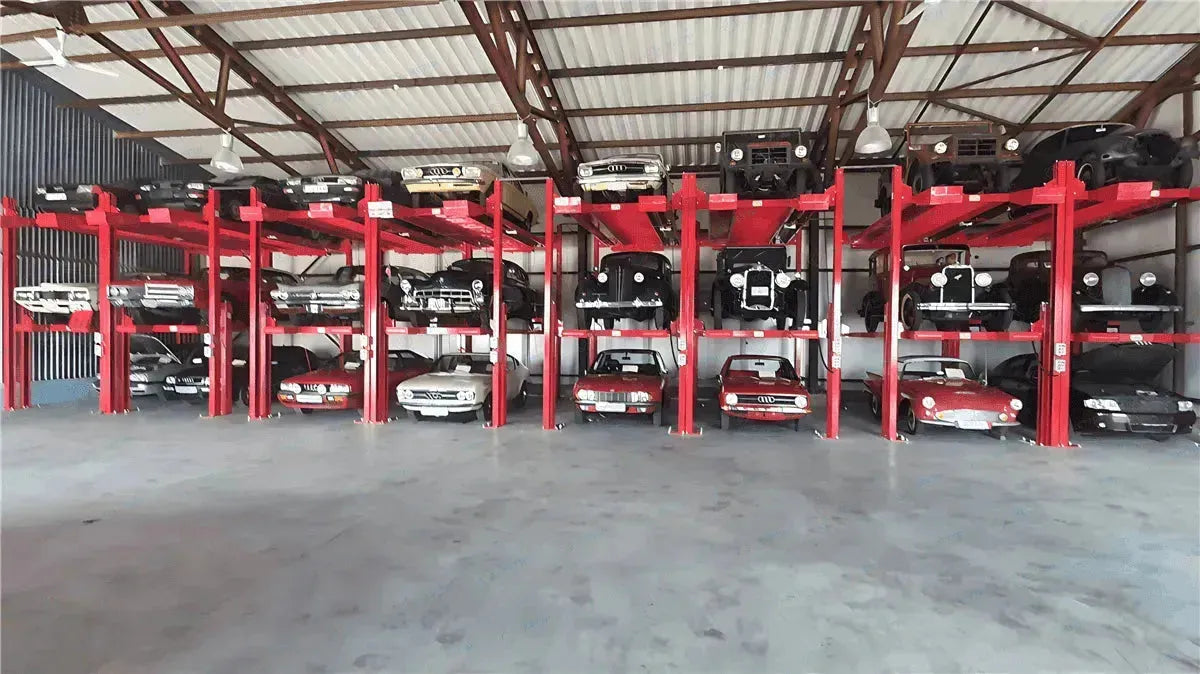

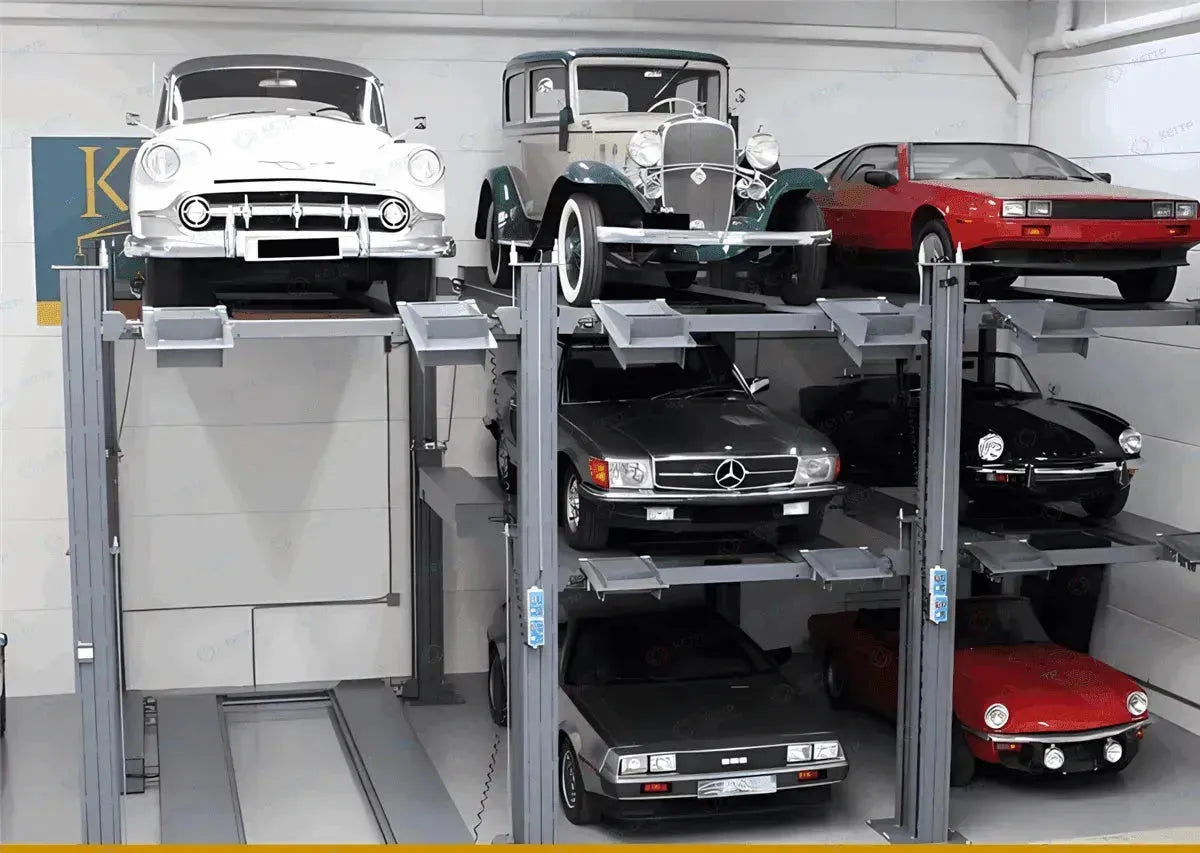

The 3E suits auto dealership inventory storage, classic and muscle car collections, heavy SUV and truck storage, residential garages, commercial vehicle storage, and restoration workshops. For a related lower-profile triple-level option, see the 3FS Tri-Level Auto Storage Lift. For a compact two-level 4-post lift, see the 2FH.

KEY FEATURES

Features

Full Range Mechanical Locks: Equipped with mechanical locks in all four posts, ensuring maximum safety during car storage lift operation.

Efficient Single Cylinder Design: Utilizes a single cylinder and steel rope mechanism, enabling faster lifting speeds and smooth operation.

Automatic Shut-Off Button: Features an automatic shut-off button switch that activates when the operator's hand is released, enhancing safety.

Automatic Locking System: Incorporates an automatic locking system for the latches inside ladders, with electromagnetic lock release through a push button on the operation box.

Double Safety Locks: Each post includes double safety locks for added security. This includes a one-piece adjustable safety lock ladder and an automatic lock that activates in case of steel wire rupture.

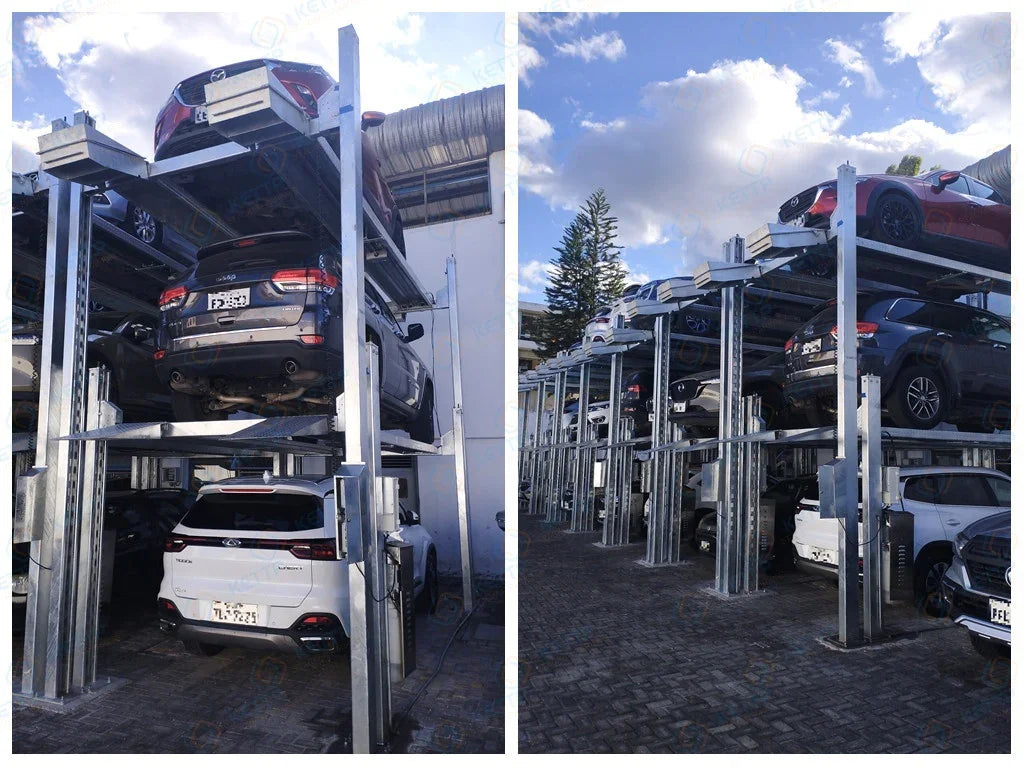

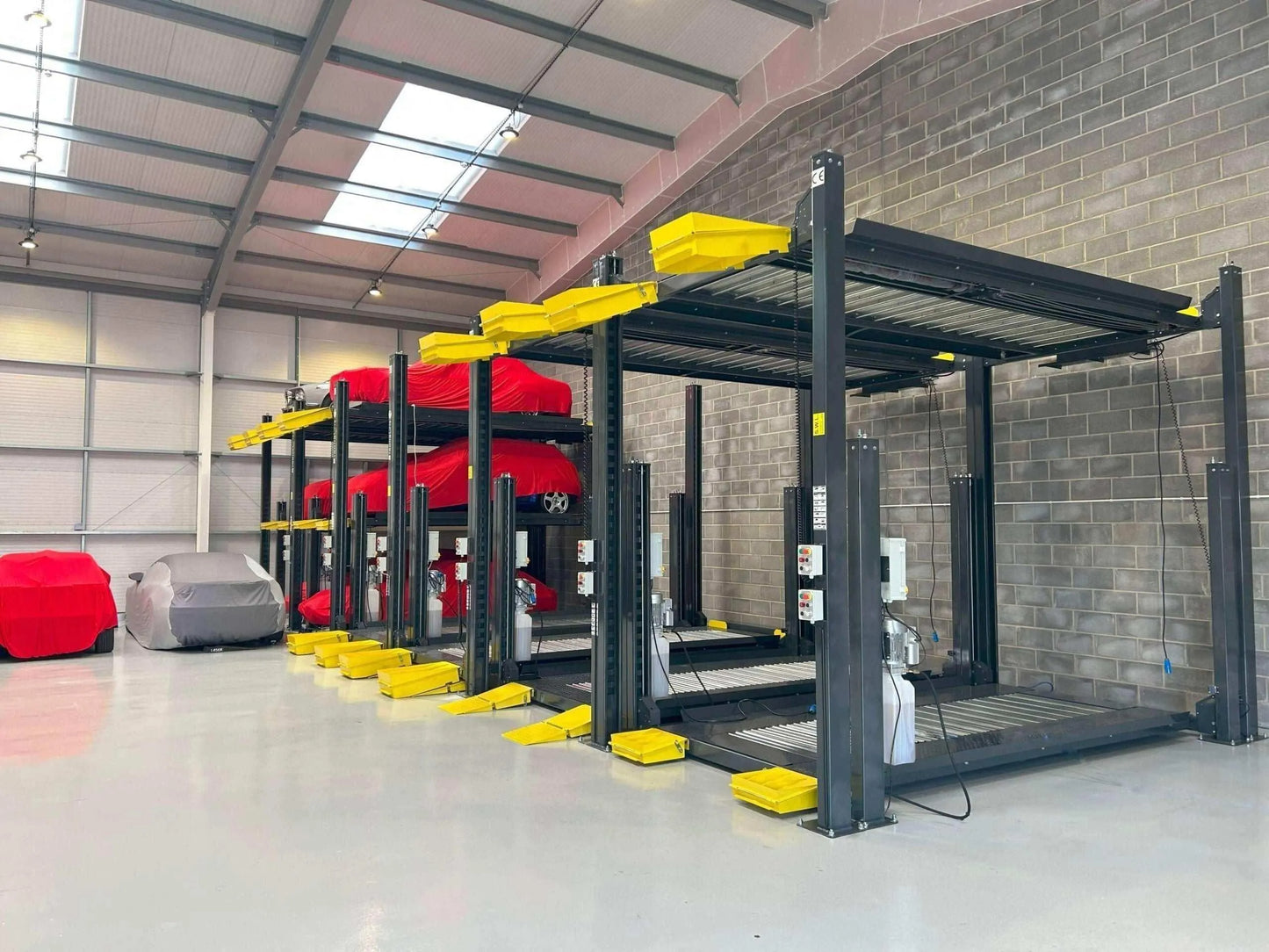

Shared Post Option: Posts can be shared when installed in a single row, increasing structural strength and stability.

Foldable Upper-Level Ramp: The ramp on the upper level can be folded when not in use, saving space and enhancing convenience.

Diamond Plate Runways and Ramps: Features diamond plate runways and ramps for enhanced traction and durability.

Reinforced Structure: Boasts a reinforced structure for more stable working conditions, even under heavy loads.

Hydraulic Overloading Protection: Includes hydraulic overloading protection to prevent potential overload situations, ensuring long-term reliability and safety.

Outdoor Installation Compatibility: Suitable for outdoor installation with additional configuration options available. Contact our sales team for more information on outdoor setup requirements.

SPECIFICATIONS

Specification

Model: 3E
Structure: Two independent 4-post frames (8 posts total), 3 parking levels
Lifting Height (per level): Approx. 2,100mm
Rated Capacity, Middle Platform: 3,600KG
Rated Capacity, Top Platform: 3,000KG
Drive System: Hydraulic cylinder + steel wire rope
Power Unit: 2.2KW
Safety Locks: Double mechanical lock on all 8 posts
Certification: CE
Warranty: 5-year structural / 1.5-year electrical / 1-year hydraulic

OPTIONS

Automotive Storage Lift Customization Options
Mechanical Structure

Customizable Color: Choose from a wide range of colors according to RAL color numbers, allowing you to match your lift to your branding or personal taste, at no extra cost.

Adjustable Platform Width: Tailor the platform width to fit your parking needs, whether you require more spacious parking or have limited land space available.

Flexible Control Box Placement: Opt for a control box on either the left or right post, depending on your convenience, at no additional charge.

Customizable Lift Height: Customize the lift height to accommodate different vehicle sizes or installation requirements, ensuring maximum versatility, at no extra cost.

Optional Cover Plates: Choose between a middle steel plate cover or wave plate cover for added protection and aesthetics.

Optional Lateral Protection Plate: Enhance safety with the option for a lateral protection plate.

Optional Aluminum Ramp: Opt for an aluminum ramp for enhanced durability and aesthetics.

Rust Protection: Choose hot-dip galvanized structures and screw nuts, as well as thickened galvanized platform sheets, for enhanced rust protection, ideal for outdoor installations.

Outdoor Power Pack Cover: Ensure durability and protection with an optional power pack cover designed specifically for outdoor use.

Rust-Resistant Screws: All screw nuts are hot-dip galvanized for additional rust protection in outdoor environments.

Electric Control

Premium Branding: Enjoy the reliability and quality of Schneider Electric for your electric control system, ensuring optimal performance and longevity.

Customizable Power Supply: Tailor the power supply to meet local requirements, providing compatibility and safety in any location, at no additional cost.

Weatherproof Design: Opt for IP65-rated electric control for outdoor installations, ensuring durability and reliability even in harsh weather conditions.

Car Lift Storage Hydraulic System

Steel Oil Tank: Benefit from a durable steel oil tank, provided at no extra cost, for added strength and longevity.

Safety Features: Enhance safety with the option for an anti-explosion valve, ensuring reliable operation and protection against potential hazards.

With these customizable options, you can create a automotive storage lift that meets your exact specifications and stands out in the market. Contact us today to discuss your custom lift solution!
