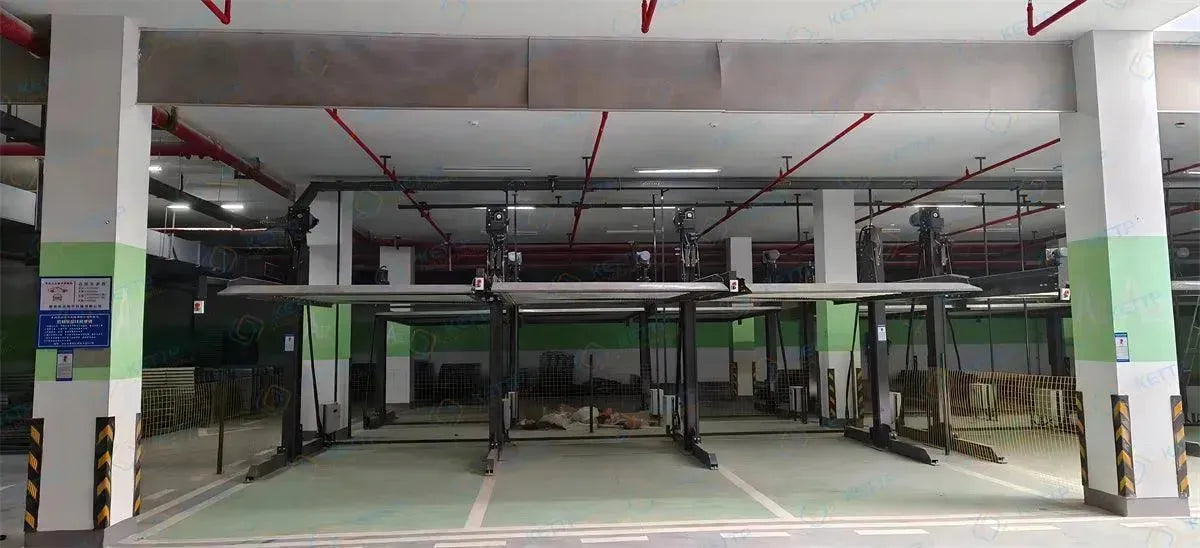

2 levels 2 post MOTOR type parking lift (2TM)
2 levels 2 post MOTOR type parking lift (2TM)
CECERTIFICATE
APPROVED
SECUREDSHIPPING WORLDWIDE
GUESTSATISFACTION
GUARANTEE
FASTDELIVERY
TIME
FREESPARE
PARTS
CHINAQUALITY MANUFACTURER
Intorduction
The 2TM model is a two-post parking lift designed with an electric motor drive system, offering distinct advantages over hydraulic drives, particularly in lower temperature environments. With a capacity of 2000KG, it is ideal for parking sedans in both commercial and residential buildings. Its easy installation, shared post design, and multiple safety features make it a versatile solution for various parking needs.
KEY FEATURES
KEY FEATURES
1. Motor & Double Chain Drive: Equipped with an electric motor and double chain drive system for efficient and reliable operation.
2. Electric Anti-falling Lock: Positioned at the top for enhanced safety, preventing accidents and ensuring secure parking.
3. Hydraulic Overloading Protection: Incorporates hydraulic overloading protection to safeguard against potential overload situations, promoting long-term reliability and safety.
4. Individual Electric Motor and Control Panel: Each lift is equipped with its own electric motor and control panel, providing independent operation and control.
5. Galvanized Platform Wave Plate: Utilizes a galvanized platform wave plate to offer superior rust protection, ensuring durability and longevity even in harsh environments.
6. Reinforced H Steel Structure: Features a reinforced H steel structure for enhanced stability and durability during operation.
7. Outdoor Installation: Configurable for outdoor installation with additional options available.
Contact our sales team for more information on outdoor setup requirements.
SPECIFICATIONS
SPECIFICATIONS
- MODEL 2TM 2000
- LIFTING HEIGHT 1800MM
- RATED CAPACITY 2000KG
- PLATFORM LENGTH 3811MM
- MOTOR POWER 2.2KW
- EQUIPMENT SIZE(MM) 3811X2610X3132
- AVAILABLE CAR DIAMENTION(MM) 5000 X 1900 X 1750
- POWER SUPPLY 110-450V, 50 OR 60HZ, 1 OR 3 PHASES
- OPERATION KEY SWITCH/PUSH BUTTON
- OPERATION POWER 24 V
- MECHANICAL LOCK TOP POSTION LOCK
- LOCK RELEASE AUTOMATIC ELECTRIC
- LIFING TIME 40 SECONDS
- LOWER TIME 40 SECONDS
- FIINISHING POWDER COATING
OPTIONS
OPTIONS
Mechanical Structure:
1. Customizable Color: Choose from a wide range of colors using RAL color numbers, allowing you to match your lift to your branding or personal taste, at no extra cost.
2. Adjustable Platform Width: Tailor the platform width to fit your parking needs, whether you require more spacious parking or have limited land space available.
3. Motor Pack Cover: Ensure durability and protection with an optional motor pack cover designed specifically for outdoor use, shielding the motor from environmental elements.
4. Rust Protection: All screw nuts are hot dip galvanized for enhanced rust protection, ensuring longevity and reliability even in outdoor environments.
5. Optional Thickened Galvanized Platform Sheet: Choose to upgrade to a thickened galvanized platform sheet for added durability and corrosion resistance, ideal for outdoor installations.
Electric Control:
1. Quality Branding: Opt for Schneider Electric for your electric control system, ensuring reliability, performance, and longevity.
2. Customizable Power
Supply: Tailor the power supply to meet local requirements, providing compatibility and safety in any location, at no additional cost.
3. Remote Control: Enjoy the convenience of remote control operation, allowing you to operate your lift from a distance with ease.
Outdoor-Ready IP65 Electric Control: Choose IP65-rated electric control for outdoor installations, ensuring durability and reliability even in harsh weather conditions.
