2 Levels Two-Post Double-Cylinder Parking Lift (2TD)

Key Features of the KETTP 2TD Two-Post Parking Lift

• Full-range mechanical locks secure the platform at multiple heights.
• Double hydraulic cylinders and double balance chains support synchronized lifting and lowering.
• Shared-post layout helps save space in multi-bay parking projects.
• Reinforced structure supports heavy-duty residential, commercial, and workshop use.
• Hydraulic overload protection helps prevent lifting beyond the rated capacity.
• Head-in and back-in parking compatibility improves vehicle access flexibility.

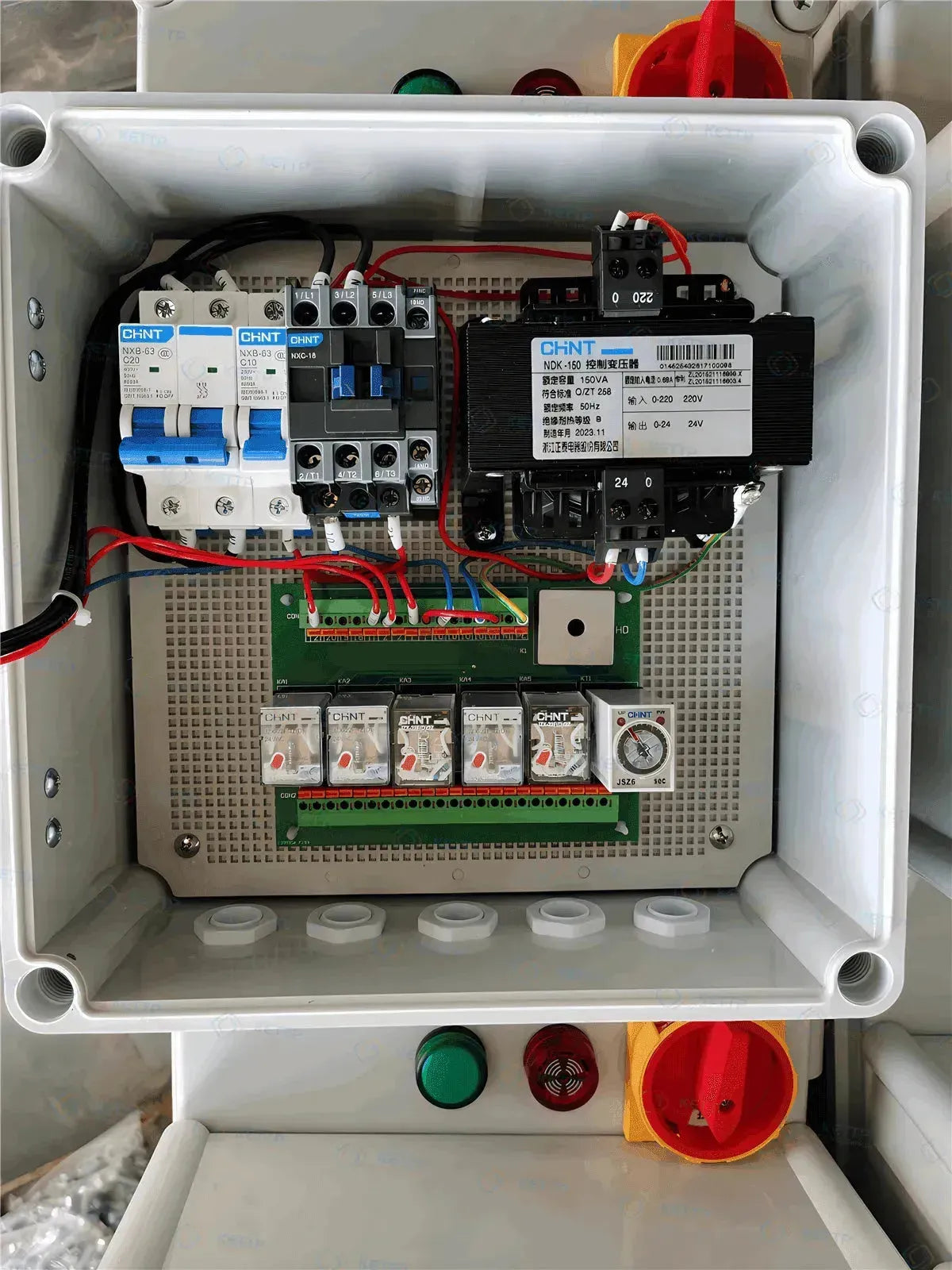

• PCB wiring system simplifies installation and maintenance.
• Automatic shut-off key switch improves operator safety during lift operation.
• Indoor and outdoor configurations are available for different project environments.

The 2TD series is suited for double stack parking, vehicle storage, residential garages, commercial parking lots, and automotive workshops where a two-post heavy-duty parking lift is required.

Technical Specifications for the KETTP 2TD Two-Post Parking Lift

• Models: 2TD-2300, 2TD-2700, and 2TD-3200
• Rated capacity: 2300 kg, 2700 kg, or 3200 kg
• Lifting height: 2100 mm for all models
• Drive system: double hydraulic cylinder direct drive with double balance chain synchronization
• Available vehicle size: 5000 x 2000 mm for 2300/2700 models, or 5500 x 2200 mm reinforced for 3200 Heavy Duty model
• Motor power: 2.2 kW for 2300/2700 models, or 3 kW for 3200 model
• Power supply: 110-450 V, 50 or 60 Hz, 1 or 3 phase, factory-configurable to local standard
• Control voltage: 24 V DC safe low voltage
• Lifting and lowering time: approximately 60 seconds, depending on load
• Mechanical lock: full-range ratchet lock, 17 lock stages, automatic electric release
• Minimum clear ceiling for two sedans: 3200 mm
• Minimum clear ceiling for SUV over sedan: 3700 mm
• Minimum clear ceiling for SUV over SUV: 4200 mm, for 2700/3200 models only
• Foundation requirement: concrete slab at least 150 mm thick, compressive strength at least 20 MPa, level and crack-free at anchor points
• Surface finish: electrostatic powder coating standard, hot-dip galvanized structure available for outdoor package
• Outdoor package: hot-dip galvanized frame, stainless steel power unit cover, wrinkle-finish powder coating, and galvanized anchor hardware
• Warranty: 5-year structural, 1.5-year electrical, and 1-year hydraulic warranty from date of shipment

Customization Options for the KETTP 2TD Two-Post Parking Lift

The 2TD double-cylinder parking lift can be configured for residential garages, commercial parking areas, workshops, and outdoor projects. Options are grouped by structure, electrical control, and hydraulic system so each project can match local site conditions.

Mechanical structure options

• Custom RAL color selection for branding or site requirements
• Adjustable platform width for compact or wider parking bays
• Left- or right-side control arm placement based on site layout
• Top-mounted control arm option for selected installations
• Adjustable lifting height for different vehicle and ceiling-clearance needs
• Hot-dip galvanized structure, screw nuts, and platform sheets for outdoor corrosion protection
• Outdoor power pack cover for weather protection

Electrical and hydraulic options

• Schneider Electric component option for the control system
• Power supply configuration for local voltage and phase requirements
• Remote control and lock-control configuration options
• IP65-rated electrical control option for outdoor installations
• Steel oil tank option for hydraulic durability
• Anti-explosion valve option for additional hydraulic safety protection
