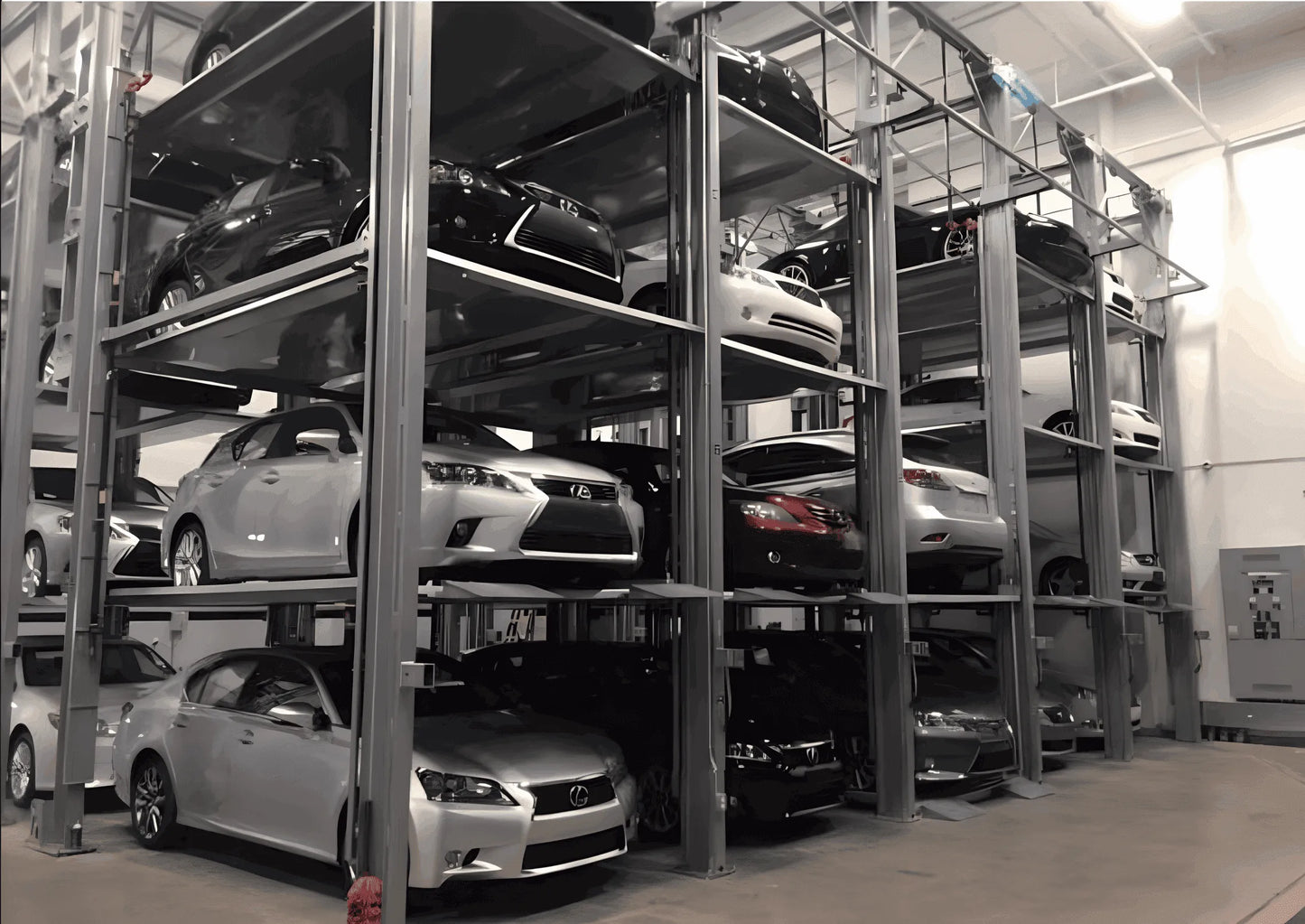

3C/4P/5P Multi-Level Car Stacker System

Key Features of the 3C and 4P Car Stackers

Triple and Quadruple Capacity: Maximizes parking space by accommodating up to three or four vehicles per unit.

Heavy Load Capacity: Supports vehicles weighing up to 3000KG, suitable for sedans, SUVs, and light trucks.

3 and 4 Level Parking: Multi-level vertical parking requires clearing lower levels to access higher platforms.

Front and Rear Ramps: Enables bidirectional entry and exit for improved flexibility in vehicle management.

Steel Cable Lifting System: Ensures smooth, stable lifting with cables connected to four corners of the platform.

Shared Posts: Saves land space and reduces installation costs by minimizing structural posts.

Multiple Safety Protections: Includes overload protection, anti-fall devices, and emergency stop systems for secure operation.

Simple Transmission Structure: Designed for smooth, efficient operation with minimal maintenance.

Ideal for Commercial Use: Perfect for high-capacity parking lots, garages, and other commercial applications.

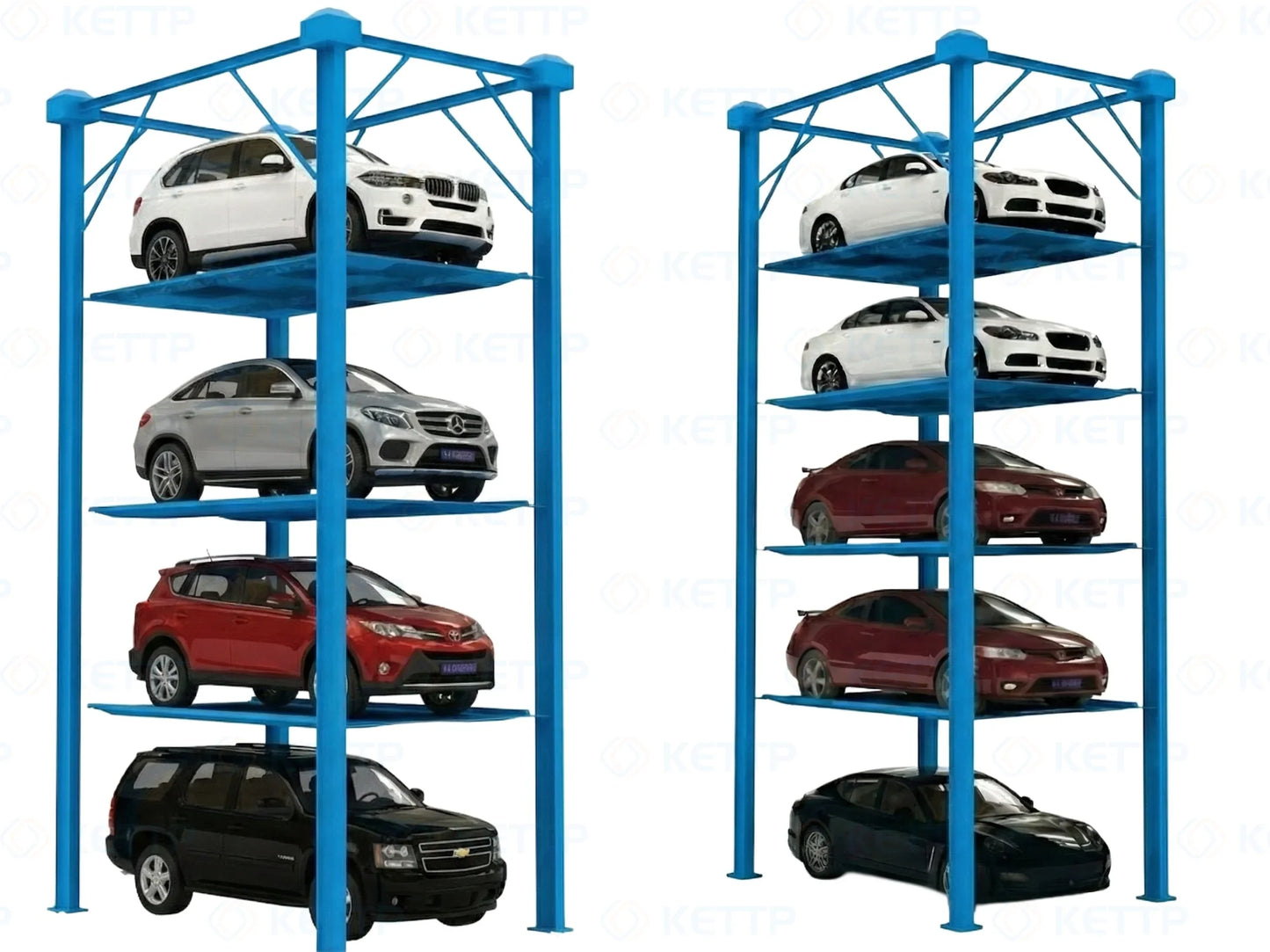

4P Commercial Quad Stacker (4 Levels)

1. Rated Capacity: 3,000KG per platform
2. Lifting Height: 2,100mm per level
3. Power Unit: 7.5KW industrial, shared across array
4. Access: Bidirectional drive-through, both ends
5. Array Design: Shared-column commercial array
6. Safety Lock: Primary anti-falling lock + secondary safety hook

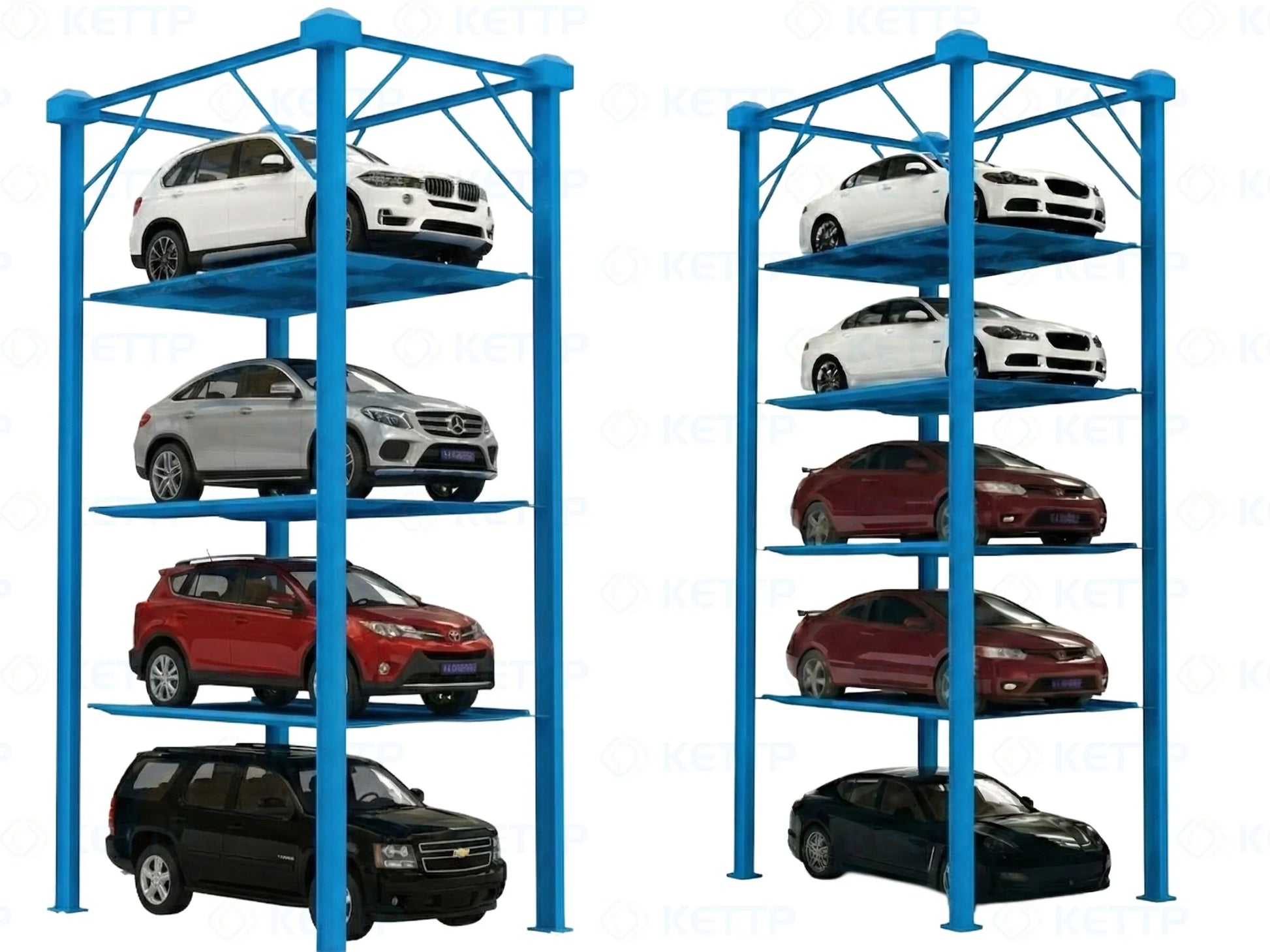

5P Five-Level Car Stacker (5 Levels)

1. Rated Capacity: 2,000KG per level, all 5 levels
2. Lifting Height: 1,850mm per level
3. Power Unit: 7.5KW centralized, serves full assembly
4. Array Design: Shared-post tandem, no horizontal limit
5. Installation: Surface-mounted, no pit required

3C Triple-Level Car Stacker (3 Levels)

1. Rated Capacity: Up to 3,000KG
2. Access: Front and rear ramps, bidirectional
3. Drive: Steel cable lifting, connected to all 4 corners
4. Structure: Shared posts for reduced footprint and cost

Shared Across All Models

1. Drive System: Hydraulic cylinder + steel wire rope
2. Control Voltage: 24V DC
3. Certification: CE
4. Warranty: 5-year structural / 1.5-year electrical / 1-year hydraulic

Applications and Benefits

The 3 car stackers and quad stackers are designed for commercial parking facilities, office buildings, and residential complexes where space is limited. By utilizing vertical space, these systems significantly increase parking capacity, offering a smart solution for modern urban parking challenges.

Their robust construction and advanced safety features ensure reliability and peace of mind for operators and users. The inclusion of front and rear ramps enhances usability, while the shared post design keeps costs manageable for developers.

Kettp’s 3 car stackers, 4 car stackers, and triple stack car lifts are at the forefront of modern parking solutions. By maximizing space, ensuring safety, and reducing costs, these stackers are essential for high-demand commercial and urban environments. Whether it’s a 3 car stacker lift for a smaller facility or a quad car stacker for larger garages, Kettp delivers exceptional value and performance.
