4E Quad Car Stacker and 4-Level Parking Lift

The KETTP 4E quad car stacker is a four-post, 4-level parking lift that stores four vehicles in the footprint of a single parking bay. Its overlapping platform design creates a high-density car storage solution for vehicle inventory, garages, and commercial parking projects.

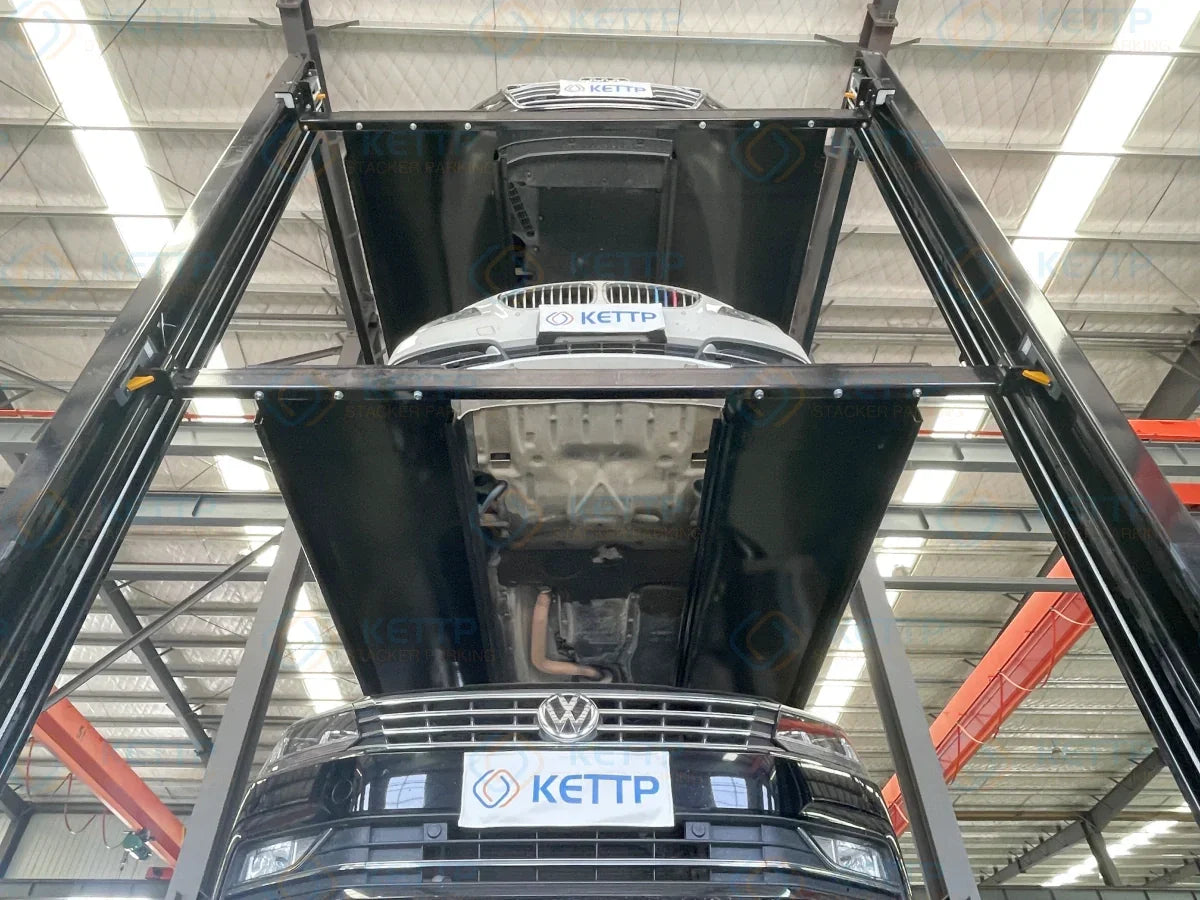

Four-Vehicle Vertical Storage

The system provides three elevated platforms plus a ground-level space, with a rated capacity of 2,000 kg per platform. Approximate 1,850 mm ground-level clearance supports SUVs and crossovers, while the upper levels provide about 1,600 mm clearance for sedans and compact vehicles up to 2,000 mm high.

Hydraulic Drive and Safety Locks

A 3.0 kW hydraulic cylinder and steel wire rope drive raises the platforms, with 24V DC control. Electric anti-falling locks, full-range mechanical locks, U-shape safety hooks, and wire-rope protection provide layered platform retention. Individual key-operated control boxes are standard; a centralized commercial power pack is optional for larger arrays.

High-Density Parking Applications

Use the 4E four-car stacker for dealerships, vehicle storage facilities, car condos, valet operations, classic-car collections, and fleet depots. Shared-column row installations can reduce the structural footprint and steel requirement per vehicle. The 4E is CE certified and includes a 5-year structural, 1.5-year electrical, and 1-year hydraulic warranty.

KEY FEATURES

4E Quad Car Stacker Key Features:

Four-vehicle storage: three elevated platforms plus one ground-level parking space.

Rated capacity: 2,000 kg per elevated platform.

Hydraulic cylinder and steel wire rope drive with 3.0 kW motor power and 24V DC control.

Layered safety: electric anti-falling locks, full-range mechanical locks, U-shape safety hooks, and wire-rope detachment protection.

Individual key-operated control boxes; centralized commercial power pack available for larger arrays.

Shared-column row installations help reduce the structural footprint per vehicle.

CNC laser-cut structure with durable powder coating, CE certification, and low-maintenance design.

SPECIFICATIONS

4E Quad Car Stacker Specifications:

Model: 4E
Structure: Four-post, stackable overlapping platforms
Total vehicle capacity: 4 vehicles (three elevated platforms plus ground level)
Rated capacity: 2,000 kg per elevated platform
Ground-level clearance: approximately 1,850 mm
Upper-level clearance: approximately 1,600 mm; vehicle height up to 2,000 mm
Drive system: hydraulic cylinder and steel wire rope
Motor power: 3.0 kW
Control voltage: 24V DC
Safety locks: electric anti-falling locks, full-range mechanical locks, U-shape safety hooks, and wire-rope protection
Control: individual key-operated control boxes; optional centralized power pack
Certification: CE
Warranty: 5-year structural, 1.5-year electrical, 1-year hydraulic

OPTIONS

Applications:

The 4E quad car stacker is suited to dealership inventory storage, vehicle warehouses, car condos, valet operations, classic-car collections, fleet depots, and high-density residential or commercial parking.

The overlapping-platform, 4-level parking lift design helps store four vehicles within one parking bay. Adjacent units can share common columns in row installations for a more efficient commercial parking layout.
