Automated Shttle Parking System (PPY)

Key Features

✅ High Automation & Efficiency

The shuttle mechanical parking system ensures quick vehicle retrieval and convenient forward-only parking.

Vehicles are accessed instantly, supporting simultaneous entry and exit.

✅ Versatile Setup

The system is suitable for above-ground, underground, and hybrid garages.

It supports different layouts, including ground-level, half-ground half-underground, and fully underground setups.

The entrance can be front-facing or at a 90-degree angle.

✅ Superior Safety & Reliability

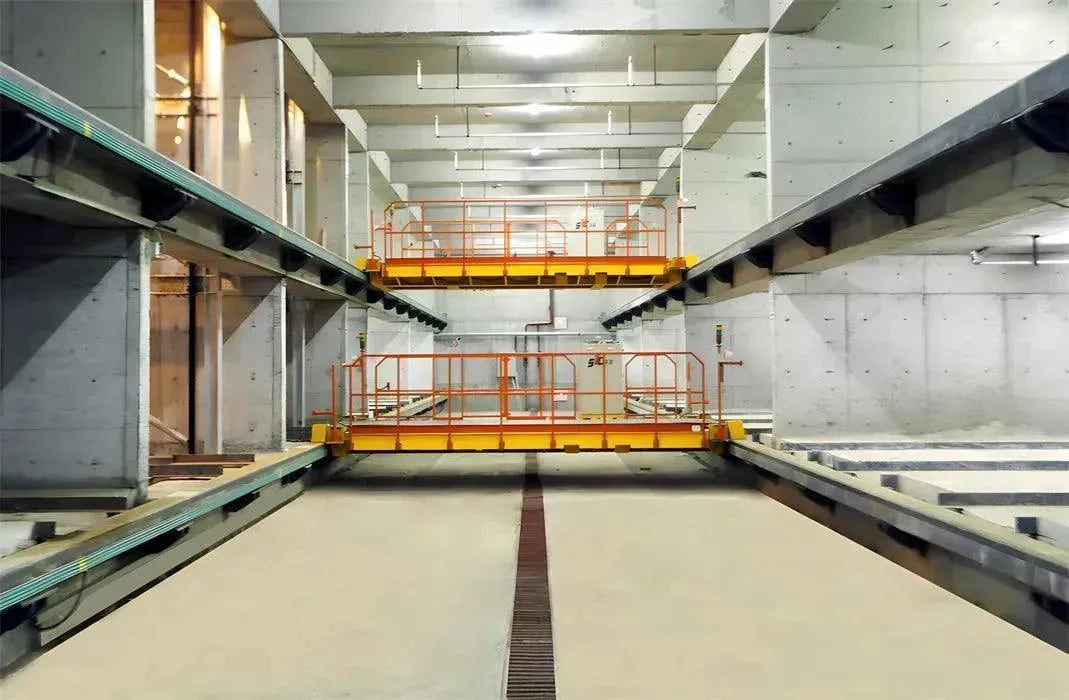

The shuttle automated parking system is fully enclosed, ensuring secure and low-noise operation.

Advanced comb exchange technology provides stable and safe movement.

Multiple safety measures protect vehicles and users from damage.

✅ Cost-Effective & Flexible Design

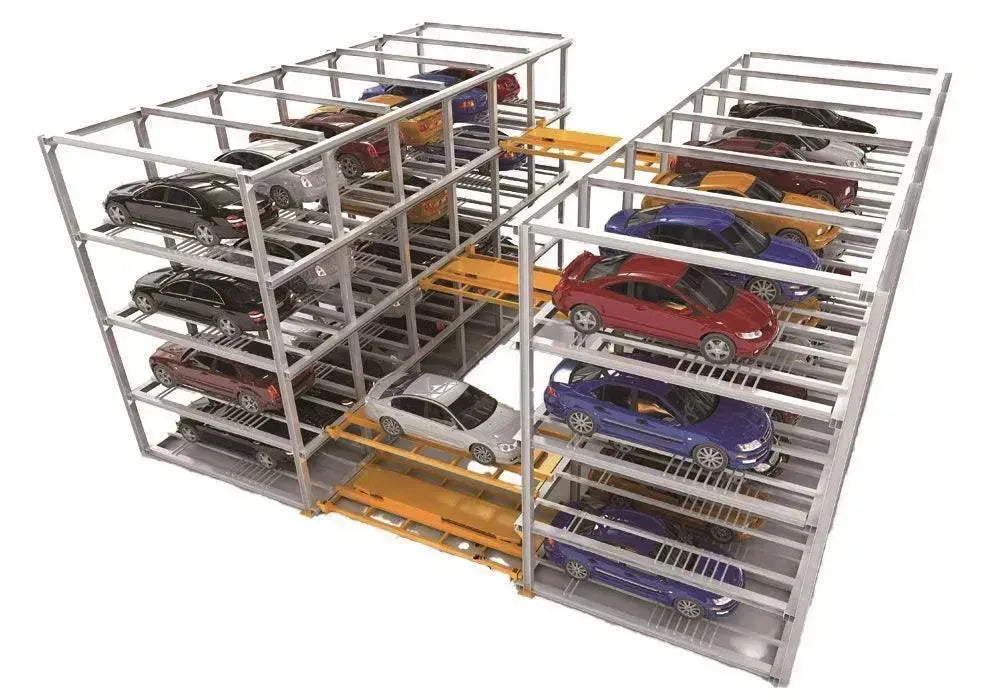

The shuttle parking system maximizes space efficiency, accommodating more vehicles per area.

It requires low investment and maintenance costs.

Various access control options, including IC card, automatic, semi-automatic, and manual operation, increase flexibility.

✅ Eco-Friendly

The system produces zero vehicle emissions, making it a clean and green solution.

Electric car charging stations are available for sustainable vehicle storage.

✅ High Load Capacity

The shuttle vehicle parking system supports vehicles up to 3 tons.

It is ideal for large and luxury cars.

The system can be configured with 2 to 15 levels.

✅ User-Friendly Operation

The system is easy to operate with centralized management or self-operation options.

Enhanced convenience features include voice prompts, LED displays, and entrance observation mirrors.

Theft and vandalism risks are minimized with a secure, enclosed design.

Scope of Application

The shuttle parking system is ideal for:

Public and commercial parking lots where space is limited such as shuttle parking airport.

Residential buildings, office complexes, and urban parking areas.

Outdoor and narrow parking zones requiring efficient storage.

Locations needing multi-form combinatorial parking systems.

Technical Specifications

Vehicle Dimensions:

Up to 5.3m (L) × 1.9m (W) × 1.55m (H) or 5.3m (L) × 1.9m (W) × 2.05m (H)

Vehicle Weight Capacity: Up to 2.5 tons

Motor Power & Speed:

Lift: 15-22kW, speed 28-42m/min

Slide: 0.2kW, speed 9.5m/min

Carry: 1.5kW, speed 30m/min

Turn: 2.2kW, speed 3.0rpm

Operation Modes: IC card, automatic, semi-automatic, and manual

Access Mode: Forward-in, forward-out

Power Supply: 3-phase, 5-wire, 380V, 50Hz

Why Choose a Shuttle Parking System?

A shuttle parking system is an advanced, fully automated solution that maximizes space efficiency while ensuring fast and secure vehicle storage. Here’s why it stands out:

✅ High Efficiency – Automates parking and retrieval, reducing wait times and optimizing space usage.
✅ Maximized Space Utilization – Accommodates more vehicles in a smaller footprint compared to traditional parking.
✅ Fully Automated & User-Friendly – Eliminates the need for drivers to navigate tight spaces, offering seamless operation.
✅ Enhanced Safety – Prevents vehicle damage, theft, and vandalism with a secure enclosed structure.
✅ Eco-Friendly Solution – Reduces emissions by eliminating unnecessary engine idling during parking.
✅ Versatile Applications – Suitable for underground, above-ground, and mixed-use parking layouts.
✅ Cost-Effective & Low Maintenance – Requires less operational staff, minimizing long-term expenses.

Compared to stack parking systems, puzzle parking systems, rotary parking systems, the shuttle parking system offers superior automation, security, and efficiency, making it ideal for urban environments and high-demand parking areas.

The PPY fully automated shuttle parking system is a game-changer in modern vehicle storage. It integrates cutting-edge automation, high safety standards, and efficient space utilization. Compared to shuttle parking airport setups, cart parking systems, rotary parking systems, stack parking systems, and puzzle parking systems, it offers a more advanced and compact solution. This system provides an eco-friendly, cost-effective, and high-capacity parking alternative for urban environments.
