Semi-Automated Pit Puzzle Parking System (PSH 2+1)

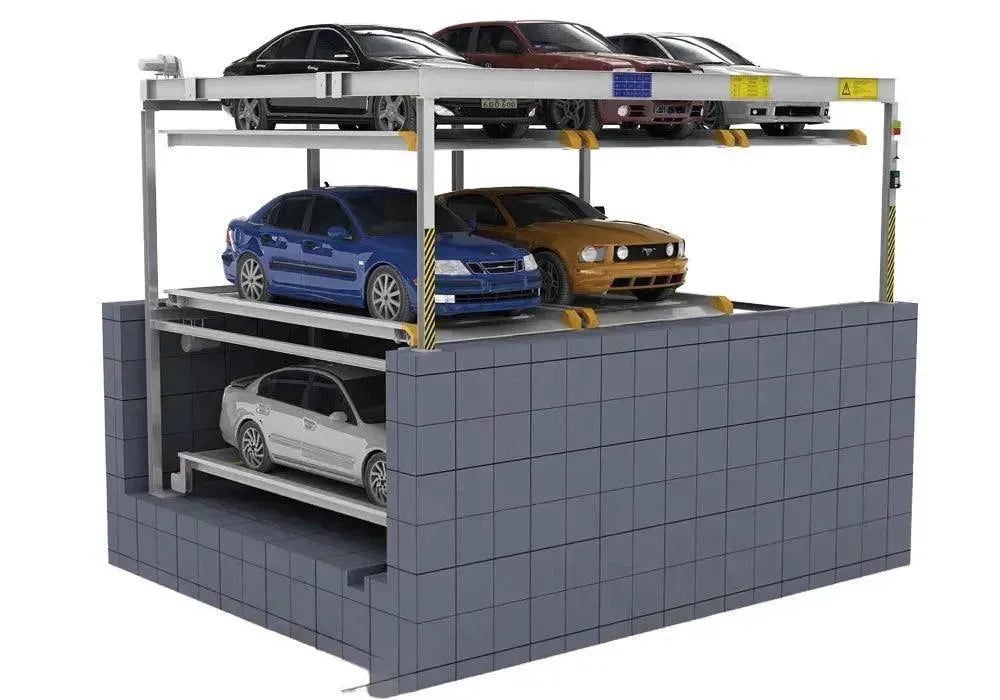

The PSH 2+1 pit puzzle parking system combines two above-ground levels with one pit level to deliver a cutting-edge semi-automatic vehicle storage solution. Utilizing a PLC control system, it offers precise management of vertical and horizontal movements, maximizing parking space efficiency. The system’s modular design, starting with a standard configuration of three cars wide, is expandable to meet larger capacity needs. Pit puzzle parking PSH 2+1 Ideal for urban settings, it is well-suited for public parking garages, apartment basements, and administrative buildings, where space optimization and operational reliability are critical.

Click here for get Semi-automated parking system

KEY FEATURES

Pit Puzzle Car Parking System Features
Robust Steel Structure
Engineered with an H steel design for superior stability, strength, and straightforward installation.
Durable Construction
Incorporates strip-rolled side beams and high-strength bolts, ensuring enhanced safety and a longer lifespan.
Safety-Centric Electrical Design
Equipped with a meticulously designed electrical system featuring self-locking mechanisms for consistent and secure operation.
PLC Auto Control
Powered by an advanced PLC system, enabling smooth, efficient, and reliable automated operations.
User-Friendly Operation
Simplified controls ensure hassle-free parking and vehicle retrieval for all users.
High Customization
Fully adjustable in length, width, height, and capacity, tailored to specific project requirements.
Ideal for Residential and Commercial Use
A versatile solution that enhances parking space utilization while prioritizing safety and convenience across diverse settings.
Independent Functionality: Allows vehicles to be parked or retrieved without moving other vehicles.
Capacity Options: Available in 2T and 2.5T capacities to accommodate different vehicle sizes.
Customizable Dimensions: Vehicle heights, widths, and lengths can be tailored to specific requirements.
Installation Preferences:
Indoor Installations: Recommended for optimal performance and durability.
Outdoor Installations: Enclosure to be provided by the client for protection against environmental factors.

SPECIFICATIONS

Pit Puzze Car Park Safety Features

The PSH 2+1 pit puzzle parking is equipped with a comprehensive suite of safety features to ensure reliable and secure operation:

Emergency Stop Button: Instantly halts system operation in case of an emergency.
Lifting Limit Protector: Prevents over-extension of the lift for enhanced safety.
Car Wheel Stop Pad: Secures vehicles in position during parking and retrieval.
Cross-Sliding Location Switch: Ensures precise alignment during horizontal movement.
Power-Off Brake Device: Automatically engages brakes during power outages to prevent movement.
Cross-Sliding Limit Protector: Prevents overtravel during cross-sliding operations.
Electric Current Overload Protector: Protects the system from electrical surges and overloading.
Security Interlock Device: Ensures synchronized operation of all system components for added safety.
Car Over-Length Detector: Alerts users if a vehicle exceeds the designated parking space.
Caution Device in Operation: Provides audio and visual signals during system operation for safety awareness.
Mechanical Safety Lock & Electronic Sensor Lock: Dual-lock system to prevent accidental movement and ensure maximum safety.

These features collectively deliver a robust safety framework of Pit puzzle parking, making the PSH 2+1 an ideal choice for secure and efficient parking solutions.
