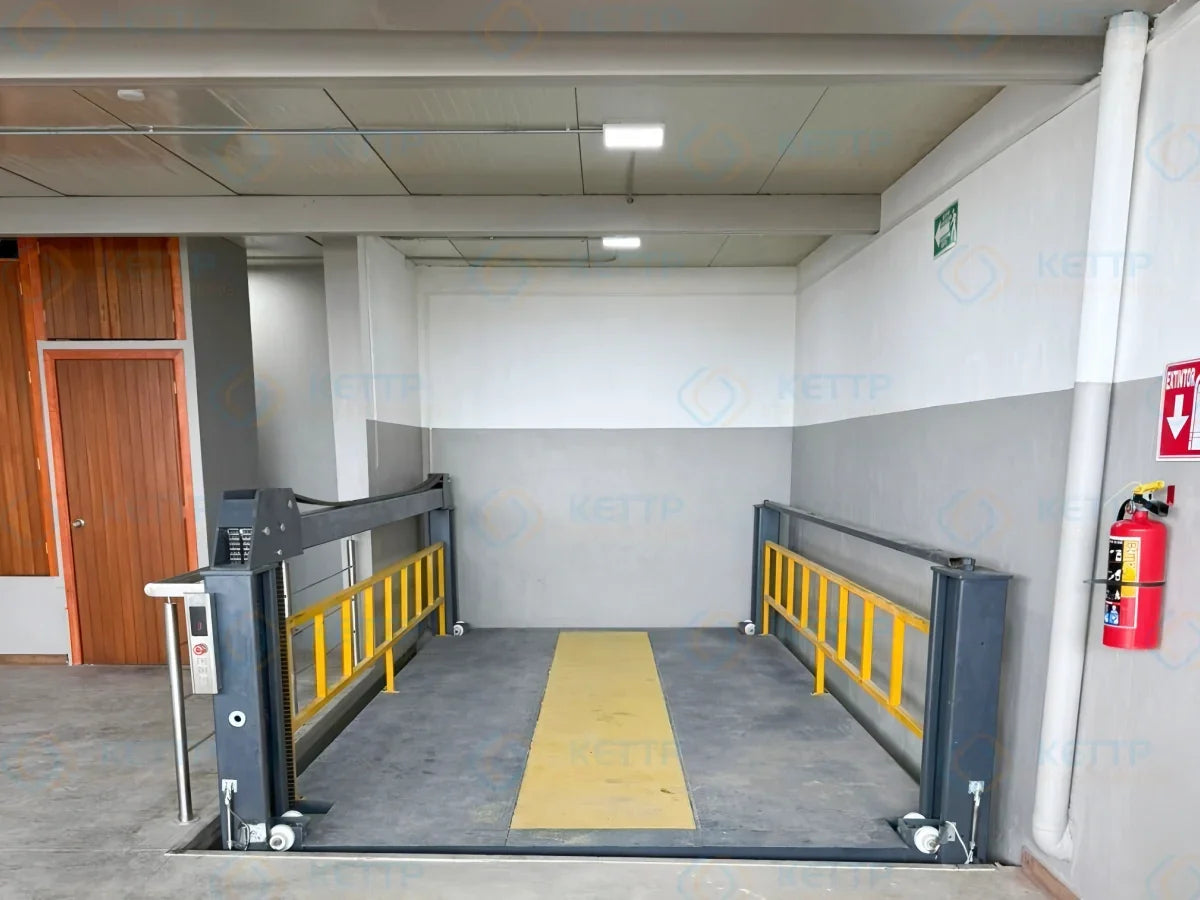

Four post vehicle floor lift (FF)

Sale Sold out

CECERTIFICATE
APPROVED

SECUREDSHIPPING WORLDWIDE

GUESTSATISFACTION
GUARANTEE

FASTDELIVERY
TIME

FREESPARE
PARTS

CHINAQUALITY MANUFACTURER

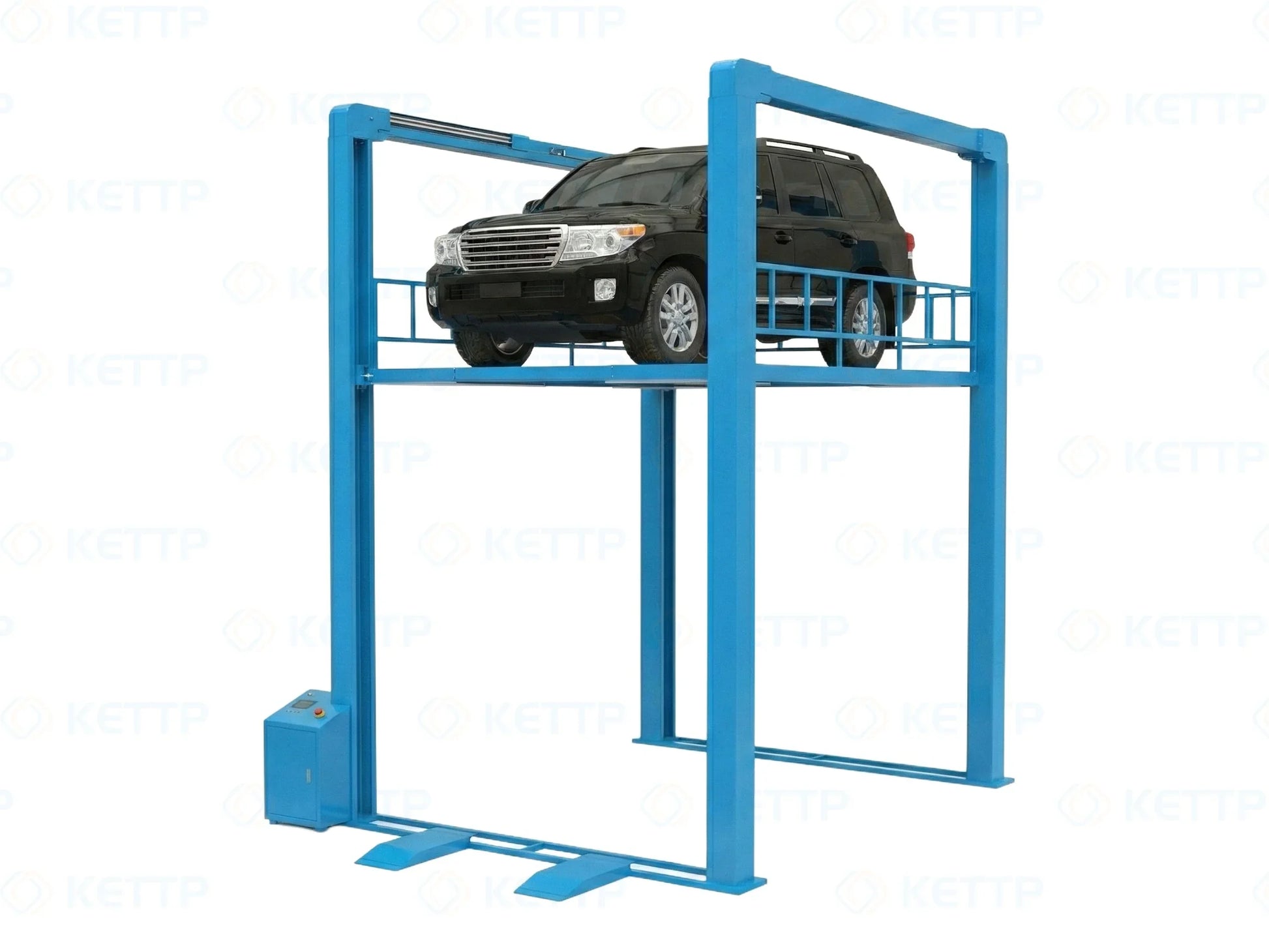

FF Vehicle Lift Car Elevator

Need the most cost-effective solution to move vehicles from one floor to another?
FF is an ideal solution for connecting different floors, especially when heavy construction work needs to be avoided.

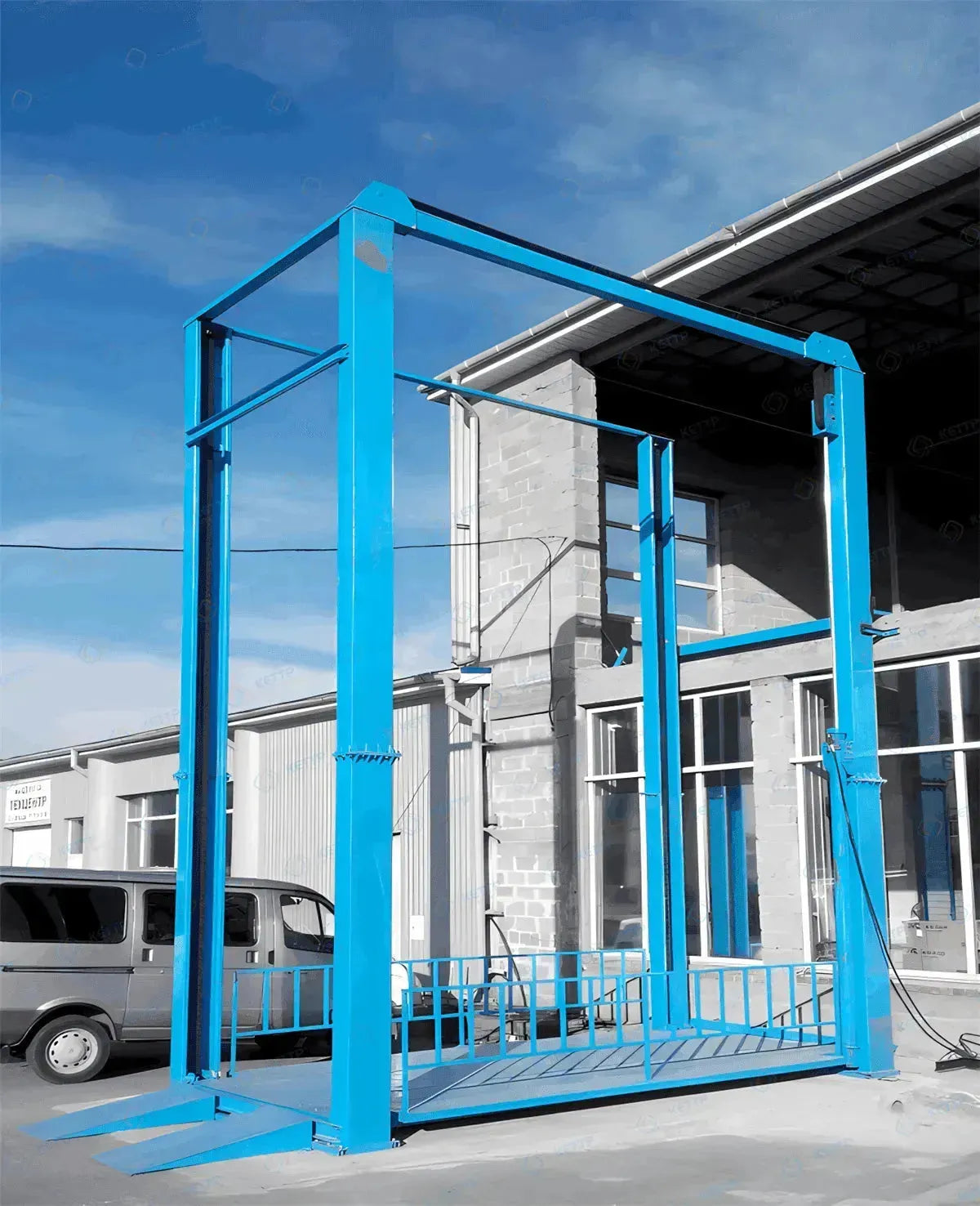

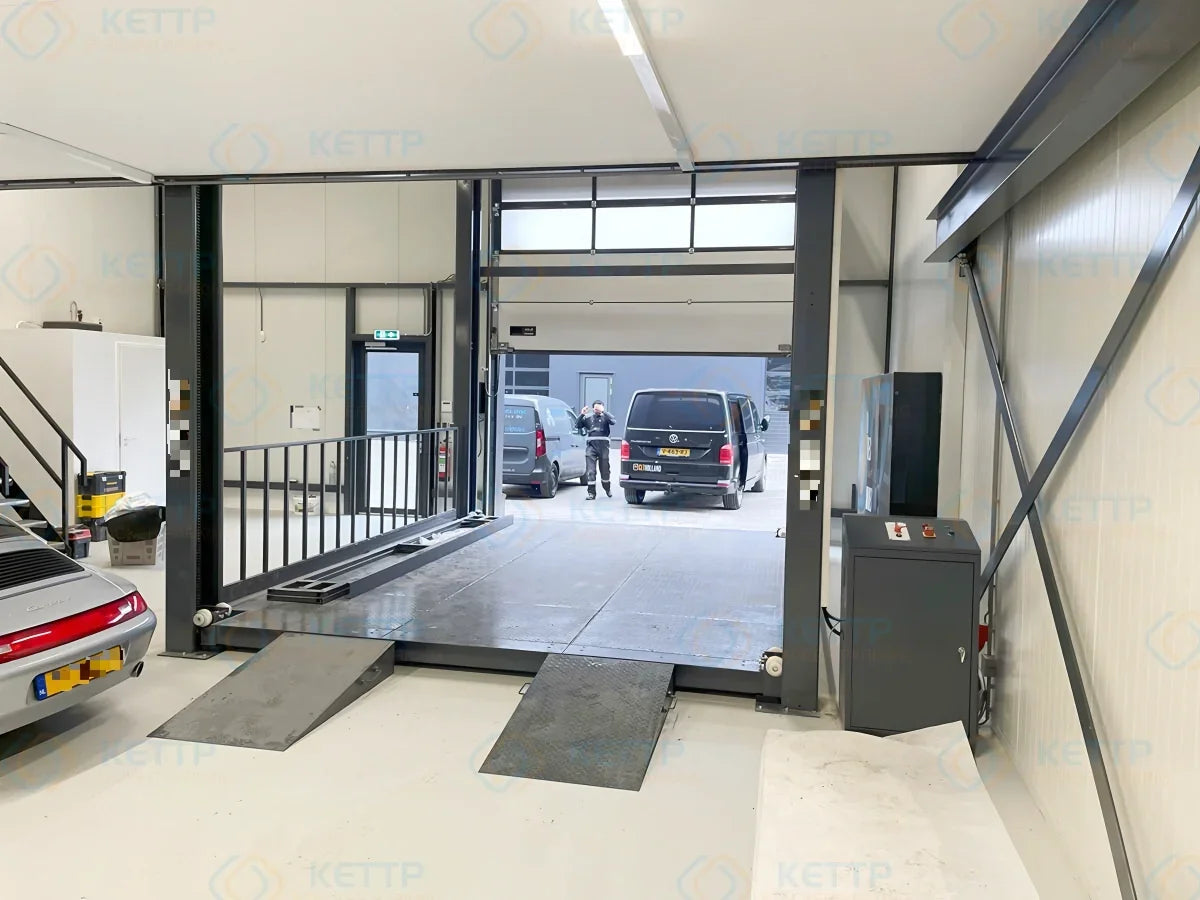

Its unique four-post structure makes the system self-supporting, allowing it to be installed directly on the ground. Alternatively, a small pit of only 200 mm depth can be prepared to provide easier and more comfortable access at the entry level.

The FF is highly customizable in terms of dimensions, lifting capacity, and travel height, making it suitable for various vehicle types and diverse project requirements.

Low-frequency use floor lift Car Elevator 2FH

KEY FEATURES

Advantages
Easy Operation

Simple and intuitive operation with minimal training required.

Super Cost-Effective

An ideal replacement for traditional concrete ramps, requiring much less space and significantly lower construction costs.

Multi-Level Control

Operation panels are available at each stopping level for convenient access.

Superior Lifting System

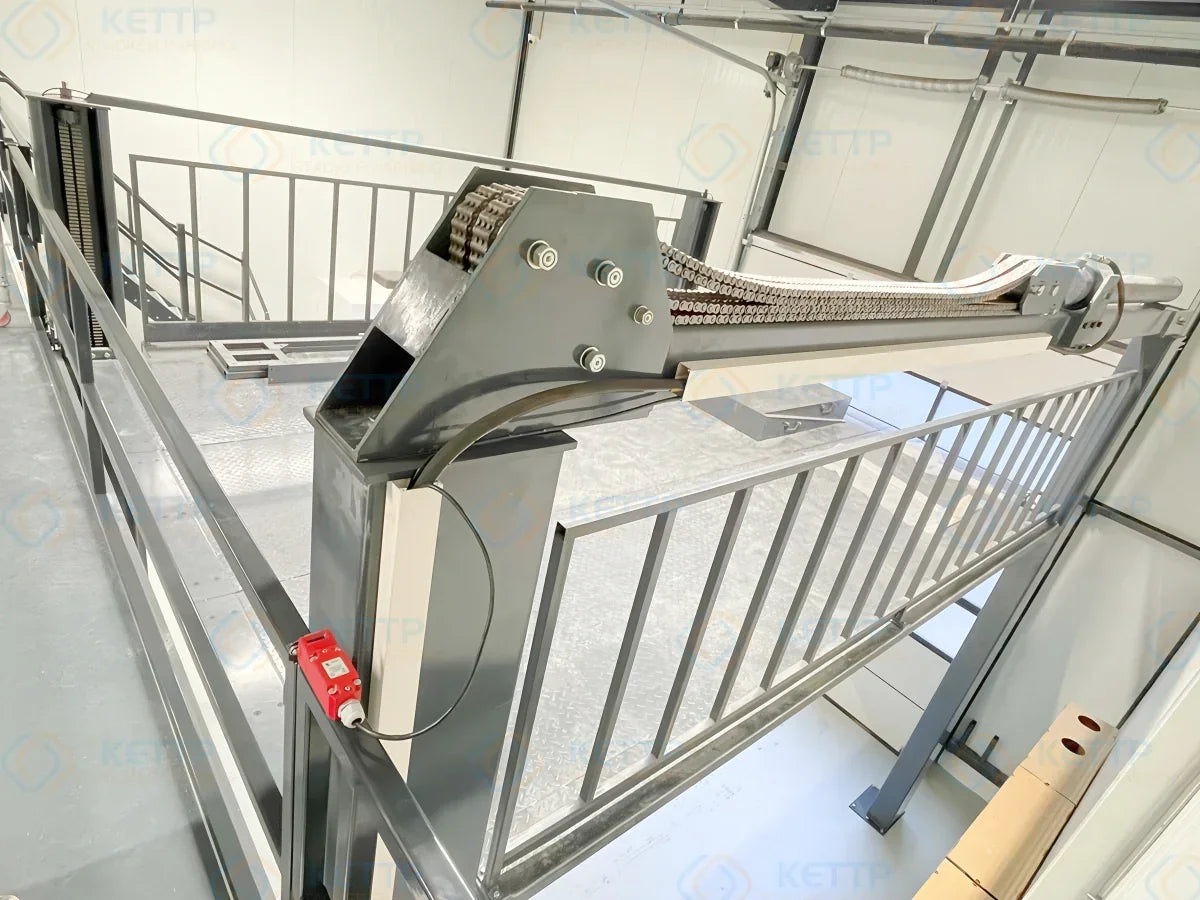

Heavy-duty hydraulic cylinder combined with double lifting chains, ensuring stable and reliable operation.

Simple Installation

Modular and straightforward structure; major components are pre-assembled in the factory, reducing on-site installation time.

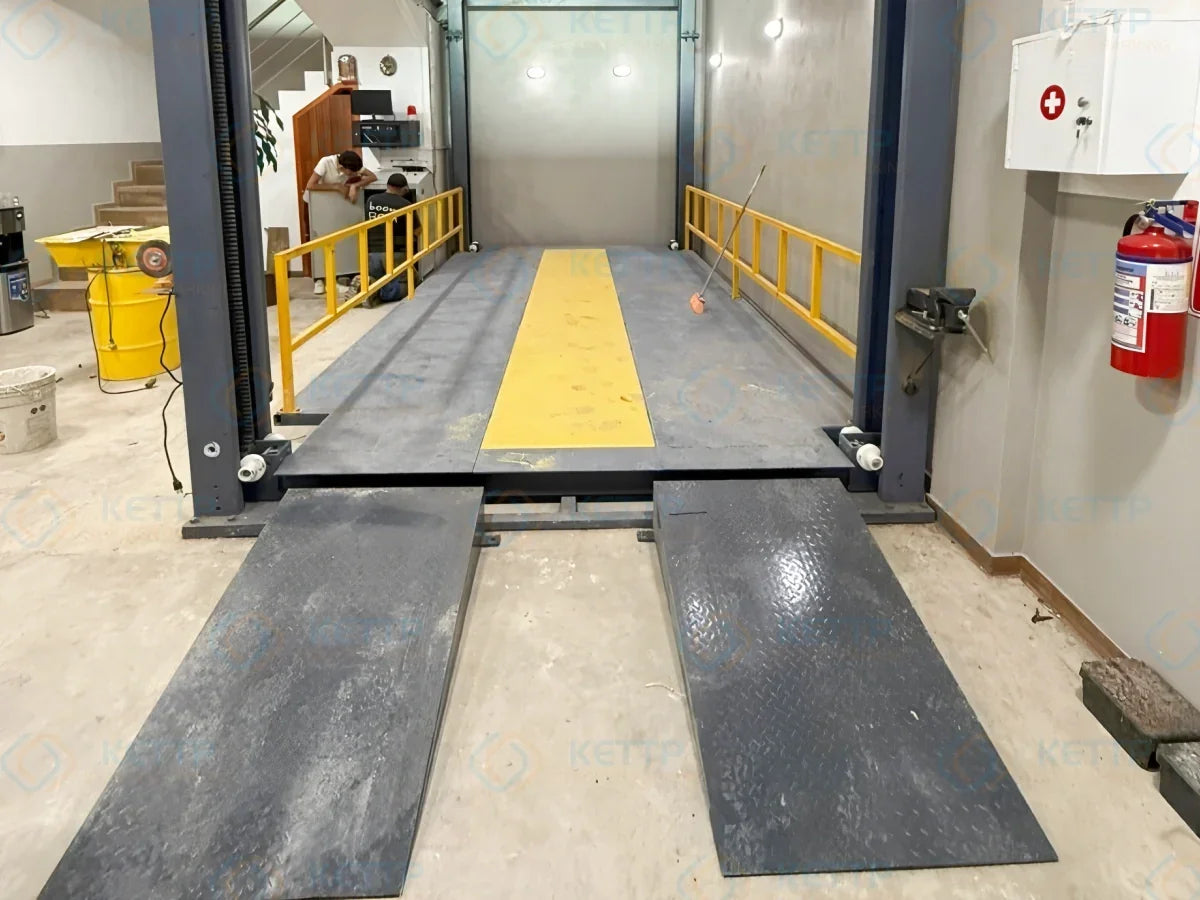

Anti-Slip Platform

Platform made of 4 mm checkered steel plate as standard; multiple material options available.

Flexible Layout Design

System dimensions can be custom-tailored to suit project conditions and specific customer requirements.

Professional Packaging & Delivery

Carefully packed components with clear labeling to ensure safe transportation and easy installation.

Multiple Applications

Suitable for heavy-duty vehicles and goods, for both indoor and outdoor installations.

Low Operating Cost

Zero electricity consumption during lowering and a low maintenance rate, reducing long-term operating expenses.

SPECIFICATIONS

Specifications
Item Specification
Model Number FF
Lifting Capacity 2000 – 7000 kg
Lifting Height 2000 – 15,000 mm
Platform Length 2000 – 7000 mm
Platform Width 2000 – 5000 mm
Platform Material Diamond steel sheet (standard) / 4 mm aluminum steel sheet (optional)
Drive Mode Hydraulic cylinder
Operation Push-button control (standard) / Remote controller (optional)
Power Pack 4.0 kW or above
Power Supply 220–480 V, 50/60 Hz, 3-phase
Lifting Speed 4 m/min
Safety Devices Mechanical anti-falling locks
Surface Finishing Powder coating
Color Customized
