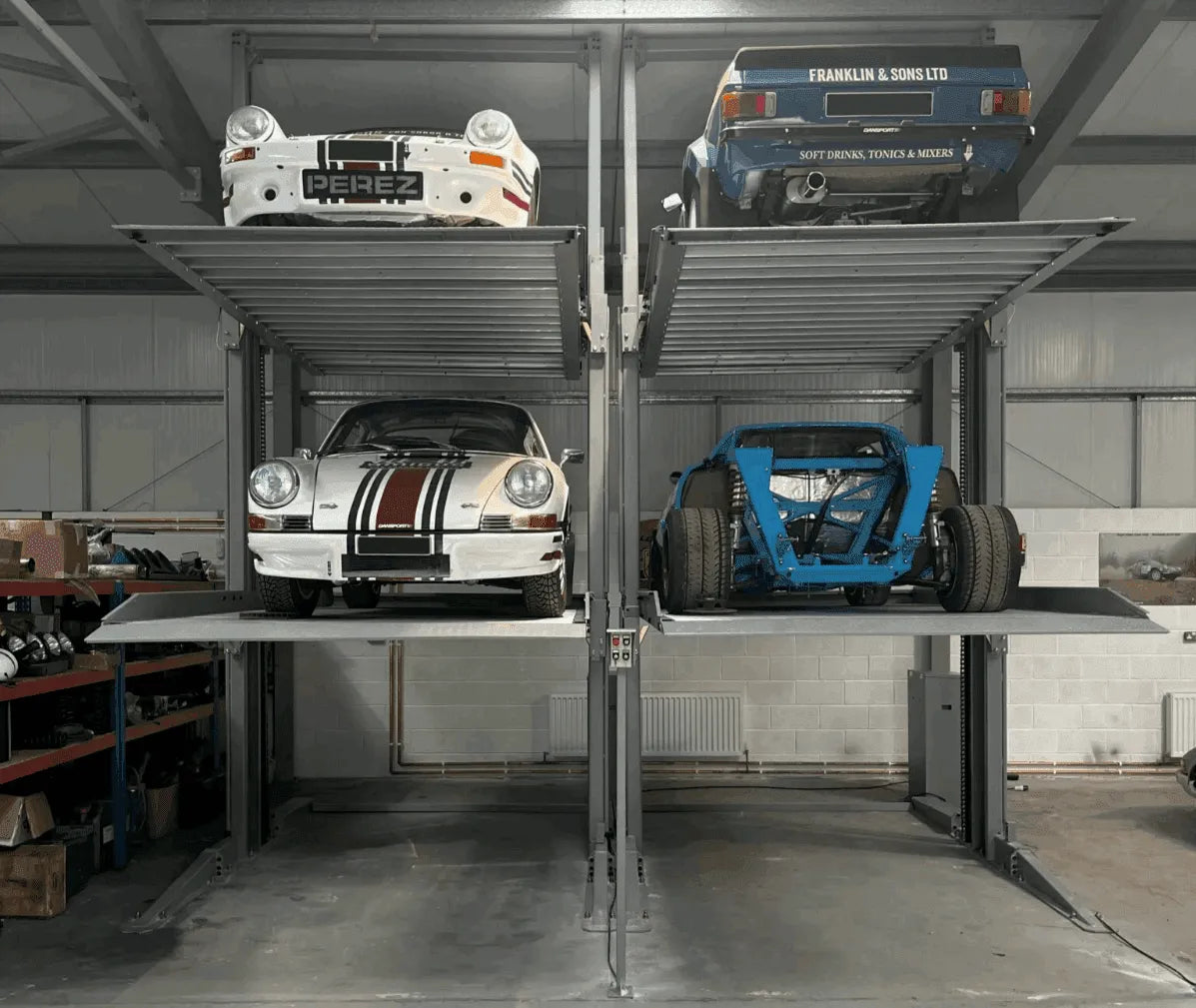

2 post triple stacker parking lift(3T)
Introducing the 2 post triple stacker 3T 2000 model, a versatile 3-level two-post car stacker designed to maximize parking capacity while minimizing space requirements. This innovative solution allows for the parking of three vehicles in a single unit, with a capacity of 2000KG per platform. Ideal for accommodating large SUVs on the ground level and two sedans in the air, the 3T 2000 2 post triple stacker offers unmatched convenience and efficiency.
Check out Kettp Triple Stacker parking solutions.
2 Post Triple Stacker Features:
1. Enhanced Safety: Positioning anti-falling locks are installed in both posts to ensure maximum safety during operation, providing peace of mind for users.
2. Efficient Lifting: Equipped with a double cylinder and chain mechanism, the lift offers faster lifting speeds and smoother operation, enhancing overall efficiency and performance.
3. Convenient Parking: Designed for both head-in and back-in parking, offering greater convenience for vehicle door access and maneuverability.
4. Automatic Shut-off: The lift features an automatic shut-off key switch that activates when the operator's hand releases, enhancing safety and preventing accidents.
5. Structural Stability: Three connection rods are strategically placed beneath the platform to enhance the overall structural strength, ensuring stability and durability.
6. Corrosion Protection: The platform is fitted with a galvanized wave plate, providing durability and corrosion protection, extending the lifespan of the lift.
7. Synchronization System: 2 post triple stacker Utilizes a combined hydraulic and chain synchronization system to ensure balance from left to right, optimizing performance and reliability.
8. Reinforced Structure: Built with a reinforced structure, the lift offers more stable working conditions, even under heavy loads, providing long-lasting durability.
9. Hydraulic Overloading Protection: Equipped with hydraulic overloading protection, the lift safeguards against potential overload situations, ensuring safe and reliable operation.
10. Outdoor Installation: Designed for outdoor use, the lift can be installed with additional configurations. Contact our sales team for more information on outdoor installation options.
11. Space Optimization: With its three-level design, the 3T 2000 maximizes parking capacity, making it perfect for car storage, public parking facilities, and apartment complexes where space is limited.
12. Versatile Parking: The ground level provides ample space for parking large SUVs, while the upper levels are ideal for accommodating sedans, offering flexibility and convenience for users.
13. Easy Installation: The 3T 2000 features a user-friendly design that allows for easy installation, reducing downtime and ensuring a hassle-free setup process.
14. Multiple Safety Features: Equipped with comprehensive safety features, including mechanical locks, hydraulic overloading protection, and reinforced structures, the 3T 2000 prioritizes user safety at all times.
15. Wide Application: Suitable for a wide range of applications, including car storage facilities, public parking garages, and apartment complexes, the 3T 2000 2 post triple stacker offers a versatile solution for various parking needs.
3 Car Stacker PARAMETERS
|
MODEL
|
3T 2000 2 post triple stacker
|
|
LIFTING HEIGHT
|
2000/1735MM
|
|
RATED CAPACITY
|
2000KG
|
|
PLATFORM LENGTH
|
4500MM
|
|
MOTOR POWER
|
4KW
|
|
EQUIPMENT SIZE(MM)
|
4500X2575X6009
|
|
AVAILABLE CAR DIAMENTION(MM)
|
5000 X 1900 X 1900/1600
|
|
POWER SUPPLY
|
110-450V, 50 OR 60HZ, 3 PHASES
|
|
OPERATION
|
KEY SWITCH/PUSH BUTTON
|
|
OPERATION POWER
|
24 V
|
|
MECHANICAL LOCK
|
POSITION ANTI-FALLING LOCK
|
|
LOCK RELEASE
|
AUTOMATIC ELECTRIC
|
|
LIFING TIME
|
100 SECONDS
|
|
LOWER TIME
|
100 SECONDS (DEPENDS ON WEIGHT)
|
|
FIINISHING
|
POWDER COATING/PAINT/HOT DIP GALVANIZED.
|
DIY Your 3 car stacker Lift for a Unique Market Advantage:
Mechanical Structure:
1. Customizable Color: Choose from a wide range of colors according to RAL color numbers, allowing you to match your lift to your branding or personal preference, at no extra cost.
2. Adjustable Platform Width: Tailor the platform width to fit your parking needs, whether you require more spacious parking or have limited land space available.
3. Flexible Control Arm: Opt for a control arm on either the left or right post, depending on your convenience, at no additional charge.
4. Adjustable Lift Height: Customize the 2 post triple stacker height to accommodate different vehicle sizes or installation requirements, ensuring maximum versatility, at no extra cost.
5. Rust Protection: Opt for hot-dip galvanized structures and screw nuts, as well as thickened galvanized platform sheets, for enhanced rust protection, ideal for outdoor installations.
6. Outdoor Power Pack Cover: Ensure durability and protection with an optional power pack cover designed specifically for outdoor use.
7. Galvanized Components: All screw nuts are hot-dip galvanized for rust protection, ensuring longevity and reliability.
8. Thickened Platform Sheet: Choose a thickened galvanized platform sheet for added durability and strength, capable of withstanding heavy loads.
Electric Control:
1. Premium Electric Control: Enjoy the reliability and quality of Schneider Electric for your electric control system, ensuring optimal performance and longevity.
2. Customizable Power Supply: Tailor the power supply to meet local requirements, providing compatibility and safety in any location, at no additional cost.
3. Remote Control: Conveniently operate your lift from a distance with the option for remote control, adding an extra layer of convenience and ease of use.
4. Weatherproof Design: Opt for IP65-rated electric control for outdoor installations, ensuring durability and reliability even in harsh weather conditions.
Hydraulic System:
1. Durable Steel Oil Tank: Benefit from a durable steel oil tank, provided at no extra cost, for added strength and longevity.
2. Safety Features: Enhance safety with the option for an anti-explosion valve, ensuring reliable operation and protection against potential hazards.
With our Customizable 2 post triple stacker lift, you're not just purchasing a product – you're investing in a tailored 3 car storage lift designed to meet your exact specifications. Elevate your parking experience with unmatched flexibility, convenience, and reliability. Contact us today to create your personalized 2 post triple stacker solution.
