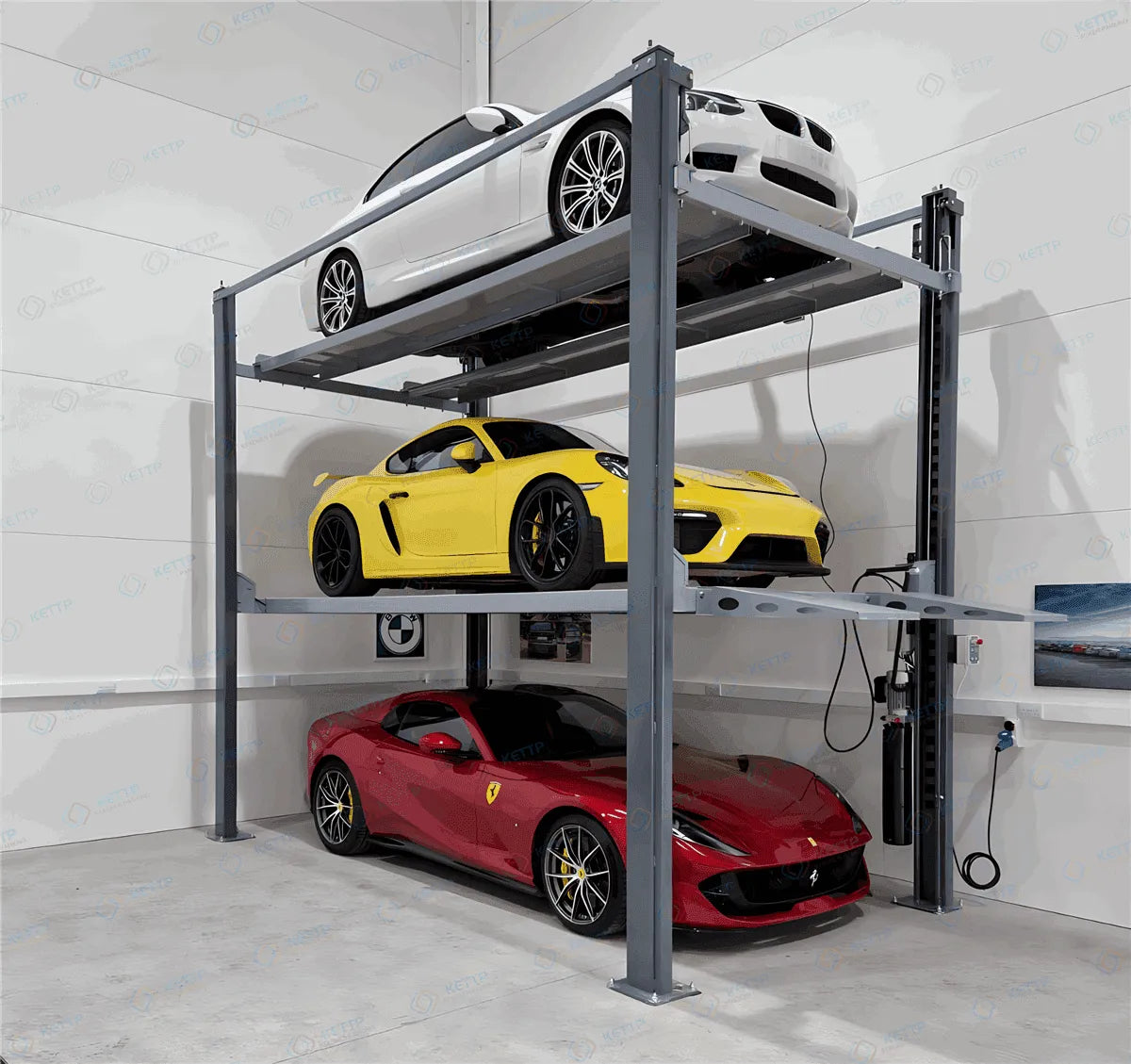

Triple car stacker parking lift - 3F
Introducing the 3F Model Triple Car Stacker, a cutting-edge solution for car stacker parking. This triple car stacker is designed for efficient parking of up to three vehicles within a single unit. Each platform has a robust capacity of 2500KG and customizable level heights, making it perfect for various vehicle sizes. Driven by a reliable hydraulic cylinder and steel rope system, the 3F Model triple car stacker parking is an ideal choice for car parks, public parking facilities, and apartment complexes. This versatile triple car stacking system maximizes parking space and enhances operational efficiency.
Click here to find all Kettp triple car stakcers.
Key Features of the 3F Triple Car Stacker
1. Full Range Mechanical Locks for Safety
o Ensure secure vehicle positioning at various heights with full range mechanical locks in all four posts, making the car stacker lift safe and stable for both parking and maintenance.
2. Single Cylinder & Steel Rope System
o The efficient single cylinder and steel rope mechanism provide faster lifting speeds and smoother operation, optimizing the car stacker hoist for user experience and efficiency.
3. Automatic Shut-off Button Switch
o The automatic shut-off button switch immediately halts operation when the button is released, preventing accidental activation and ensuring safety.
4. Electromagnetic Lock Release
o The system incorporates an automatic locking mechanism with latches inside the ladders, which are released electromagnetically via a push button on the operation box for secure and easy operation.
5. Durable Diamond Plate Runways and Ramps
o Constructed with diamond plate material, these runways and ramps offer enhanced durability and slip resistance, ensuring safe movement of vehicles.
6. Reinforced Structure
o Engineered with reinforced components, the 3F model offers a sturdy and stable structure capable of withstanding rigorous use in various automotive settings, making it an ideal garage car stacker.
7. Hydraulic Overloading Protection
o Built-in hydraulic overloading protection safeguards the lift from damage caused by excessive weight, ensuring peace of mind and extending the lifespan of your auto stacker car lift.
8. Outdoor Installation Option
o The 3F model is available with additional configurations for outdoor installation. Contact our sales team for more information on customization options to ensure reliable performance in challenging environments.
Triple Car Stacker Parking lift PARAMETERS
|
MODEL
|
3F 1800
|
3F 2100
|
|
LIFTING HEIGHT
|
1800MM
|
2100MM
|
|
PLATFORM LENGTH
|
4948MM
|
5370MM
|
|
MOTOR POWER
|
2.2KW
|
2.2KW
|
|
EQUIPMENT SIZE(MM)
|
5862X2576X4368
|
6284X2576X4904
|
|
AVAILABLE CAR DIAMENTION(MM)
|
5000 X 1900 X 1750/2050
|
|
RATED CAPACITY
|
2500KG
|
|
POWER SUPPLY
|
110-450V, 50 OR 60HZ, 3 PHASES
|
|
OPERATION
|
KEY SWITCH/PUSH BUTTON
|
|
OPERATION POWER
|
24 V
|
|
MECHANICAL LOCK
|
DYNAMIC MECHANICAL LOCK
|
|
LOCK RELEASE
|
AUTOMATIC ELECTRIC
|
|
LIFING TIME
|
90 SECONDS
|
|
LOWER TIME
|
120 SECONDS (DEPENDS ON WEIGHT)
|
|
FIINISHING
|
POWDER COATING/PAINT/HOT DIP GALVANIZED.
|
Triple Car Stacker Customization Options
1. Customizable Color
o Personalize your car stacker with any color from the RAL color number system at no additional cost, allowing it to match your brand or aesthetic perfectly.
2. Adjustable Platform Width
o Choose a wider platform for more convenient parking or a narrower one to fit tighter spaces. This flexibility ensures the car park stacker can be tailored to your specific spatial requirements.
3. Flexible Control Box Placement
o Position the control box on either the left or right post for convenience, enhancing ease of use and operational efficiency.
4. Customizable Lift Height
o Tailor the lift height to meet your needs, accommodating different vehicle sizes and service requirements for optimal flexibility.
5. Optional Middle Steel Plate or Wave Plate Cover
o Select between a middle steel plate cover or a wave plate cover to suit your preferences, enhancing the lift’s functionality and aesthetics.
6. Optional Lateral Protection Plate
o Add lateral protection plates for additional safety and durability, providing extra protection and stability.
7. Optional Aluminum Ramp
o Opt for an aluminum ramp to reduce weight and improve ease of use, enhancing the lift’s overall performance and convenience.
8. Hot-Dip Galvanized Structure
o Ensure long-lasting durability with a hot-dip galvanized structure that provides superior rust protection, making the lift suitable for outdoor installations.
9. Outdoor Power Pack Cover
o Protect your lift’s power pack with a cover designed for outdoor use, shielding it from the elements and prolonging its lifespan.
10. Hot-Dip Galvanized Screw Nuts
o Utilize hot-dip galvanized screw nuts throughout the lift for enhanced rust protection, ensuring longevity and reliability even in outdoor environments.
11. Thickened Galvanized Platform Sheet
o Increase the durability and load-bearing capacity of the platform with a thickened galvanized sheet, ensuring long-term stability and performance.
Advanced Electric Control System
1. Schneider Electric Components
o The electric control system uses Schneider Electric components, ensuring top-notch quality and reliable performance.
2. Customizable Power Supply
o Adapt the power supply to meet local requirements at no additional cost, ensuring compatibility and compliance with regional standards.
3. IP65 Electric Control for Outdoor Use
o Opt for IP65-rated electric control components for outdoor installations, offering protection against dust and water ingress for reliable performance in challenging environments.
Reliable Hydraulic System
1. Steel Oil Tank
o Choose a steel oil tank at no extra cost for enhanced durability and corrosion resistance, ensuring a long-lasting hydraulic system.
2. Anti-Explosion Valve
o Include an anti-explosion valve for added safety, minimizing the risk of hydraulic system failure due to pressure buildup and ensuring safe operation in all conditions.
Why Choose the 3F Triple Car Stacker?
Whether you’re looking to enhance your triple car stacker parking efficiency or need a reliable garage car stacker for your apartment complex, the 3F model provides a versatile and robust solution. Explore our auto stackers for sale and discover how the 3F triple car stacker model can transform your parking space.
Call to Action
Contact our sales team today to customize your 3F Model Car Stacker and take your car park stacker solution to the next level with unparalleled efficiency and reliability.
