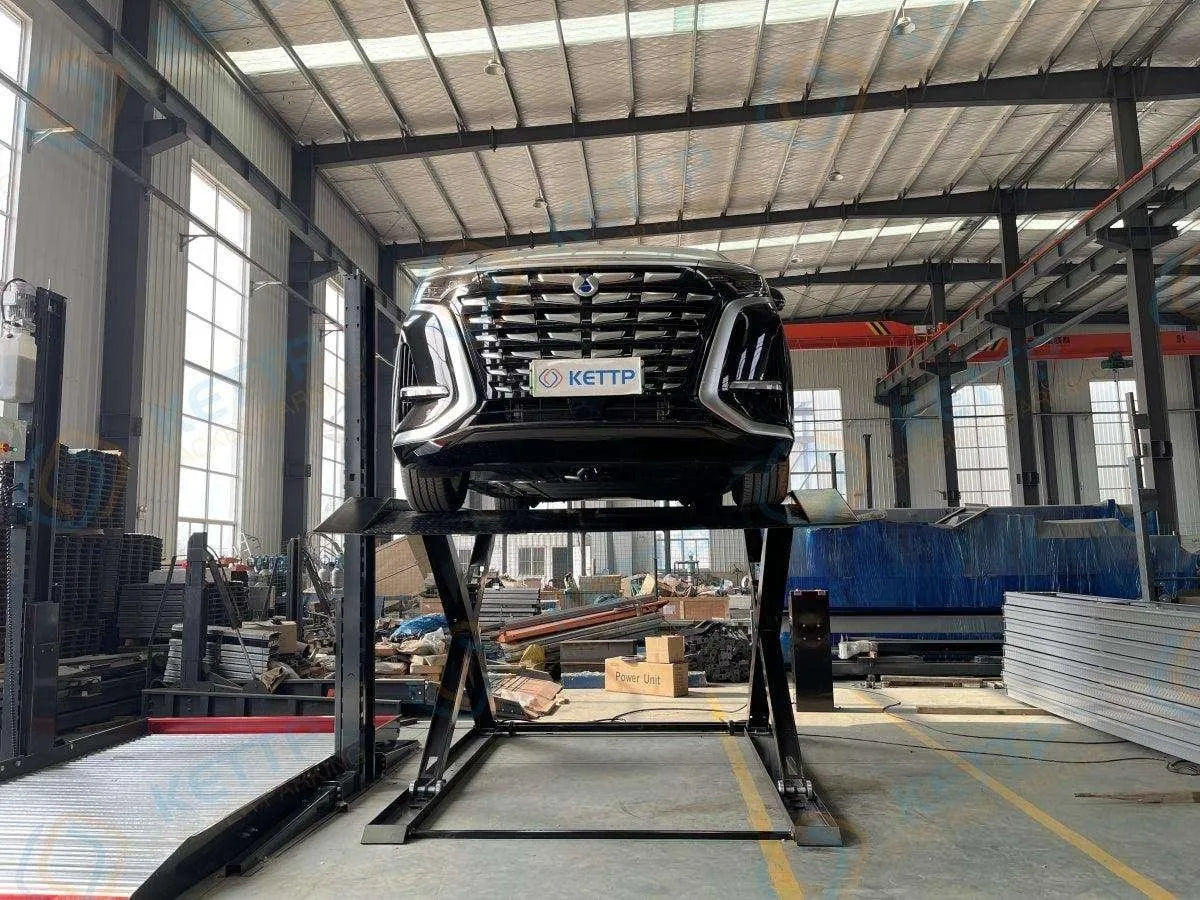

Autostacker platform parking lift- 2SC

Autostacker platform parking lift Features:

1.   Dynamic Mechanical Locks: Equipped with dynamic mechanical locks on both sides for enhanced safety, ensuring secure parking at all times.

2.   Easy Installation: The 2SC lift is designed for easy installation, with no special concrete foundation required. This feature simplifies the installation process and reduces setup time.

3.   Automatic Lock Release: Enjoy the convenience of automatic lock release, making it effortless to retrieve your vehicle after parking.

4.   No Post Erecting: After the platform descends, there is no need for post erecting, streamlining the parking process and saving time.

5.   Double Cylinder Drive: Powered by a double cylinder directly driving system, the 2SC lift delivers smooth and efficient operation, ensuring reliable performance with every use.

6.   Reinforced Structure: The lift is reinforced with a robust structure to provide stability and durability, even under heavy loads.

7.   Hydraulic Overloading Protection: Built-in hydraulic overloading protection safeguards against potential overload situations, enhancing safety and reliability.

8.   Full-Width Platform: The full-width platform features a gradual sloping design, reducing entry ramp height and providing easy access for vehicles of all sizes.

9.   Outdoor Installation: The autostacker is suitable for outdoor installation with additional configuration options. Please contact our sales team for more information on outdoor setup requirements.

Autostacker 2SC PARAMETERS
MODEL 2SC 2000
LIFTING HEIGHT 2000MM
RATED CAPACITY 2000KG
PLATFORM LENGTH 4010MM
MOTOR POWER 2.2KW
EQUIPMENT SIZE(MM) 4010X2569X2180
AVAILABLE CAR DIAMENTION(MM) 5000 X 1900 X 1950
POWER SUPPLY 110-450V, 50 OR 60HZ, 1 OR 3 PHASES
OPERATIONKEY SWITCH/PUSH BUTTON
OPERATION POWER 24 V
MECHANICAL LOCK Dynaic LOCK

LOCK RELEASE AUTO LOCK
LIFING TIME 40 SECONDS
LOWER TIME 35 SECONDS (DEPENDS ON WEIGHT)

FINISHING POWDER COATING

DIY your autostacker parking lift

Mechanical Structure:

1.   Customizable Color: Choose from a wide range of colors according to RAL color numbers, allowing you to personalize your lift to match your preferences or branding, at no extra cost.

2.   Adjustable Platform Width: Tailor the platform width to accommodate more spacious parking or narrow land spaces, providing flexibility to meet diverse needs.

3.   Control Arm Options: Select the control arm location either in front of the lift or opt for an independent control box, offering convenience and versatility in operation.

4.   Adjustable Lift Height: Customize the lift height to suit different vehicles or installation requirements, ensuring maximum adaptability to various settings, at no additional charge.

5.   Outdoor Power Pack Cover: Ensure durability and protection with an optional power pack cover designed specifically for outdoor use, safeguarding against environmental elements.

6.   Rust Protection: All screw nuts are hot dip galvanized for enhanced rust protection, ensuring longevity and durability, particularly for outdoor installations.

7.   Thickened Galvanized Platform Sheet: Opt for a thickened galvanized platform sheet to reinforce durability and resistance against wear and tear.

Electric Control:

1.   Premium Electric Control: Enjoy the reliability and quality of Schneider Electric for your electric control system, ensuring optimal performance and longevity.

2.   Customizable Power Supply: Tailor the power supply to meet local requirements, providing compatibility and safety in any location, at no extra charge.

3.   Remote Control: Conveniently operate your lift from a distance with the option for remote control, adding an extra layer of convenience and ease of use.

4.   Weatherproof Design: Choose IP65-rated electric control for outdoor installations, ensuring durability and reliability even in harsh weather conditions.

Hydraulic System:

1.   Durable Steel Oil Tank: Benefit from a durable steel oil tank provided at no extra cost, enhancing strength and longevity for reliable performance.

2.   Safety Features: Enhance safety with the option for an anti-explosion valve, ensuring reliable operation and protection against potential hazards.
