2 levels 2 post parking lift - Double cylinder (2TD)

2 Post Parking lift Key Features

1. Full-Range Mechanical Locks: Secure positioning at any height for peace of mind.
2. Double Cylinder & Double Balance Chain: Ensures synchronized lifting and lowering.
3. Shared Post Design: Saves space and reduces installation costs for optimized efficiency.
4. Reinforced Structure: Built for durability and stability under heavy loads.
5. Hydraulic Overloading Protection: Safeguards the lift against excessive weight.
6. Head-In and Back-In Compatibility: Versatile access for convenient vehicle handling.
7. PCB Wiring System: Simplifies installation with reliable electrical performance.
8. Automatic Shut-Off Key Switch: Enhances operator safety with instant stop functionality.
9. Outdoor Installation Option: Offers flexibility for indoor and outdoor applications.
10. Effortless Installation: Streamlined assembly process for quick setup.

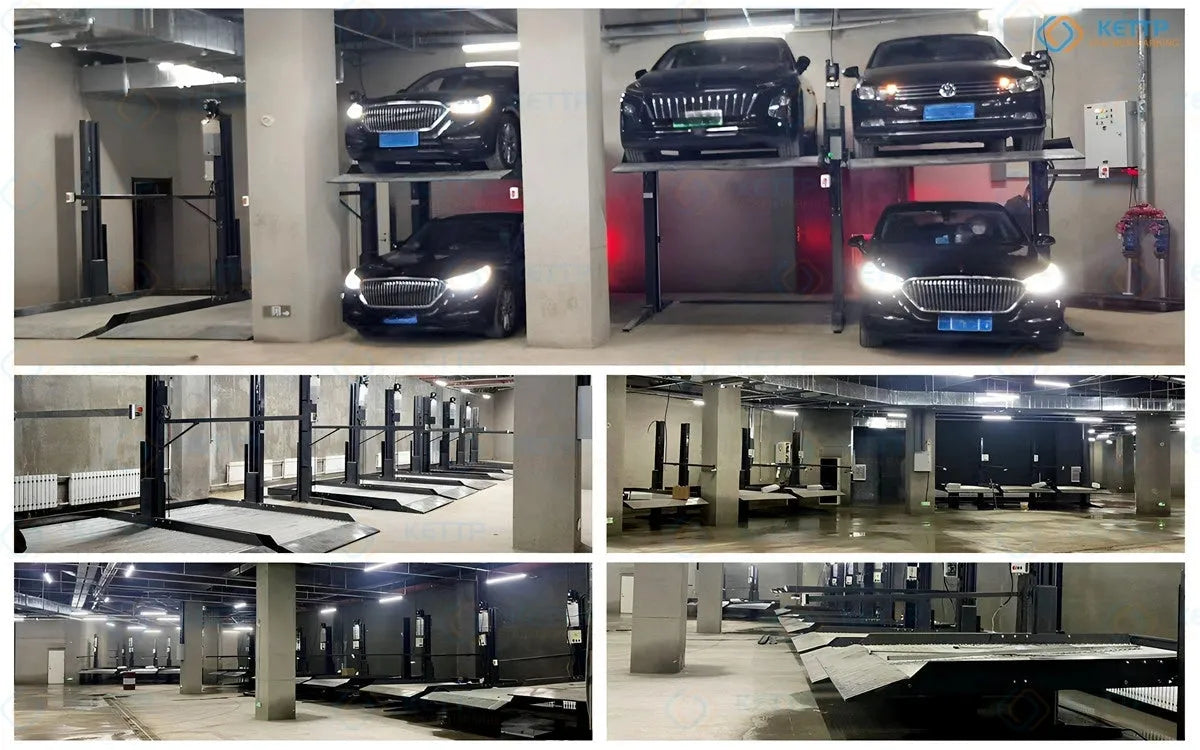

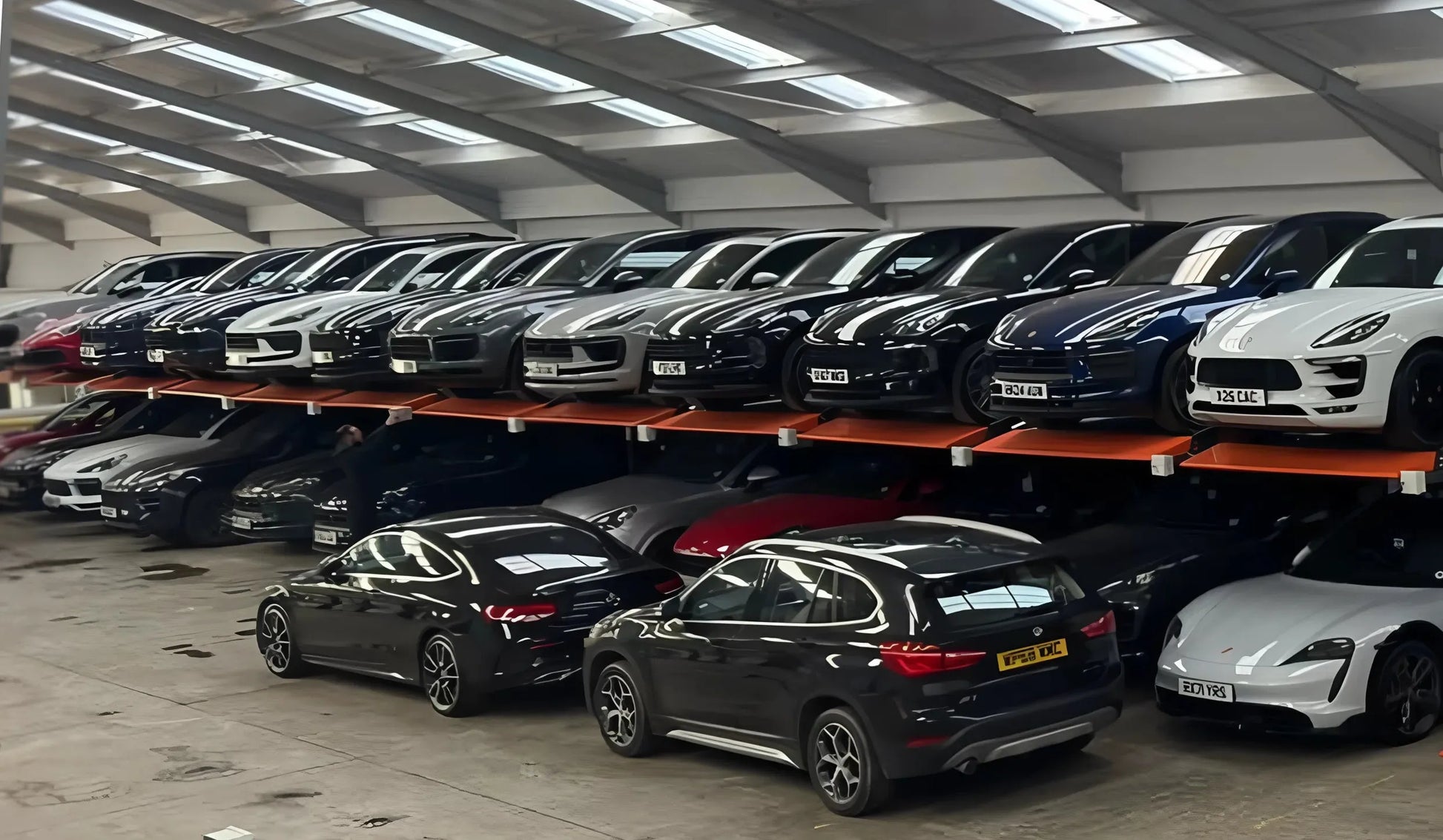

2 Post Parking lift Versatile and Space-Saving

The 2TD series functions as a 2-post storage lift, 2-post stackable parking system, and 2-post vehicle storage lift,providing multiple options for parking and storage. With a 2100mm lifting height, these lifts offer sufficient clearance for large vehicles, making them
ideal for residential garages, commercial parking lots, and automotive workshops.

Why Choose the 2TD 2 post parking lift
Series?

1. Optimized Space Utilization:
   Perfect for 2 post automotive storage lift needs.
2. Enhanced Safety: Equipped with
   multiple features for secure operation.
3. Durability and Performance: Built
   to withstand rigorous use over time.
4. Outdoor and Indoor Applications:
   Flexible configurations to suit your environment.
5. The 2TD series redefines convenience,
   efficiency, and safety in parking systems. Whether you need a 2-post stackable parking solution or a 2-post car stacker, the 2TD 2300,
   2TD 2700, and 2TD 3200 deliver exceptional value for both residential and commercial applications.

1. MODEL 2TD 2300/2TD 2700/2TD 3200
2. LIFTING HEIGHT 2100MM
3. RATED CAPACITY 2300KG/2700KG/3200KG
4. PLATFORM LENGTH 3914MM/4138MM/4138MM
5. MOTOR POWER 2.2KW/2.2KW/3KW
6. EQUIPMENT SIZE(MM) 3914X2559X3235/4138X2559X3525/4138X2562X3525
7. AVAILABLE CAR DIAMENTION(MM) 5000 X 1900 X 2050
8. POWER SUPPLY 110-450V, 50 OR 60HZ, 1 OR 3 PHASES
9. OPERATION KEY SWITCH/PUSH BUTTON
10. OPERATION POWER 24 V
11. MECHANICAL LOCK Dynamic 17 LOCK STAGES
12. LOCK RELEASE AUTOMATIC ELECTRIC
13. LIFING TIME 60 SECONDS
14. LOWER TIME (60 SECONDS) DEPENDS ON WEIGHT
15. FIINISHING POWDER COATING/PAINT/HOT DIP GALVANIZED.

DIY Customization for Your 2 post parking Lift: Mechanical and Electric Control Features

Differentiate your product in the market with these innovative 2 post parking lift features, incorporating advanced mchanical, electric, and hydraulic options:

2 Post Parking Lift Mechanical Structure

Customizable Color: Offer RAL color options at no additional cost for personalized branding and aesthetics.

Adjustable Platform Width: Flexible widths accommodate various parking spaces, from compact to spacious.

Flexible Control Arm Placement: Choose left or right post placement to suit workspace layout, free of
charge.

Top-Mounted Control Arm: Eliminate user inconvenience with a headache-free top-mounted control arm.

Height-Adjustable Lift: Adapt lift heights for different vehicle types and service needs at no extra cost.

Hot-Dip Galvanized Structure: Provide superior rust protection for outdoor use with optional galvanization.

Power Pack Cover: Shield the power pack from outdoor elements for increased reliability.

Galvanized Screw Nuts: Use hot-dip galvanized nuts for enhanced durability in outdoor nvironments.

Thickened Galvanized Platform Sheet: Strengthen load capacity with thickened, rust-resistant platform sheets.

Electric Control Innovations

Schneider Electric Components: High-quality components ensure reliable, long-term performance.

Customizable Power Supply: Localize power supply to meet regional standards at no extra cost.

Remote Control: Operate lifts remotely for greater convenience and efficiency.

Lock Button Option: Add or exclude a lock button feature based on user preference.

IP65 Electric Control: Dust- and water-resistant IP65-rated controls for reliable outdoor performance.

Hydraulic System Features

Steel Oil Tank: Opt for a durable, corrosion-resistant steel oil tank for long-lasting reliability.

Anti-Explosion Valve: Ensure safe hydraulic operation with built-in anti-explosion valve technology.
