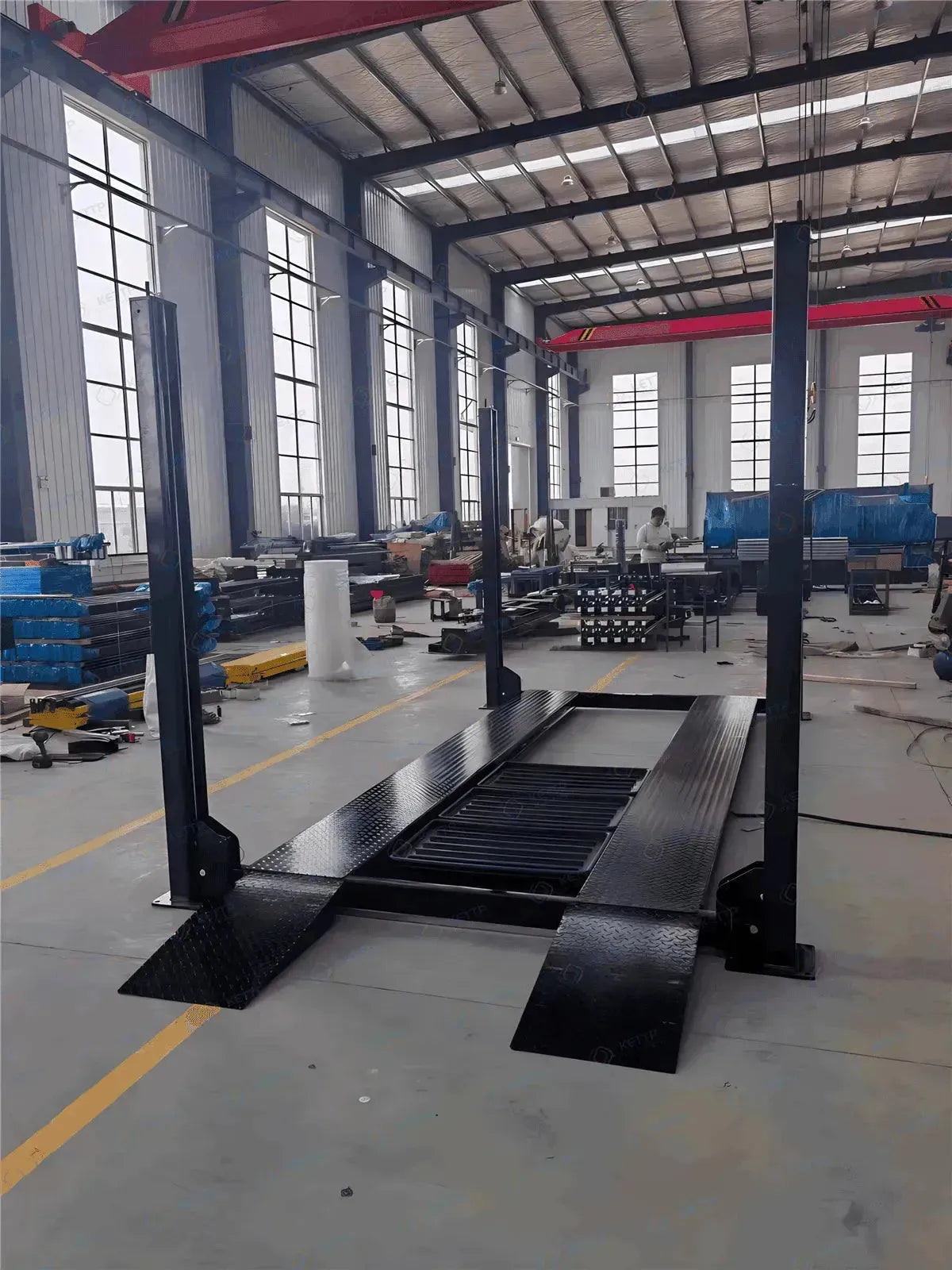

2 levels 4 post STRONG parking lift (2FS)

2FS Features:

1.   Full Range Mechanical Locks: Equipped with full-range mechanical locks in all four posts, the 2FS ensures comprehensive safety by allowing vehicles to be securely locked in at different heights. This feature provides peace of mind for users, knowing their vehicles are safely positioned.

2.   Double Lock Adoption: For enhanced security and stability, the 2FS features a double lock system. This additional layer of locking mechanism further reinforces the safety of parked vehicles.

3.   Manual Lock Release with Ladder Lock Design: The lift includes a manual lock release mechanism, featuring a ladder lock design for easy and efficient unlocking when necessary. This design ensures user-friendly operation and maintenance.

4.   Mobility with Caster Kits: With caster kits installed, the 2FS can be easily moved to different locations within the parking facility. This mobility feature adds flexibility and convenience for reconfiguring parking spaces as needed.

5.   Diamond Plate Runways and Ramps: Constructed with diamond plate runways and ramps, the 2FS offers reliable traction and durability for vehicles during parking and maneuvering. This ensures safe and smooth operation for users.

6.   Reliable and Strong Construction: Built with high-quality materials and precision engineering, the 2FS is renowned for its reliability and strength. It is designed to withstand heavy use and provide long-lasting performance in various parking environments.

7.   Hydraulic Overloading Protection: The lift is equipped with hydraulic overloading protection, safeguarding against potential overload situations. This feature enhances safety and reliability during operation, preventing damage to the lift and vehicles.

8.   Complimentary Plastic Oil Trays: Included with the lift are three plastic oil trays, provided free of charge. These trays help contain oil spills and drips, keeping the parking area clean and organized.

9.   Suitable for Residential and Commercial Use: Whether for private residences or commercial parking facilities, the 2FS is an ideal solution for maximizing parking capacity. Its versatility makes it suitable for various applications, catering to the needs of both residential and commercial users.

10.   Dual Vehicle Capacity: Designed to park two vehicles – one above the other – the 2FS maximizes parking space while ensuring optimal safety and stability for both vehicles.

11.   Variable Lift Heights: Different lift heights are available to accommodate various vehicle sizes and parking requirements, providing unmatched flexibility and versatility.

12.   Superior Strength: Built with the strongest materials and precision engineering, the 2FS is renowned for its exceptional strength and durability, ensuring reliable performance even in the most demanding parking environments.

13.   Customizable Options: Choose from a range of customizable options, including platform width, control box placement, and additional accessories, to tailor the 2FS to your exact specifications.

14.   Safety and Security: Equipped with advanced safety features, including full-range mechanical locks and hydraulic overloading protection, the 2FS prioritizes the safety and security of both vehicles and users.

15.   Versatile Application: Whether for residential or commercial use, the 2FS is the ideal solution for maximizing parking capacity and efficiency in a wide range of settings.

Conclusion: With its unparalleled strength, customizable features, and commitment to safety, the 2FS sets the benchmark for excellence in four-post parking lifts. Experience the ultimate in strength and reliability with the 2FS – your trusted partner in parking solutions.

MODEL 2FS 1800 2FS 2000 2FS 2100
LIFTING HEIGHT 1800MM 2000MM 2100MM

RATED CAPACITY 4000KG
PLATFORM LENGTH 4198MM 4598MM 4798MM
MOTOR POWER 2.2KW
AVAILABLE CAR DIAMENTION(MM) 5000X1900X1750/1950/2050
POWER SUPPLY 110-450V, 50 OR 60HZ, 1 OR 3 PHASES
OPERATION MANUAL/KEY SWITCH/PUSH BUTTON
MECHANICAL LOCK DYNAMIC LOCK
LOCK RELEASE MANUAL/AUTOMATIC ELECTRIC
LIFING TIME 45-60 SECONDS
LOWER TIME 40-50 SECONDS (DEPENDS ON WEIGHT)
FIINISHING POWDER COATING

DIY customization options available for the 2FS parking lift:

Mechanical Structure:

1.   Customizable Color: Personalize your parking lift with a wide range of colors available according to the RAL color number palette, free of charge. Choose a color that matches your branding or blends seamlessly with its surroundings.

2.   Adjustable Platform Width: Tailor the platform width to your specific parking needs. Opt for a wider platform for more convenient parking or a narrower one to fit into tight spaces, providing flexibility in usage.

3.   Flexible Control Box Placement: Choose the placement of the control box on either the left or right post, based on your convenience and preference, at no additional cost. This allows for ease of access during operation.

4.   Customizable Lift Height: Adjust the lift height to accommodate different vehicle sizes or installation requirements, providing flexibility and versatility in usage, free of charge.

5.   Outdoor Protection: Shield your lift from outdoor elements with a power pack cover, ensuring durability and longevity even in challenging weather conditions, enhancing its lifespan.

6.   Rust-Resistant Hardware: All screw nuts are hot-dip galvanized for enhanced rust protection, ensuring the longevity and reliability of your parking lift, even in outdoor settings, reducing maintenance needs.

7.   Optional Mobility Features: Enhance mobility with optional casters for easy movement of the lift, along with an optional jack tray for added convenience during maintenance, providing flexibility in usage.

8.   Additional Accessories: Choose from optional accessories such as a middle steel plate cover or wave plate cover, lateral protection plate, or aluminum ramp to further customize the lift to your requirements, enhancing its functionality and usability.

Electric Control:

1.   Customizable Power Supply: Adapt the power supply to meet local requirements, ensuring compatibility and safety, at no additional cost. This allows for seamless integration with existing electrical systems.

2.   Enhanced Control Features: Opt for an electric automatic lock, remote control functionality, or choose whether to keep or cancel the lock button, providing added convenience and control over your parking lift, tailored to your preferences.

3.   Weatherproof Design: Select IP65-rated electric control for outdoor installations, ensuring durability and reliability in harsh weather conditions, enhancing its performance and longevity in outdoor settings.

Hydraulic System:

1.   Durable Components: Benefit from a steel oil tank included at no extra cost, ensuring durability and reliability in hydraulic operations, minimizing the risk of leaks or malfunctions.

2.   Safety Features: Choose to include an optional anti-explosion valve for added safety and peace of mind during operation, providing an extra layer of protection against potential hazards.

With these extensive DIY customization options, you can create a parking lift that perfectly suits your needs and preferences, providing unmatched versatility, functionality, and durability.
