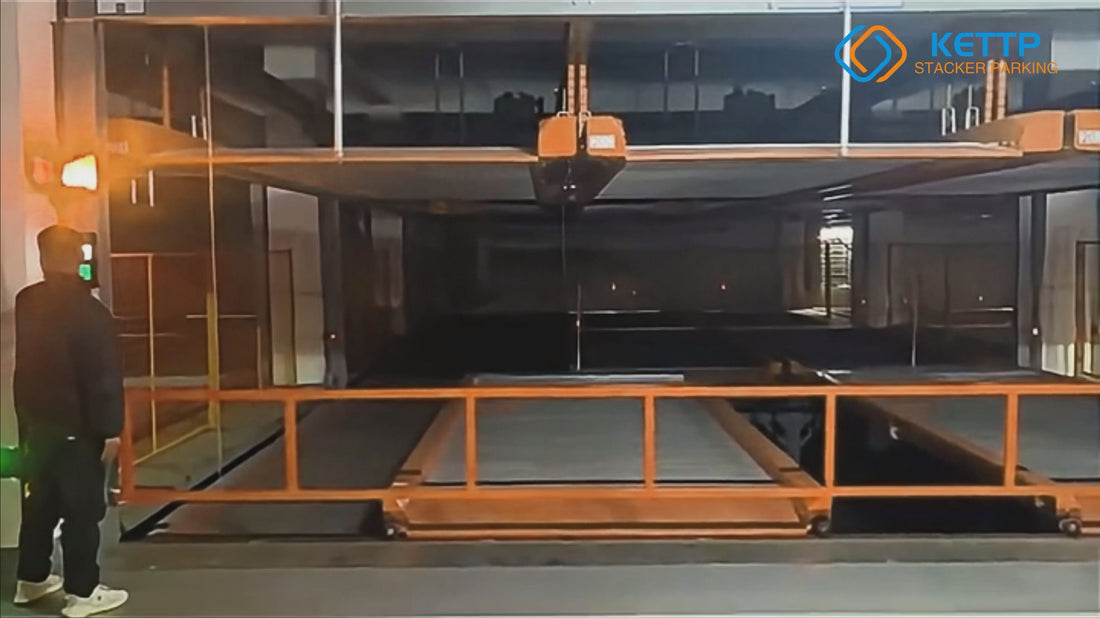

Pit Puzzle Parking System
Pit 1 level + Ground 2 levels • Tandem mechanical parking • Automatic parking
452
Total Spaces
2,500KG
Capacity/Platform
5,000×1,850×1,850mm
Max Vehicle Size
Omron PLC
Automatic Control
System: Pit 1 level · Ground 2 levels · Tandem
Highlights
H Steel Structure Motor Drive Omron PLC Control Anti-falling Lock- Automatic parking with PLC sequencing
- Robust tandem mechanical design
- 2,500KG per platform
- Supports vehicles up to 5,000×1,850×1,850mm
- H Steel frame for durability
- Integrated anti-falling lock
- Efficient motor drive
- Low-noise & low-maintenance
Quick Specifications
| System Type | Pit 1 level + Ground 2 levels (Tandem) |
|---|---|
| Total Capacity | 452 spaces |
| Rated Load | 2,500KG per platform |
| Vehicle Envelope | Length 5,000mm · Width 1,850mm · Height 1,850mm |
| Main Structure | H Steel |
| Drive | Motor drive |
| Control | Omron PLC, automatic |
| Safety | Anti-falling lock |
