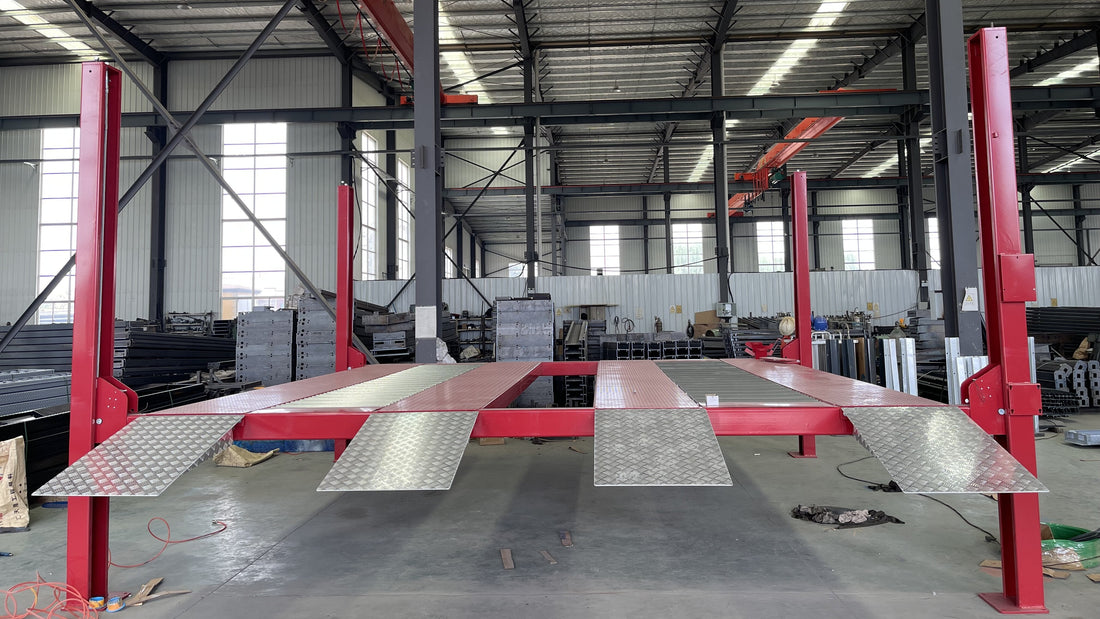

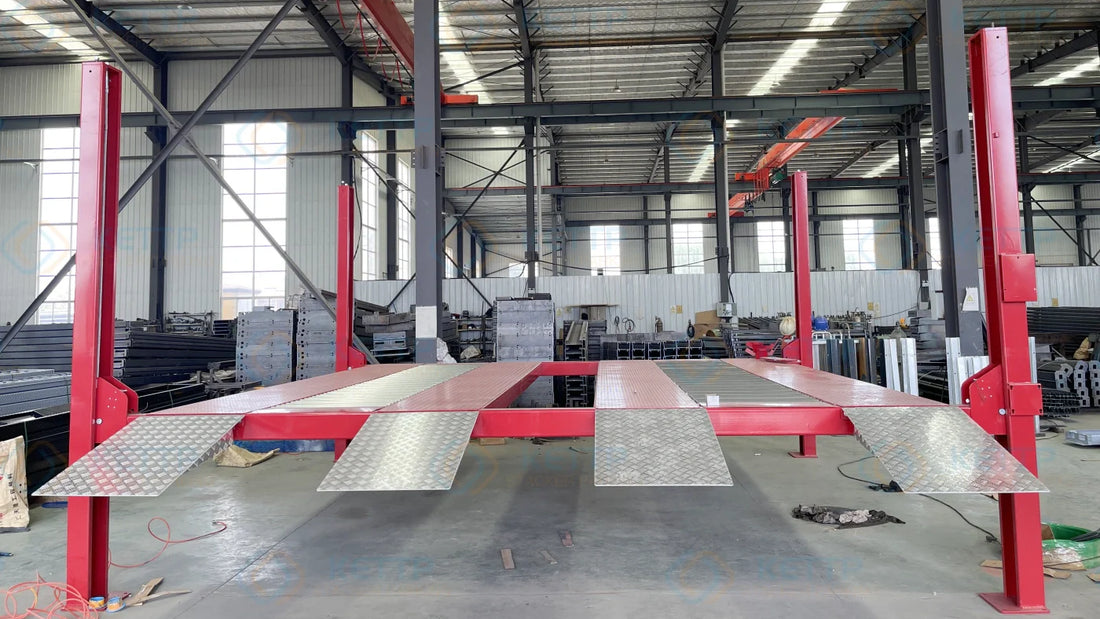

2FD Double-Wide 4-Post Lift — 2 Levels Installation and test.

2FD Double-Wide 4-Post Lift — 2 Levels Installation and test.

Kettp • Installation & Test

2FD Double-Wide 4-Post Lift — 2 Levels

Car storage parking • Hydraulic + steel rope • Full-range mechanical lock

4,000KG
Rated Capacity
1,800mm
Lift Height
5,000×1,900×1,750mm
Max Vehicle Size
2 Levels
Double-Wide Platform
System: 2FD • Double-Wide • 4-Post • 2 Levels

Highlights

Hydraulic + Steel Rope Transmission Full-Range Mechanical Lock Limit Switch Safety Optional Aluminum Alloy Ramp
  • Designed for car storage parking with stable 4-post support.
  • 4,000KG rated capacity for a wide range of vehicles.
  • Up to 1,800mm lift height to stack two vehicles efficiently.
  • Vehicle envelope: 5,000×1,900×1,750mm (L×W×H).
  • Hydraulic power with steel rope synchronization for smooth travel.
  • Full-range mechanical locking for every height step.
  • Limit switch to prevent over-travel and enhance safety.
  • Optional aluminum alloy ramp for lighter, corrosion-resistant access.
View Product

Quick Specifications

Model 2FD, Double-Wide, 4-Post, 2 Levels
Application Car storage parking
Rated Capacity 4,000KG
Lift Height 1,800mm
Available Vehicle Size Length 5,000mm · Width 1,900mm · Height 1,750mm
Transmission Hydraulic + steel rope
Safety Full-range mechanical lock, limit switch
Ramp (Optional) Aluminum alloy
Finish Industrial coating (color customizable)
