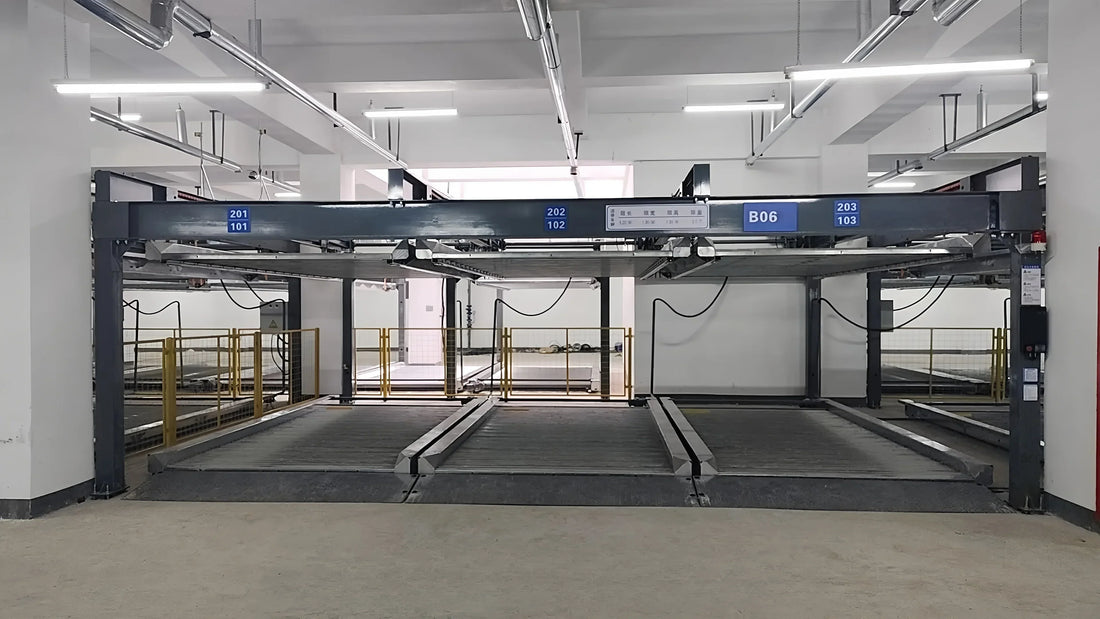

2-Level Puzzle Parking System
Basement Use • Mechanical Parking • Automatic Parking
211
Total Spaces
2,500KG
Capacity/Platform
5,000×1,850×2,050mm
Max Vehicle Size
Omron PLC
Automatic Control
System: 2-Level • Basement Use • Mechanical
Highlights
H Steel Structure Motor Drive Omron PLC Control Anti-falling Lock- Automatic parking with PLC sequencing
- Supports 211 vehicles efficiently
- 2,500KG per platform
- Supports vehicles up to 5,000×1,850×2,050mm
- Durable H Steel frame
- Integrated anti-falling lock
- Motor-driven smooth operation
- Low-noise & low-maintenance
Quick Specifications
| System Type | 2-Level Puzzle (Basement Mechanical) |
|---|---|
| Total Capacity | 211 spaces |
| Rated Load | 2,500KG per platform |
| Vehicle Envelope | Length 5,000mm · Width 1,850mm · Height 2,050mm |
| Main Structure | H Steel |
| Drive | Motor drive |
| Control | Omron PLC, automatic |
| Safety | Anti-falling lock |
